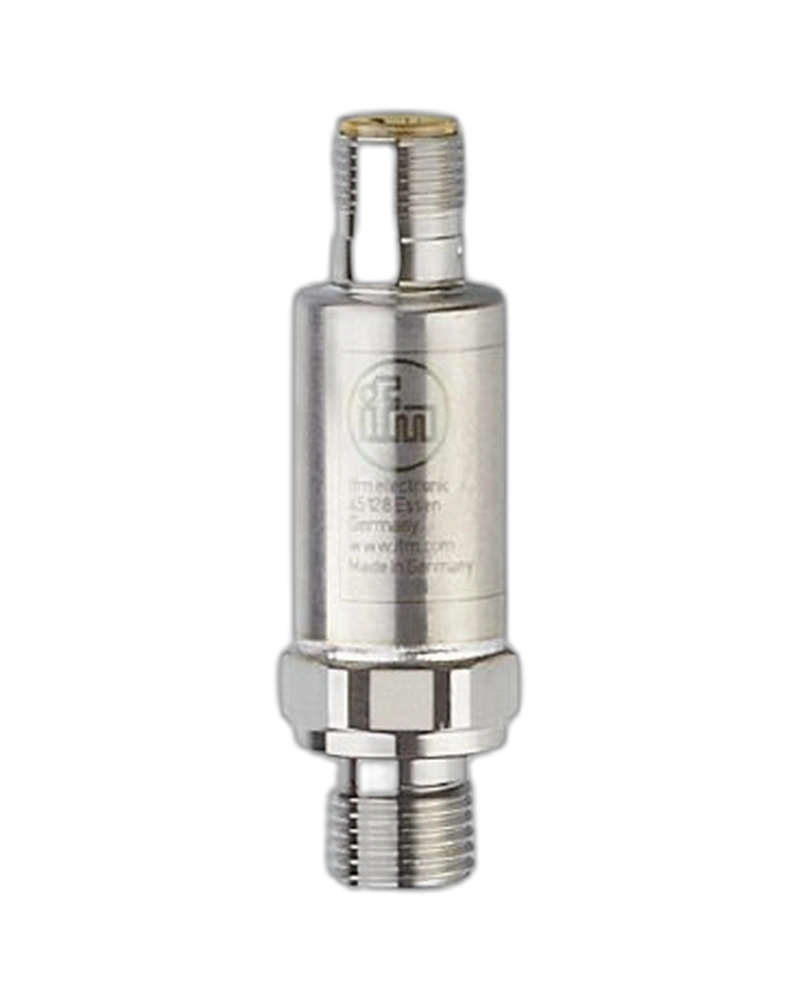

The IFM PT5504 is a compact pressure transmitter designed for reliable measurement from 0 to 10 bar. It provides a standardized 4 to 20 mA analogue output for industrial control and pressure-monitoring systems. The transmitter is designed for liquids and gases and is suitable for mobile-machine applications. Its robust stainless-steel construction provides resistance to mechanical shock and vibration. The compact form factor supports easy installation in machinery and pressure-control equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5504 provides a 0 to 10 bar pressure range for low-pressure hydraulic and pneumatic applications. Its 4 to 20 mA analogue output provides continuous pressure feedback to industrial controllers. The transmitter is designed to maintain stable pressure measurement during changing operating conditions. It can be used for monitoring pressure in liquid and gas systems. The measurement range makes it suitable for general industrial pressure-control applications.
The PT5504 has a compact construction intended for installation where space is restricted. Its robust materials support operation in mobile and industrial machinery. The transmitter is designed for high resistance to mechanical shock and vibration. The pressure connection provides convenient integration into compatible pipework. Its durable construction supports long-term operation in demanding environments.
The transmitter operates from an 8 to 32 V DC supply and provides one 4 to 20 mA analogue output. Its maximum load can reach 750 Ω at 24 V according to the product datasheet. Short-circuit protection supports dependable electrical operation. Reverse-polarity protection helps prevent damage caused by incorrect wiring. The standardized analogue signal enables straightforward connection to PLC and controller inputs.
The PT5504 can be integrated into hydraulic and pneumatic machine-control systems. It is suitable for mobile equipment where vibration and mechanical stress are expected. The compact housing allows mounting close to pressure sources and control components. The transmitter can be used for continuous monitoring and feedback applications. Its standardized output makes it compatible with conventional industrial automation equipment.
0 to 10 bar measuring range
4 to 20 mA analogue output
8 to 32 V DC supply
Compact construction
Stainless-steel housing
High shock resistance
High vibration resistance
Short-circuit protection
Reverse-polarity protection
G 1/4 external thread
Suitable for liquids and gases
750 Ω maximum load at 24 V
Mobile-machine application
Reliable pressure monitoring
Compact installation
Low-pressure hydraulic systems
Pneumatic systems
Mobile machinery
Industrial automation
Pressure monitoring
Pump systems
Machine control
Process equipment
Hydraulic circuits
Pneumatic equipment
| Specification | Details |
|---|---|
| Product | PT5504 |
| Product Type | Pressure transmitter |
| Model | PT-010-SEG14-A-ZVG/US |
| Measuring Range | 0...10 bar |
| Measuring Range | 0...1 MPa |
| Measuring Range | 0...145 psi |
| Pressure Type | Relative |
| Application | Mobile applications |
| Media | Liquids and gases |
| Output | 4...20 mA |
| Analogue Outputs | 1 |
| Supply Voltage | 8...32 V DC |
| Maximum Load | 750 Ω at 24 V |
| Process Connection | G 1/4 external thread |
| Standard | DIN EN ISO 1179-2 |
| Electrical Connection | M12 |
| Housing | Stainless steel |
| Medium Temperature | -40...125 °C |
| Ambient Temperature | -40...125 °C |
| Pressure Rating | 25 bar |
| Burst Pressure | 300 bar |
| Vacuum Resistance | -1 bar |
| Protection | Industrial robust construction |
| Short-Circuit Protection | Yes |
| Reverse Polarity | Yes |
