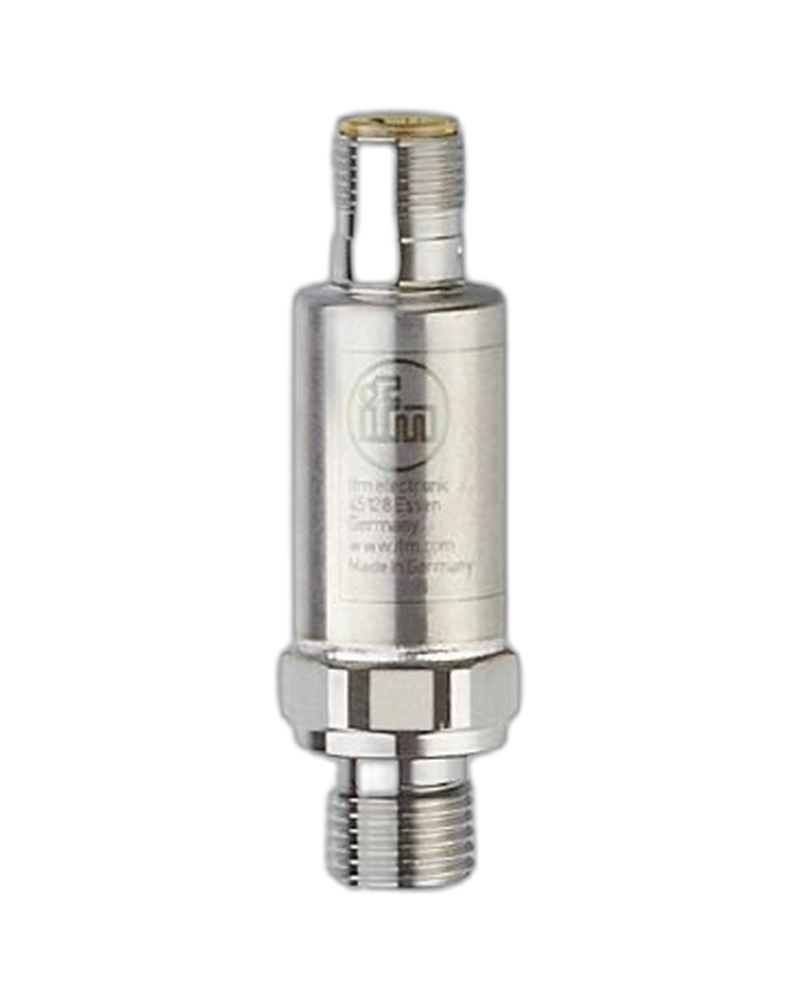

The IFM PT5503 is a compact pressure transmitter designed for reliable pressure measurement up to 25 bar. It provides a 4 to 20 mA analogue output for integration with industrial controllers and machine automation systems. The transmitter is intended for mobile applications involving liquid and gas pressure measurement. Its stainless-steel construction provides high resistance to shock and vibration. The compact design enables installation in pressure-monitoring systems with limited space.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5503 provides a 0 to 25 bar measuring range for low- to medium-pressure applications. Its 4 to 20 mA signal allows continuous pressure transmission to connected control systems. The transmitter is designed for reliable pressure measurement in dynamic machinery. It provides stable pressure feedback for hydraulic and pneumatic applications. Its measurement range is suitable for many general machine-pressure monitoring tasks.
The PT5503 features a compact and robust design intended for mobile equipment. Stainless-steel construction provides mechanical durability and resistance to demanding environments. The transmitter is designed to withstand shock and vibration during machine operation. Its compact body supports easy installation near pressure lines and machine components. The robust design contributes to reliable operation over a long service life.
The PT5503 provides one 4 to 20 mA analogue output. The current output is compatible with common PLC analogue input modules and industrial controllers. Its DC operating supply allows straightforward integration into machine electrical systems. Electrical protection supports dependable operation during normal industrial use. The standardized output simplifies connection to existing pressure-monitoring infrastructure.
The transmitter is suited to mobile machinery, hydraulic equipment and industrial automation systems. It can be installed on pumps, pressure lines and hydraulic actuators. Its mechanical resistance makes it suitable for machines experiencing vibration and movement. The compact design also benefits installations with restricted sensor mounting space. It provides reliable pressure feedback for machine monitoring and control.
0 to 25 bar measuring range
4 to 20 mA analogue output
Compact transmitter construction
Stainless-steel housing
High shock resistance
High vibration resistance
More than 60 million pressure cycles
Reliable long-term stability
Low linearity error
High repeatability
G 1/4 external thread
Suitable for liquids and gases
Mobile-machine design
Compact installation
Industrial pressure monitoring
Mobile hydraulic systems
Pneumatic machinery
Agricultural machinery
Construction equipment
Hydraulic pumps
Hydraulic actuators
Machine automation
Industrial equipment
Pressure monitoring systems
Process machinery
| Specification | Details |
|---|---|
| Product | PT5503 |
| Product Type | Pressure transmitter |
| Model | PT-025-SEG14-A-ZVG/US |
| Measuring Range | 0...25 bar |
| Measuring Range | 0...2.5 MPa |
| Measuring Range | 0...360 psi |
| Pressure Type | Relative |
| Application | Mobile applications |
| Media | Liquids and gases |
| Output Signal | 4...20 mA |
| Number of Analogue Outputs | 1 |
| Supply Voltage | 8...32 V DC |
| Process Connection | G 1/4 external thread |
| Connection Standard | DIN EN ISO 1179-2 |
| Electrical Connection | M12 |
| Housing Material | Stainless steel |
| Wetted Material | Stainless steel |
| Medium Temperature | -40...125 °C |
| Ambient Temperature | -40...125 °C |
| Shock Resistance | High |
| Vibration Resistance | High |
| Pressure Cycles | >60 million |
| Installation | Compact |
| Signal Type | Analogue current |
| Main Application | Mobile pressure measurement |
