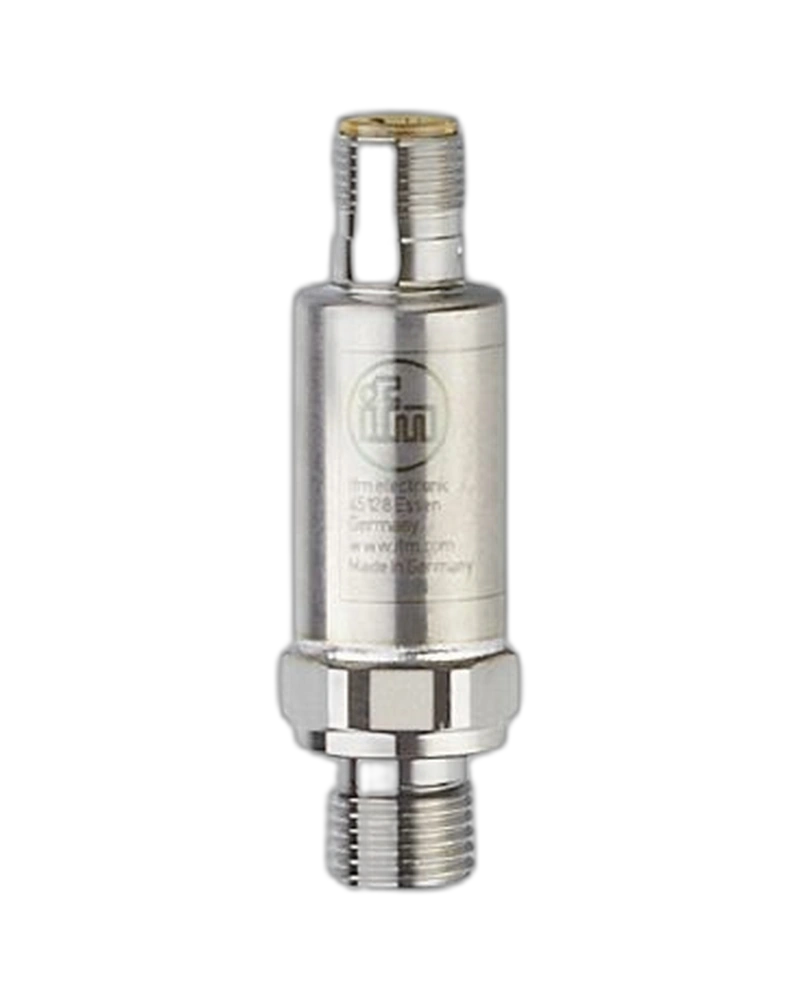

The IFM PT5460 is a high-pressure industrial transmitter designed for measuring system pressures up to 600 bar. It provides a 4 to 20 mA analogue output for integration with industrial controllers, PLCs and monitoring systems. The transmitter is designed for liquids and gases and can operate with medium temperatures from -40 to 90 °C. Its robust stainless-steel construction provides high mechanical strength for demanding pressure applications. With a 1500 bar pressure rating and 2500 bar minimum burst pressure, the PT5460 is suitable for high-pressure industrial systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5460 provides a 0 to 600 bar measuring range for applications requiring high-pressure measurement capability. Its 4 to 20 mA output provides a standardized signal for industrial automation and process control systems. The transmitter maintains a characteristic deviation below ±0.5% of span across its specified measurement conditions. Repeatability is below ±0.05% of span, while linearity deviation is below ±0.1% BFSL. A 1 ms analogue step response provides fast pressure signal transmission for dynamic high-pressure systems.
The PT5460 uses a compact cylindrical housing measuring approximately 19 mm in diameter and 66 mm in length. Stainless steel 17-4 PH / 630 is used for the wetted parts, providing high mechanical strength under demanding pressure conditions. The transmitter is protected to IP67 and IP69K standards for reliable operation in harsh industrial environments. It can withstand 50 g shock and vibration loads of 20 g across 10 to 2000 Hz. The device is rated for a minimum of 60 million pressure cycles at 1.2 times nominal pressure.
The PT5460 operates from an 8.5 to 36 V DC supply and provides one 4 to 20 mA analogue output. Its standardized current output makes it suitable for PLC analogue input modules and industrial process controllers. The maximum output load depends on supply voltage and can reach 720 Ω at 24 V DC. Reverse-polarity, overload and short-circuit protection support reliable electrical operation. The M12 A-coded connector provides a secure and compact interface for industrial installation.
0 to 600 bar pressure measurement
0 to 60 MPa measuring range
4 to 20 mA analogue output
8.5 to 36 V DC operating supply
1500 bar static pressure rating
2500 bar minimum burst pressure
Compact stainless-steel housing
IP67 and IP69K protection
High shock resistance
High vibration resistance
Repeatability below ±0.05% of span
Characteristic deviation below ±0.5% of span
Linearity below ±0.1% BFSL
1 ms analogue response time
60 million minimum pressure cycles
G 1/4 external process connection
M12 A-coded connector
Suitable for demanding high-pressure systems
High-pressure hydraulic systems
Hydraulic power units
Industrial machinery
High-pressure pumps
Pressure testing equipment
Process automation
Machine tool systems
Industrial production equipment
Hydraulic control systems
High-pressure fluid monitoring
| Parameter | Specification |
|---|---|
| Product | PT5460 |
| Product Type | Pressure transmitter |
| Short Code | PT-600-SEG14-A-ZVG/US/ /W |
| Measuring Range | 0...600 bar |
| Measuring Range in psi | 0...8700 psi |
| Measuring Range in MPa | 0...60 MPa |
| Pressure Type | Relative pressure |
| Application | Industrial applications |
| Compatible Media | Liquids and gases |
| Medium Temperature | -40...90 °C |
| Pressure Rating | 1500 bar / 150 MPa |
| Minimum Burst Pressure | 2500 bar / 250 MPa |
| Vacuum Resistance | -1000 mbar / -0.1 MPa |
| Analogue Output | 4...20 mA |
| Number of Analogue Outputs | 1 |
| Operating Voltage | 8.5...36 V DC |
| Maximum Load | 720 Ω at 24 V DC |
| Protection Rating | IP67 / IP69K |
| Ambient Temperature | -40...90 °C |
| Storage Temperature | -40...100 °C |
| Process Connection | G 1/4 external thread |
| Connection Standard | DIN EN ISO 1179-2 |
| Electrical Connection | 1 x M12, A-coded |
| Minimum Pressure Cycles | 60 million at 1.2 × nominal pressure |
| Housing Dimensions | Ø19 × 66 mm |
