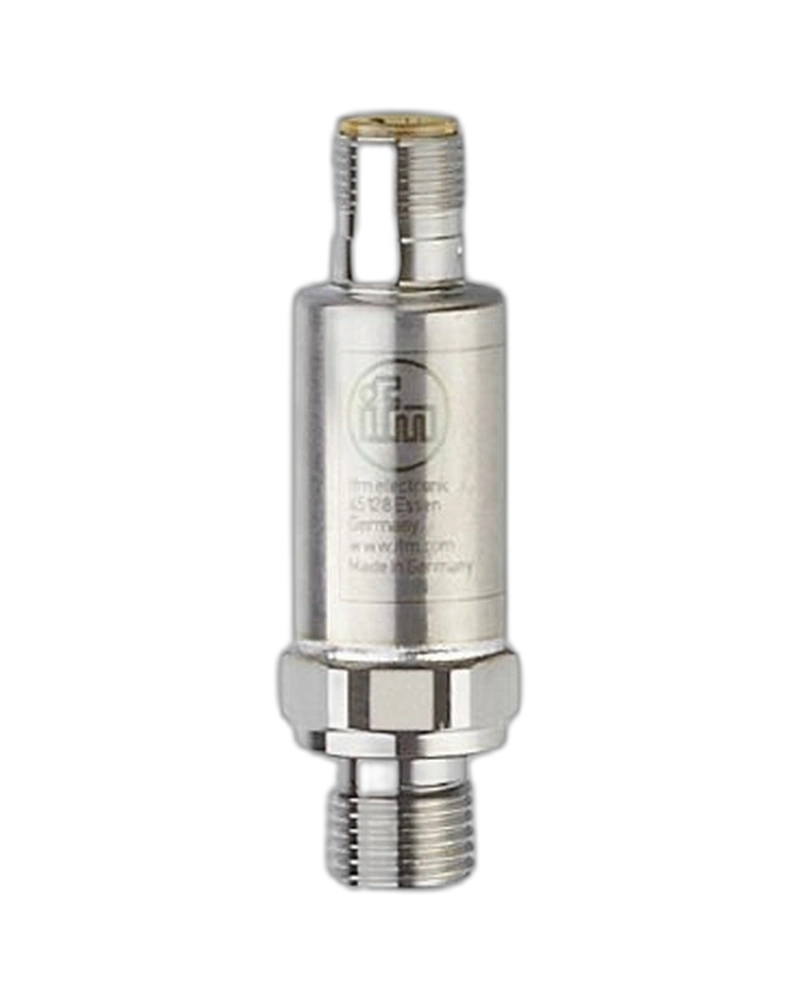

The IFM PT5423 is a compact pressure transmitter designed for reliable system pressure measurement in industrial applications. It provides a 0 to 60 bar measuring range and converts pressure into a precise 4 to 20 mA analogue signal. The transmitter is suitable for measuring pressure in liquids and gases across demanding operating conditions. Its stainless-steel construction provides excellent resistance to shock, vibration and industrial environments. With IP67 and IP69K protection, the PT5423 is suitable for robust machine and process automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5423 provides reliable pressure measurement over a range of 0 to 60 bar, supporting applications where stable pressure monitoring is required. Its analogue 4 to 20 mA output allows direct integration with PLCs, controllers and industrial monitoring systems. The transmitter offers a characteristic deviation of less than ±0.5% of span, including relevant error components. Repeatability is specified at less than ±0.05% of span under temperature fluctuations below 10 K. A fast analogue step response of approximately 1 ms enables the transmitter to respond quickly to pressure changes.
The PT5423 uses a compact cylindrical housing with stainless-steel materials selected for demanding industrial environments. Its wetted parts are manufactured from stainless steel 1.4542 / 17-4 PH / 630 to provide mechanical strength and media resistance. The transmitter has a diameter of approximately 19 mm and a length of 66 mm, making it suitable for installations with limited space. IP67 and IP69K protection help protect the sensor against dust, water and high-pressure cleaning conditions. The design is also tested for high shock and vibration loads, supporting reliable operation on industrial machinery.
The PT5423 operates from an 8.5 to 36 V DC supply and provides one analogue current output. Its 4 to 20 mA signal is widely compatible with industrial PLCs, controllers, data acquisition systems and automation equipment. The transmitter includes reverse-polarity protection, overload protection and short-circuit protection for dependable electrical operation. An M12 connector with A coding provides a compact and reliable electrical connection. The maximum permissible load depends on the supply voltage and can reach 720 Ω at 24 V DC.
Reliable 0 to 60 bar pressure measurement
4 to 20 mA analogue current output
Compact cylindrical stainless-steel housing
High resistance to shock and vibration
IP67 and IP69K ingress protection
Excellent repeatability below ±0.05% of span
Characteristic deviation below ±0.5% of span
Linearity deviation below ±0.1% BFSL
Fast 1 ms analogue response time
60 million minimum pressure cycles
G 1/4 external threaded process connection
M12 A-coded electrical connector
8.5 to 36 V DC operating supply
Reverse-polarity protection
Short-circuit and overload protection
Suitable for liquids and gases
Industrial hydraulic pressure monitoring
Pneumatic system pressure measurement
Machine tool pressure monitoring
Industrial automation equipment
Hydraulic power units
Pump and compressor systems
Process machinery
Production and assembly machines
Pressure monitoring in manufacturing equipment
General industrial process control
| Parameter | Specification |
|---|---|
| Product | PT5423 |
| Product Type | Pressure transmitter |
| Short Code | PT-060-SEG14-A-ZVG/US/ /W |
| Measuring Range | 0...60 bar |
| Measuring Range in psi | 0...870 psi |
| Measuring Range in MPa | 0...6 MPa |
| Pressure Type | Relative pressure |
| Application | Industrial applications |
| Compatible Media | Liquids and gases |
| Medium Temperature | -40...90 °C |
| Pressure Rating | 150 bar / 15 MPa |
| Minimum Burst Pressure | 900 bar / 90 MPa |
| Vacuum Resistance | -1000 mbar / -0.1 MPa |
| Analogue Output | 4...20 mA |
| Number of Analogue Outputs | 1 |
| Operating Voltage | 8.5...36 V DC |
| Maximum Load | 720 Ω at 24 V DC |
| Protection Rating | IP67 / IP69K |
| Ambient Temperature | -40...90 °C |
| Storage Temperature | -40...100 °C |
| Process Connection | G 1/4 external thread |
| Connection Standard | DIN EN ISO 1179-2 |
| Electrical Connection | 1 x M12, A-coded |
| Minimum Pressure Cycles | 60 million at 1.2 × nominal pressure |
| Housing Dimensions | Ø19 × 66 mm |
