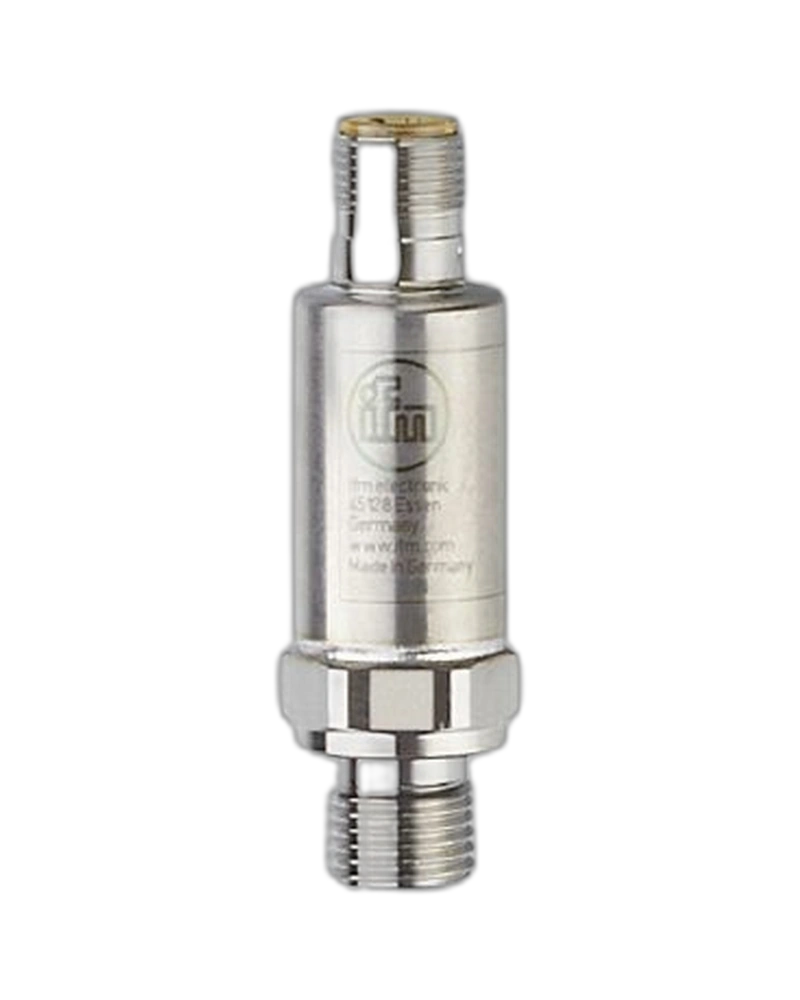

The IFM PT5414 is a compact industrial pressure transmitter designed for measurement from 0 to 16 bar. It provides a reliable 4–20 mA analogue output for industrial monitoring and automation. Its stainless-steel cylindrical housing offers excellent mechanical durability. The G 1/4 process connection supports straightforward installation into pressure systems. High shock and vibration resistance and IP67/IP69K protection make it suitable for demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5414 provides relative pressure measurement up to 16 bar. It is designed for liquid and gaseous media. Excellent repeatability and low characteristic deviation support stable measurement. The 1 ms response enables fast pressure monitoring. Its pressure range is suitable for low- and medium-pressure industrial systems.
The compact stainless-steel housing provides high mechanical strength. High shock and vibration resistance allows installation on industrial machinery. The G 1/4 connection provides standard pressure-line integration. IP67/IP69K protection supports demanding environmental conditions. The compact design is useful in restricted mounting locations.
The PT5414 provides one 4–20 mA analogue output. It operates from 8.5–36 V DC. Reverse polarity and short-circuit protection support safe installation. The M12 connector provides a reliable field connection. Fast response supports real-time pressure monitoring and control.
0...16 bar range
4...20 mA output
Stainless-steel housing
G 1/4 process connection
M12 connector
IP67/IP69K protection
1 ms response
Excellent repeatability
Low linearity error
High shock resistance
High vibration resistance
60 million pressure cycles
Water pressure monitoring
Pneumatic systems
Pump systems
Industrial machinery
Process equipment
Machine automation
Fluid systems
Pressure control
| Specification | Details |
|---|---|
| Product | PT5414 |
| Model | PT-016-SEG14-A-ZVG/US//W |
| Measuring range | 0...16 bar |
| Equivalent range | 0...232 psi / 0...1.6 MPa |
| Pressure type | Relative |
| Media | Liquids and gases |
| Medium temperature | -40...90 °C |
| Pressure rating | 40 bar |
| Burst pressure | 450 bar |
| Vacuum resistance | -1000 mbar |
| Repeatability | < ±0.05 % span |
| Characteristic deviation | < ±0.5 % span |
| Linearity | < ±0.1 BFSL / < ±0.2 LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Response | 1 ms |
| Supply voltage | 8.5...36 V DC |
| Output | 4...20 mA |
| Outputs | 1 analogue |
| Process connection | G 1/4 |
| Housing | Stainless steel |
| Protection | IP67/IP69K |
| Electrical connector | M12 |
| Pressure cycles | 60 million |
