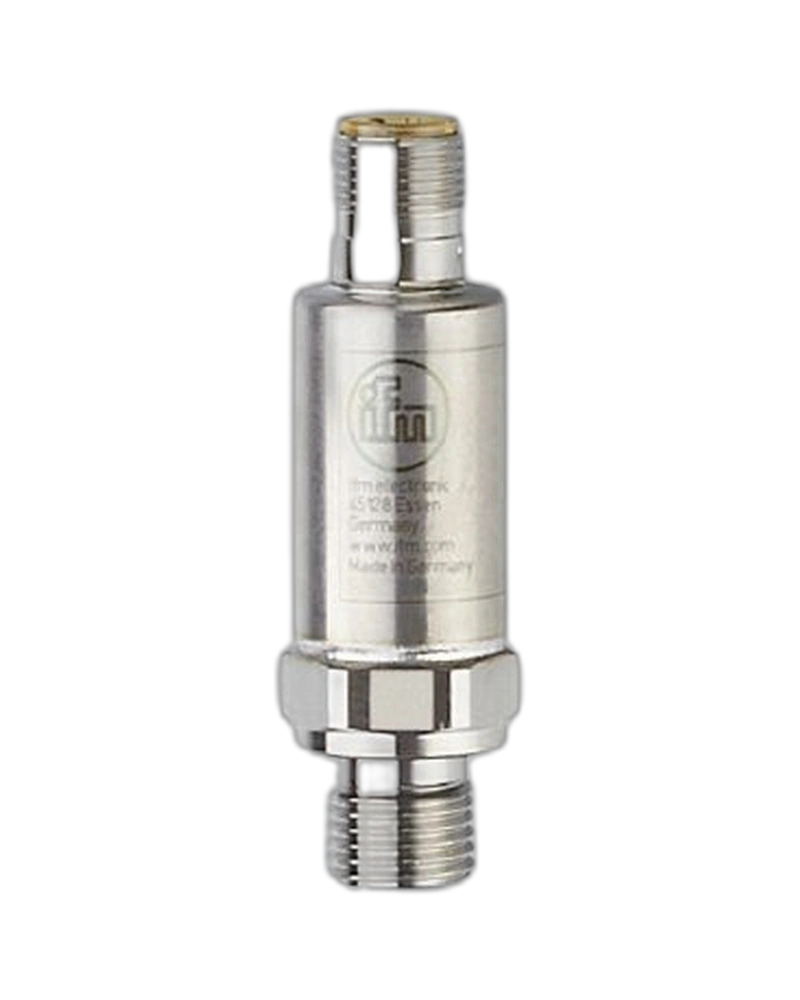

The IFM PT5402 is an industrial pressure transmitter designed for reliable measurement from 0 to 100 bar. It provides a 4–20 mA analogue signal for PLC, automation and monitoring applications. The compact stainless-steel body provides reliable operation in demanding environments. Its G 1/4 process connection and M12 connector support straightforward installation. High repeatability, low linearity error and IP67/IP69K protection make it suitable for industrial pressure monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5402 measures relative pressure up to 100 bar. It supports measurement of liquids and gases in industrial systems. The transmitter provides excellent repeatability and low characteristic deviation. Its 1 ms response enables quick pressure monitoring. Long-term stability supports reliable operation over extended periods.
The compact stainless-steel housing provides high mechanical strength. It is designed for high shock and vibration resistance. The G 1/4 external process connection enables simple pressure-line installation. IP67/IP69K protection supports demanding environments. Its compact cylindrical form is suitable for restricted installation spaces.
The transmitter provides one 4–20 mA analogue output. It operates from 8.5–36 V DC. Reverse polarity and short-circuit protection improve electrical safety. The M12 connector provides a secure industrial interface. Fast response makes the transmitter suitable for real-time pressure control.
0...100 bar range
4...20 mA output
G 1/4 process connection
M12 connector
Stainless-steel housing
IP67/IP69K protection
1 ms response
High repeatability
Low linearity error
High shock resistance
High vibration resistance
60 million pressure cycles
Industrial pressure measurement
Hydraulic systems
Pump monitoring
Machine tools
Process machinery
Fluid systems
Automation equipment
Pressure control
| Specification | Details |
|---|---|
| Product | PT5402 |
| Model | PT-100-SEG14-A-ZVG/US//W |
| Measuring range | 0...100 bar |
| Equivalent range | 0...1450 psi / 0...10 MPa |
| Pressure type | Relative |
| Media | Liquids and gases |
| Medium temperature | -40...90 °C |
| Pressure rating | 250 bar |
| Burst pressure | 1000 bar |
| Vacuum resistance | -1000 mbar |
| Repeatability | < ±0.05 % span |
| Characteristic deviation | < ±0.5 % span |
| Linearity | < ±0.1 BFSL / < ±0.2 LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Response | 1 ms |
| Supply voltage | 8.5...36 V DC |
| Output | 4...20 mA |
| Outputs | 1 analogue |
| Insulation resistance | 100 MΩ |
| Protection class | III |
| Process connection | G 1/4 |
| Housing | Stainless steel |
| Protection | IP67/IP69K |
