The IFM PT5314 is a compact pressure transmitter designed for industrial pressure measurement from 0 to 16 bar. It provides a 4–20 mA analogue output for reliable pressure monitoring. Its stainless-steel housing provides strong mechanical resistance and long-term durability. The transmitter uses a G 1/4 process connection and M12 electrical interface. IP67/IP69K protection enables dependable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5314 is designed for accurate low-pressure measurement up to 16 bar. It supports liquids and gases and provides stable relative pressure measurement. Its low characteristic deviation contributes to reliable pressure monitoring. A fast analogue response supports dynamic pressure measurement. Long-term stability helps maintain dependable performance during extended operation.

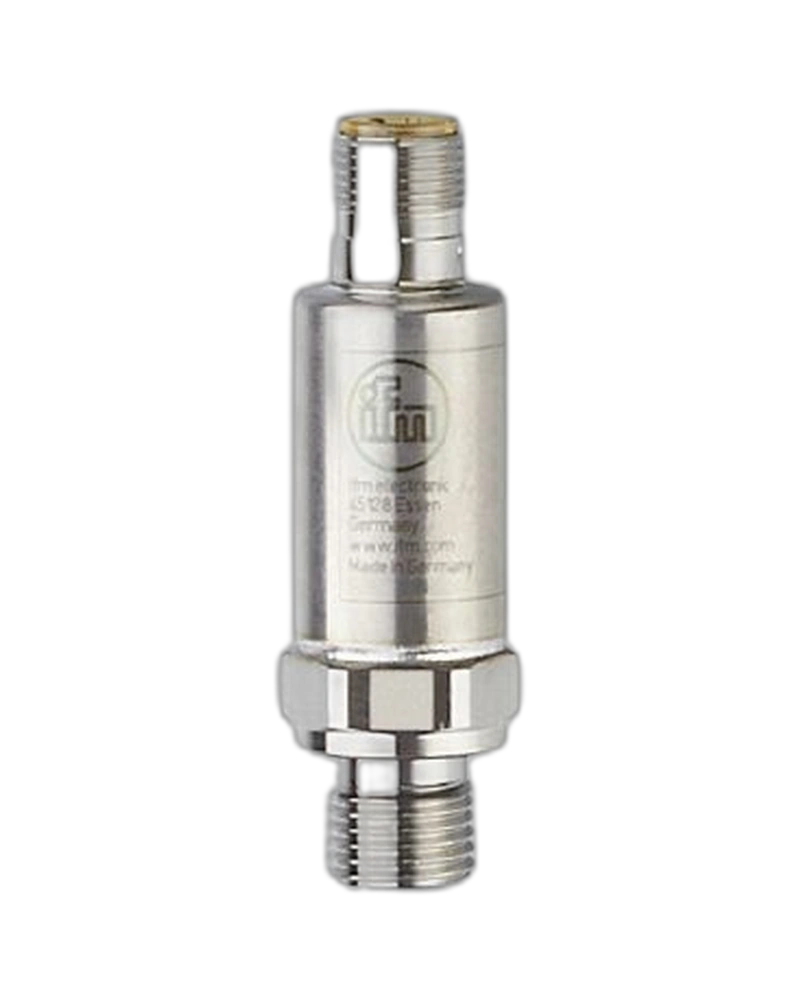

The transmitter features a compact cylindrical stainless-steel housing. It can be installed in restricted machine spaces without requiring a large mounting footprint. The G 1/4 process connection provides standard mechanical integration. Its IP67/IP69K rating helps withstand demanding environmental conditions. High shock and vibration resistance supports machine applications.
The 4–20 mA analogue signal is suitable for PLC and industrial automation systems. The 8.5–36 V DC supply range supports common industrial control architectures. Reverse polarity and short-circuit protection enhance installation reliability. The M12 connector provides secure field-level connection. The 1 ms response enables rapid pressure changes to be monitored.
0...16 bar measuring range
4...20 mA analogue output
G 1/4 thread
M12 connection
Stainless-steel housing
IP67/IP69K protection
1 ms response
High shock resistance
High vibration resistance
Excellent repeatability
60 million pressure cycles
Low linearity deviation
Water pressure monitoring
Pneumatic systems
Industrial machinery
Pump systems
Fluid handling
Process equipment
Machine automation
Low-pressure hydraulic systems
| Specification | Details |
|---|---|
| Product | PT5314 |
| Model | PT-016-SEG14-A-ZVG/US//W |
| Measuring range | 0...16 bar |
| Equivalent range | 0...232 psi / 0...1.6 MPa |
| Pressure type | Relative |
| Media | Liquids and gases |
| Medium temperature | -40...90 °C |
| Pressure rating | 40 bar |
| Burst pressure | 450 bar |
| Vacuum resistance | -1000 mbar |
| Repeatability | < ±0.05 % span |
| Characteristic deviation | < ±0.5 % span |
| Linearity | < ±0.1 BFSL / < ±0.2 LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Response time | 1 ms |
| Supply | 8.5...36 V DC |
| Output | 4...20 mA |
| Outputs | 1 analogue |
| Process connection | G 1/4 |
| Housing | Stainless steel |
| Protection | IP67/IP69K |
| Electrical connector | M12 |
| Pressure cycles | 60 million |
