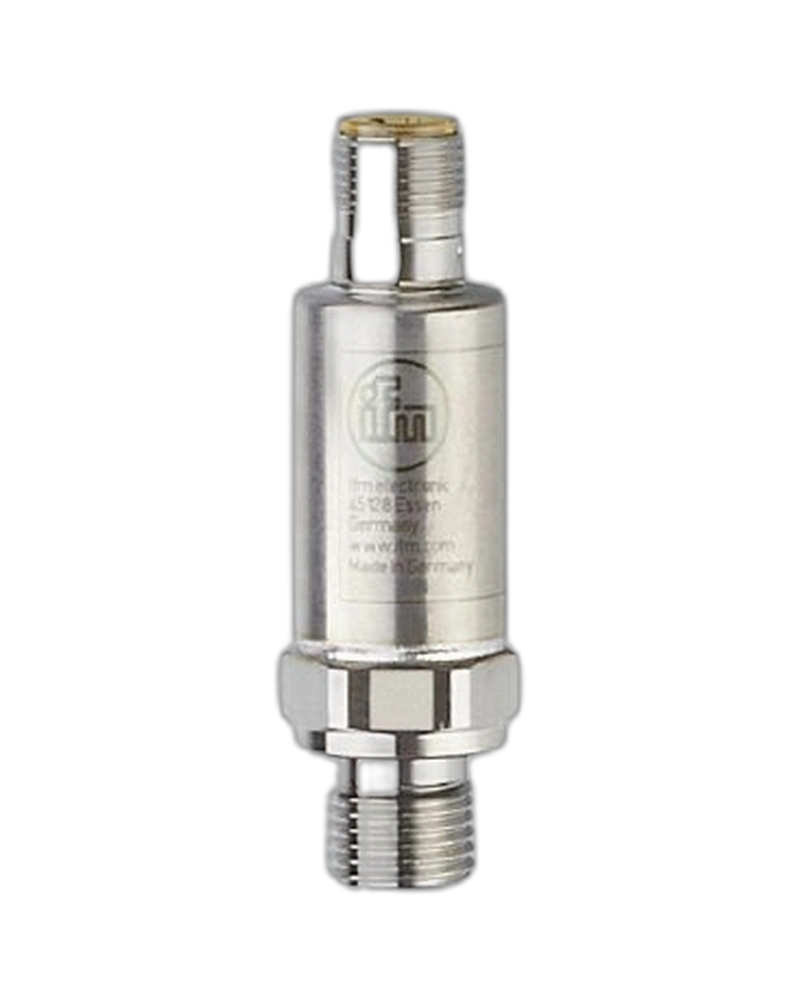

The IFM PT5304 is a compact industrial pressure transmitter designed for measurement from 0 to 10 bar. It provides a continuous 4–20 mA analogue output for pressure monitoring and automation systems. Its stainless-steel housing provides reliable mechanical protection. The G 1/4 process connection simplifies installation into industrial pressure lines. The transmitter offers fast response, high repeatability and IP67/IP69K protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PT5304 is optimized for low-pressure industrial measurement up to 10 bar. It provides relative pressure measurement for liquid and gaseous media. High repeatability and low characteristic deviation support stable monitoring. The analogue output responds quickly to pressure changes. Its compact design makes it suitable for machine pressure monitoring applications.
The stainless-steel cylindrical body provides mechanical durability. The transmitter is designed to withstand significant shock and vibration. IP67/IP69K protection supports operation in harsh industrial environments. The G 1/4 external thread provides a standard process connection. Its compact size allows convenient installation in restricted areas.
The PT5304 provides a 4–20 mA output suitable for PLC and industrial controller inputs. Its 8.5–36 V DC supply range supports common automation systems. Reverse polarity and short-circuit protection improve electrical safety. The M12 connector simplifies field wiring. The fast analogue response supports dynamic pressure monitoring.
0...10 bar measuring range
4...20 mA output
G 1/4 process connection
M12 electrical connector
Stainless-steel construction
IP67/IP69K protection
1 ms response time
Excellent repeatability
Low hysteresis
High vibration resistance
High shock resistance
60 million pressure cycles
Low-pressure monitoring
Industrial automation
Pump systems
Water systems
Machine tools
Fluid handling
Process equipment
Pressure control systems
| Specification | Details |
|---|---|
| Product | PT5304 |
| Model | PT-010-SEG14-A-ZVG/US//W |
| Measuring range | 0...10 bar |
| Equivalent range | 0...145 psi / 0...1 MPa |
| Pressure type | Relative |
| Media | Liquids and gases |
| Medium temperature | -40...90 °C |
| Pressure rating | 25 bar |
| Burst pressure | 300 bar |
| Vacuum resistance | -1000 mbar |
| Repeatability | < ±0.05 % span |
| Characteristic deviation | < ±0.5 % span |
| Linearity | < ±0.1 BFSL / < ±0.2 LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Response time | 1 ms |
| Supply | 8.5...36 V DC |
| Output | 4...20 mA |
| Outputs | 1 analogue |
| Protection class | III |
| Reverse polarity | Yes |
| Short circuit | Yes |
| Process connection | G 1/4 |
| Housing | Stainless steel |
| Protection | IP67/IP69K |
