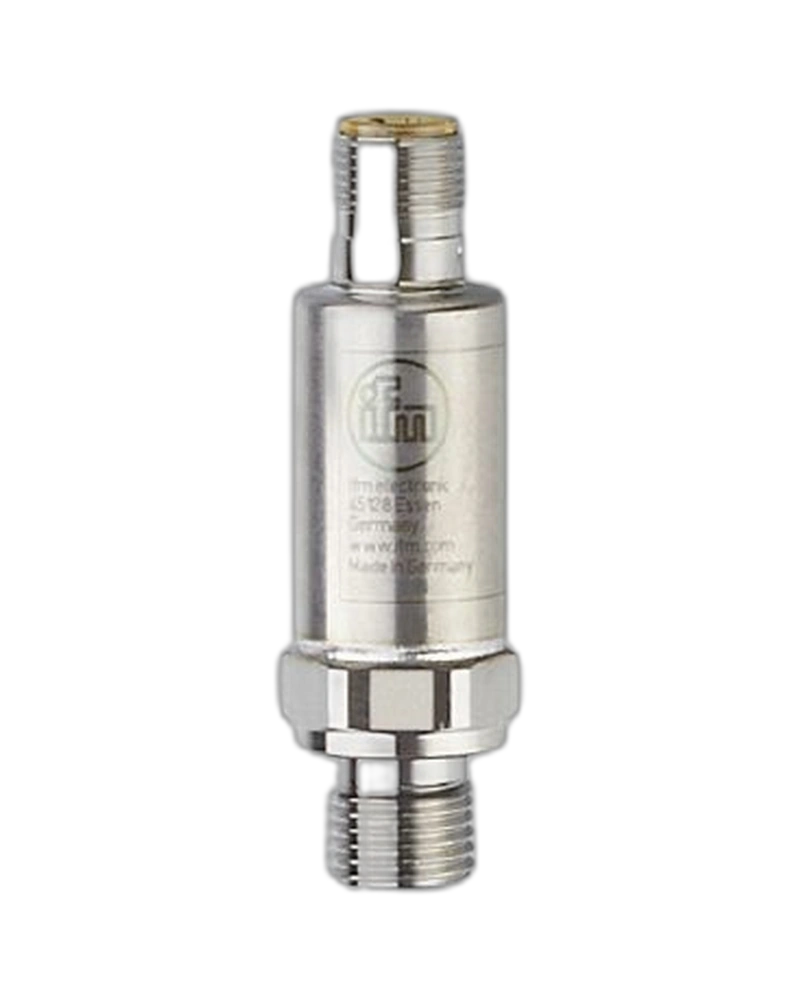

PT504E is a compact industrial pressure transmitter designed for reliable system-pressure detection. It is suitable for applications requiring continuous analogue pressure measurement. The transmitter provides a 4–20 mA signal for industrial controllers and monitoring equipment. Its stainless-steel cylindrical construction supports demanding industrial environments. It is suitable for pressure monitoring in machinery, process equipment and mobile applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT504E provides a 0…10 bar pressure measuring range according to IFM documentation. It provides a 4–20 mA analogue current output for continuous pressure feedback. The transmitter is designed for repeatable measurement with low linearity and hysteresis errors. Its response time is specified at approximately 2 ms. These characteristics make it suitable for dynamic pressure monitoring.
The transmitter uses a compact cylindrical housing with industrial materials. It is designed to withstand shock and vibration encountered in demanding applications. The protection rating is IP67/IP69K according to IFM's documentation. The transmitter is suitable for liquids and gases within its approved application limits. Its robust construction makes it suitable for machine and process installations.
PT504E can be used for system-pressure monitoring in industrial equipment. It is suitable for hydraulic and pneumatic systems. Its analogue signal can be connected to PLCs and controllers. The transmitter can support pressure alarms and machine-protection systems. It is also suitable for condition monitoring and preventive maintenance.
0…10 bar measuring range
4–20 mA output
Compact cylindrical housing
Stainless-steel construction
IP67 protection
IP69K protection
Fast 2 ms response
Short-circuit protection
Overload protection
Industrial pressure measurement
PLC compatibility
Analogue control integration
High shock resistance
High vibration resistance
Pressure alarm capability
Machine protection
Process monitoring
Condition monitoring
Long-term stability
Industrial-duty construction
Industrial machinery
Hydraulic systems
Pneumatic systems
Mobile machinery
Process equipment
Pump systems
Compressor systems
Pressure monitoring
PLC systems
Machine protection
Pressure alarms
Process control
Condition monitoring
Preventive maintenance
Equipment diagnostics
Production machinery
Packaging equipment
Material handling
Fluid systems
General industrial pressure measurement
| Specification | Details |
|---|---|
| Model | PT504E |
| Order Code | PT-010-SEG14-A-ZVG/US |
| Product Type | Pressure transmitter |
| Pressure Type | Relative |
| Measuring Range | 0…10 bar / 0…145 psi / 0…1000 kPa / 0…1 MPa |
| Output | 4–20 mA |
| Analogue Outputs | 1 |
| Maximum Load | (Ub − 8 V) / 21.5 mA; up to 750 Ω at 24 V |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Repeatability | <±0.05% span |
| Characteristics Deviation | <±0.8% span |
| Linearity Deviation | <±0.25% BFSL / <±0.5% LS |
| Hysteresis | <±0.2% span |
| Long-Term Stability | <±0.1% span per 6 months |
| Response Time | 2 ms |
| Ambient Temperature | −40…100 °C |
| Storage Temperature | −40…100 °C |
| Protection Rating | IP67 / IP69K |
| Shock Resistance | 500 g, 1 ms |
| Vibration Resistance | 20 g, 10…2000 Hz |
| Housing | Cylindrical |
| Weight | 58.5 g |
| Process Connection | G1/4 / model-specific |
| Output Type | Analogue current |
