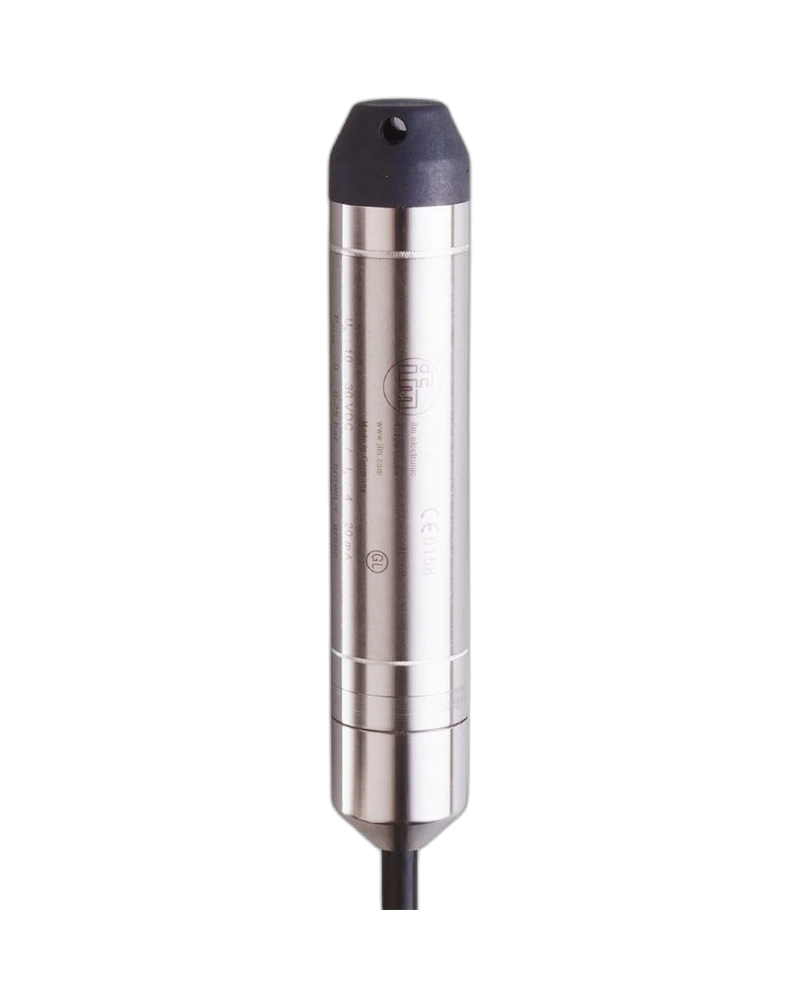

PS4607 is a hydrostatic submersible pressure transmitter with a 0 to 1 bar measuring range and 30 m FEP cable. It is designed for continuous liquid-level measurement in deep tanks, wells and reservoirs. The long FEP cable provides extended installation reach and media resistance, supporting reliable monitoring in industrial, water-treatment and process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PS4607 is designed for hydrostatic level measurement in deeper liquid applications. Its 0 to 1 bar measuring range accommodates higher liquid columns, while the 30 m FEP cable provides substantial installation reach. This combination makes the transmitter suitable for large tanks, deep wells and reservoirs.
The transmitter detects hydrostatic pressure and converts it into a proportional electrical signal. The 1 bar range supports measurement of higher liquid levels, while continuous sensing enables connection to automation and monitoring equipment. The pressure-compensated design helps maintain stable measurements during changes in atmospheric pressure.
The 30 m FEP cable provides long-distance connection capability between the submerged transmitter and control equipment. FEP construction supports applications requiring high resistance to suitable media. Correct mechanical support and cable routing help ensure stable installation in deep measurement points.
Deep wells
Large reservoirs
Industrial tanks
Water treatment plants
Pump stations
Process liquid monitoring
0 to 1 bar measuring range
30 m FEP cable
Submersible installation
Hydrostatic pressure measurement
Media-resistant FEP cable
Extended installation reach
Continuous level measurement
Suitable for deep applications
Pressure compensation
Industrial monitoring capability
| Specification | Details |
|---|---|
| Product Code | PS4607 |
| Measuring Range | 0 to 1 bar |
| Cable Material | FEP |
| Cable Length | 30 m |
| Installation | Submersible |
| Measurement Principle | Hydrostatic pressure |
| Application | Liquid level |
| Brand | IFM |
| Category | Pressure Sensors |
