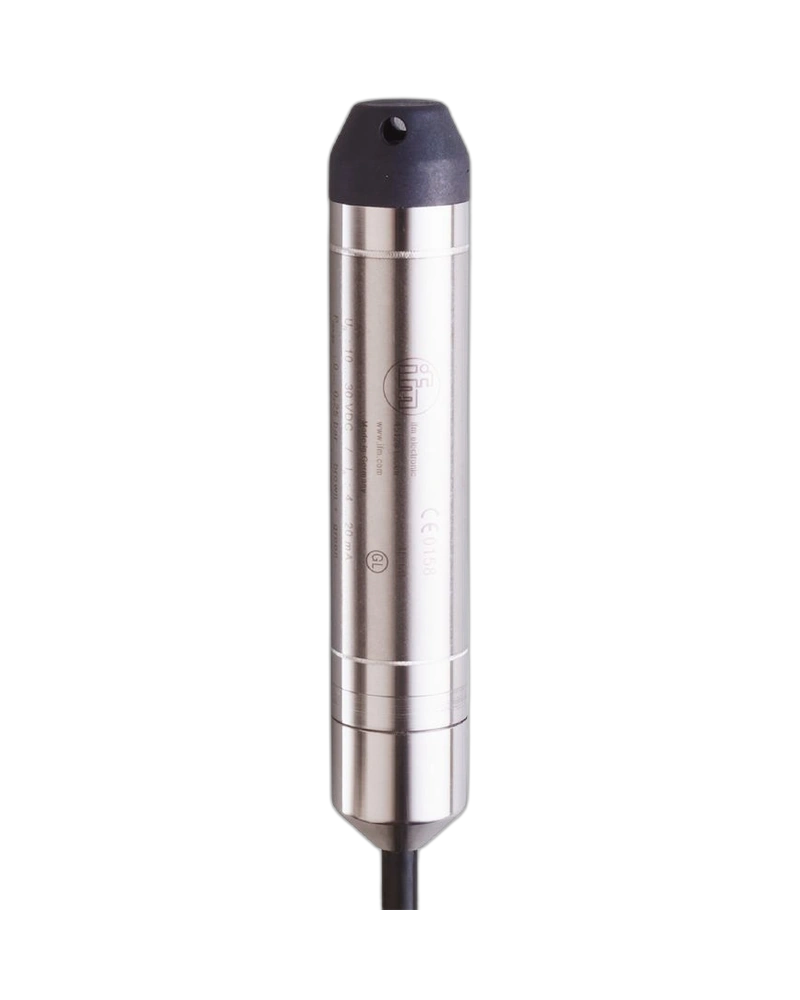

PS4407 is a hydrostatic submersible pressure transmitter with a 0 to 0.6 bar measuring range and 10 m FEP cable. It is designed for continuous liquid-level monitoring where a media-resistant cable is beneficial. The transmitter is suitable for industrial tanks, reservoirs, process systems and water applications requiring dependable submerged measurement and flexible installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PS4407 is designed for continuous hydrostatic level measurement in liquid applications. Its 0 to 0.6 bar measuring range provides a practical span for low-to-medium liquid levels. The FEP cable construction is intended for applications where the cable needs increased resistance to the measured medium.
Hydrostatic pressure measurement provides a continuous indication of liquid level based on the pressure generated by the liquid column. The 0.6 bar range allows the PS4407 to cover a broad selection of tank and reservoir applications. The transmitter can be integrated into monitoring and control systems for automated level supervision.
The 10 m FEP cable provides installation flexibility while offering high resistance to suitable process media. The transmitter is installed below the liquid surface to measure hydrostatic pressure directly. Correct suspension and cable protection can support stable long-term operation in tanks, wells and process vessels.
Industrial tanks
Water reservoirs
Process liquid monitoring
Water treatment
Liquid storage systems
Pump control applications
0 to 0.6 bar range
10 m FEP cable
Hydrostatic measurement
Submersible installation
Media-resistant cable material
Continuous level monitoring
Reliable pressure measurement
Flexible installation
Suitable for industrial applications
Compact sensing construction
| Specification | Details |
|---|---|
| Product Code | PS4407 |
| Measuring Range | 0 to 0.6 bar |
| Cable Material | FEP |
| Cable Length | 10 m |
| Installation | Submersible |
| Measurement Principle | Hydrostatic pressure |
| Application | Liquid level |
| Brand | IFM |
| Category | Pressure Sensors |
| Cable Type | FEP |
