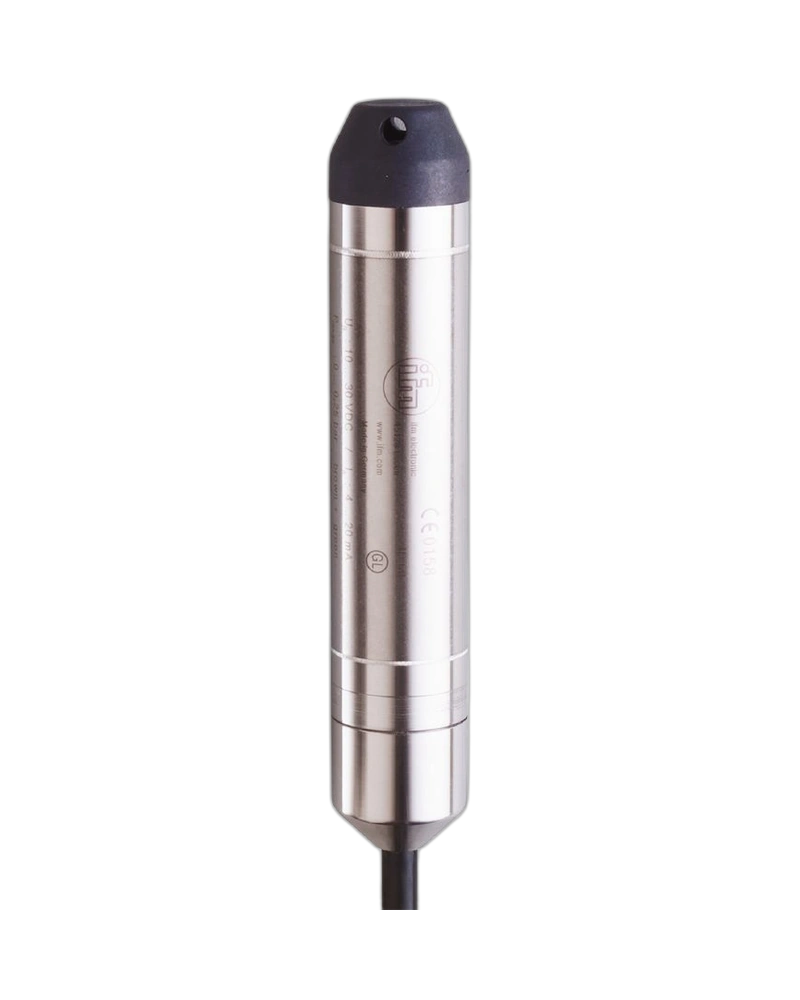

PS4208 is a hydrostatic submersible pressure transmitter with a 0 to 0.25 bar measuring range and 5 m FEP cable. It is designed for accurate low-level liquid measurement where resistance to the measured medium is important. The compact submersible design is suitable for tanks, reservoirs, process vessels and water-management systems requiring dependable continuous level monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PS4208 provides hydrostatic measurement for applications involving low liquid levels. Its 0 to 0.25 bar measuring range is suited to applications where relatively small hydrostatic pressure changes need to be monitored. The FEP cable is intended for applications requiring high resistance to the measured medium.
The transmitter detects hydrostatic pressure and converts the measured pressure into a proportional electrical signal. The low 0.25 bar range makes it appropriate for shallow tanks and low-level measurement applications. The design supports continuous monitoring and can be integrated into industrial control systems for level supervision and process automation.
The PS4208 features a 5 m FEP cable that provides a practical connection length for compact installations. FEP cable construction is particularly suitable for applications where media resistance is an important consideration. The transmitter can be suspended or positioned at the required measurement point for continuous submerged operation.
Low-level liquid tanks
Water storage systems
Process vessels
Chemical-resistant installations
Water treatment equipment
Industrial level monitoring
0 to 0.25 bar range
5 m FEP cable
Submersible pressure measurement
Hydrostatic level sensing
High media resistance cable material
Continuous measurement
Compact construction
Suitable for low liquid levels
Flexible installation
Industrial monitoring capability
| Specification | Details |
|---|---|
| Product Code | PS4208 |
| Measuring Range | 0 to 0.25 bar |
| Cable Material | FEP |
| Cable Length | 5 m |
| Installation | Submersible |
| Measurement | Hydrostatic pressure |
| Application | Liquid level |
| Cable Type | Media-resistant FEP |
| Brand | IFM |
| Category | Pressure Sensors |
