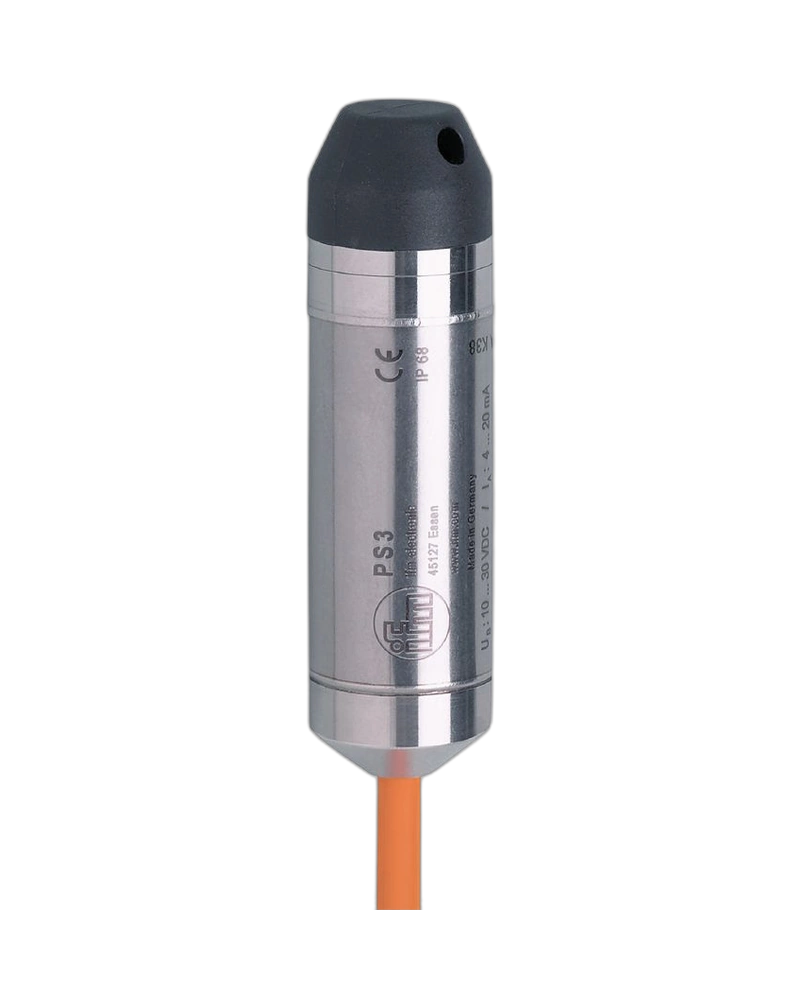

PS3617 is a hydrostatic submersible pressure transmitter designed for continuous liquid-level measurement with a 0 to 1 bar range and 30 m PUR cable. It is suitable for deeper tanks, wells, reservoirs and industrial water systems where dependable submerged pressure measurement is required. The extended cable length provides flexible installation and convenient connection to monitoring or control equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PS3617 is designed to determine liquid level by measuring hydrostatic pressure below the liquid surface. Its 0 to 1 bar measuring range provides a broader measurement capability than lower-range submersible models. The 30 m PUR cable makes the transmitter suitable for deeper installations where the sensing point is located well below the control cabinet.
Hydrostatic pressure increases according to the height of the liquid column, allowing the transmitter to provide continuous level information. The 1 bar range supports measurement of higher liquid levels while maintaining a suitable signal for automation and monitoring systems. Pressure compensation through the vented cable helps maintain dependable measurement under changing atmospheric conditions.
The 30 m PUR cable provides the required reach for deep wells, large reservoirs and extended tank installations. The transmitter is designed for submerged operation, allowing the pressure-sensing element to be positioned at the required measurement depth. Secure installation and suitable cable support help maintain reliable operation.
Deep wells
Water reservoirs
Industrial storage tanks
Water treatment plants
Pump control systems
Liquid-level monitoring
0 to 1 bar measuring range
Hydrostatic pressure measurement
30 m PUR cable
Submersible installation
Continuous level measurement
Pressure-compensated design
Suitable for deeper installations
Reliable signal output
Industrial liquid monitoring
IFM pressure sensor technology
| Specification | Details |
|---|---|
| Product Code | PS3617 |
| Product Type | Hydrostatic submersible pressure transmitter |
| Measuring Range | 0 to 1 bar |
| Cable Material | PUR |
| Cable Length | 30 m |
| Installation | Submersible |
| Measurement Principle | Hydrostatic pressure |
| Application | Liquid level |
| Brand | IFM |
| Category | Pressure Sensors |
