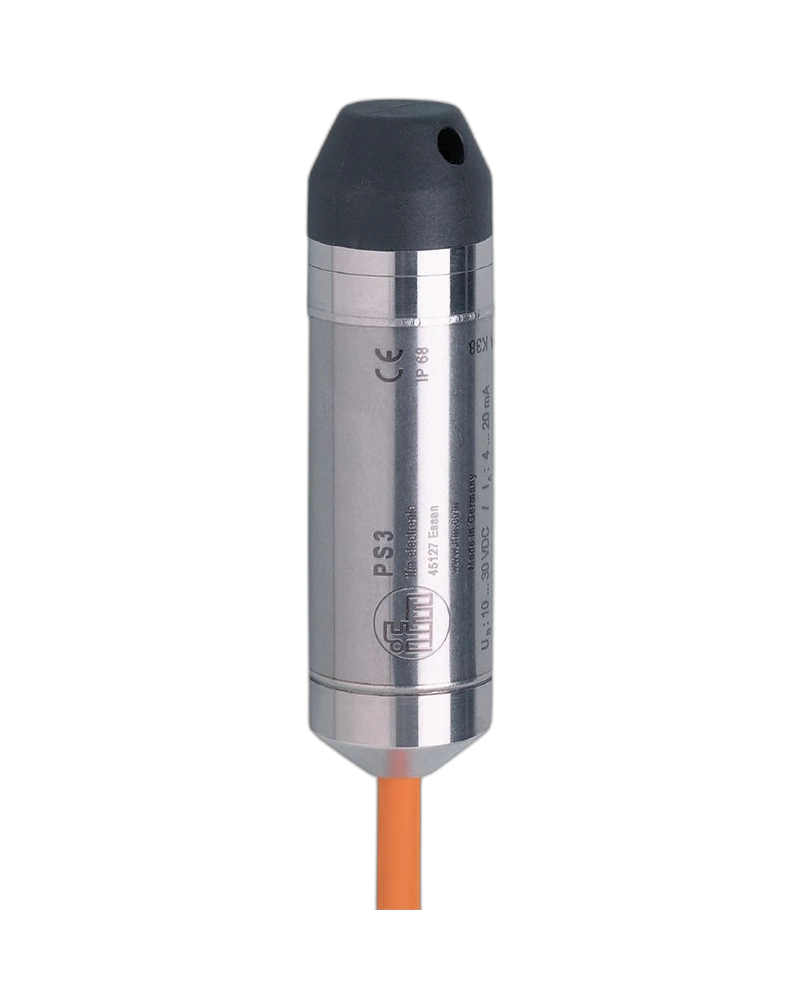

The PS3417 is an IFM hydrostatic submersible pressure transmitter designed for continuous liquid-level measurement. It features a 1 bar measuring range and 15 m PUR cable. The transmitter is suitable for standard industrial applications requiring deeper submerged level measurement. Its pressure-compensated cable supports reliable hydrostatic measurement. The device is suitable for tanks, reservoirs, water systems and industrial level-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PS3417 measures the hydrostatic pressure created by the liquid column above the transmitter. Its 1 bar measuring range supports a larger liquid head than lower-range models. Continuous pressure measurement allows the liquid level to be monitored by connected control systems. The transmitter can be suspended at the required depth. This makes it suitable for deeper tanks, wells and reservoirs.
The PS3417 uses a 15 m PUR cable, making it suitable for deeper submerged installations. The cable includes the pressure-compensation arrangement required for hydrostatic measurement. PUR construction is intended for standard industrial applications. Its 15 m length provides flexibility for larger tanks and deeper measurement points. IFM identifies PS3417 as a 1 bar / 15 m PUR version.
The PS3417 is designed for continuous submerged operation in compatible liquids. It can be installed in tanks, wells, reservoirs and water-management systems. The analogue pressure measurement can be used by PLCs and monitoring equipment. Its standard industrial construction provides a practical solution for level measurement. The transmitter can support automated pump and level-control functions.
The PS3417 is suitable for deeper liquid-level measurement in tanks and reservoirs. It can be used in water-management and wastewater applications. The transmitter can provide level information for pump-control systems. It can also support industrial liquid-storage monitoring. The 15 m cable allows installation at greater depths than the shorter cable versions.
1 bar measuring range
15 m PUR cable
Hydrostatic submersible measurement
Pressure-compensated cable
Standard industrial design
Continuous level measurement
Suitable for deeper installations
CE-approved product family
Deep tank level measurement
Reservoir monitoring
Water management
Wastewater systems
Pump control
Liquid storage
Industrial level monitoring
Level-control systems
| Specification | PS3417 |
|---|---|
| Product type | Hydrostatic submersible transmitter |
| Model | PS3417 |
| Measuring range | 0...1 bar |
| Cable material | PUR |
| Cable length | 15 m |
| Measurement principle | Hydrostatic |
| Application | Liquid-level measurement |
| Installation | Submersible |
| Pressure type | Relative |
| Output | Analogue, model-specific |
| Pressure compensation | Internally vented cable |
| Overload pressure | Approx. 5 bar according to IFM family data |
| Cable pull force | Up to 1000 N |
| Approval | CE |
| Media | Compatible liquids |
| Installation depth | Application-dependent |
| Housing | Submersible transmitter |
| Electrical connection | Fixed cable |
| Operating voltage | Refer to datasheet |
| Operating temperature | Refer to datasheet |
| Protection rating | Refer to datasheet |
| Accuracy | Refer to datasheet |
| Response time | Refer to datasheet |
| Accessories | Application-dependent |
| Maintenance | Application-dependent |
