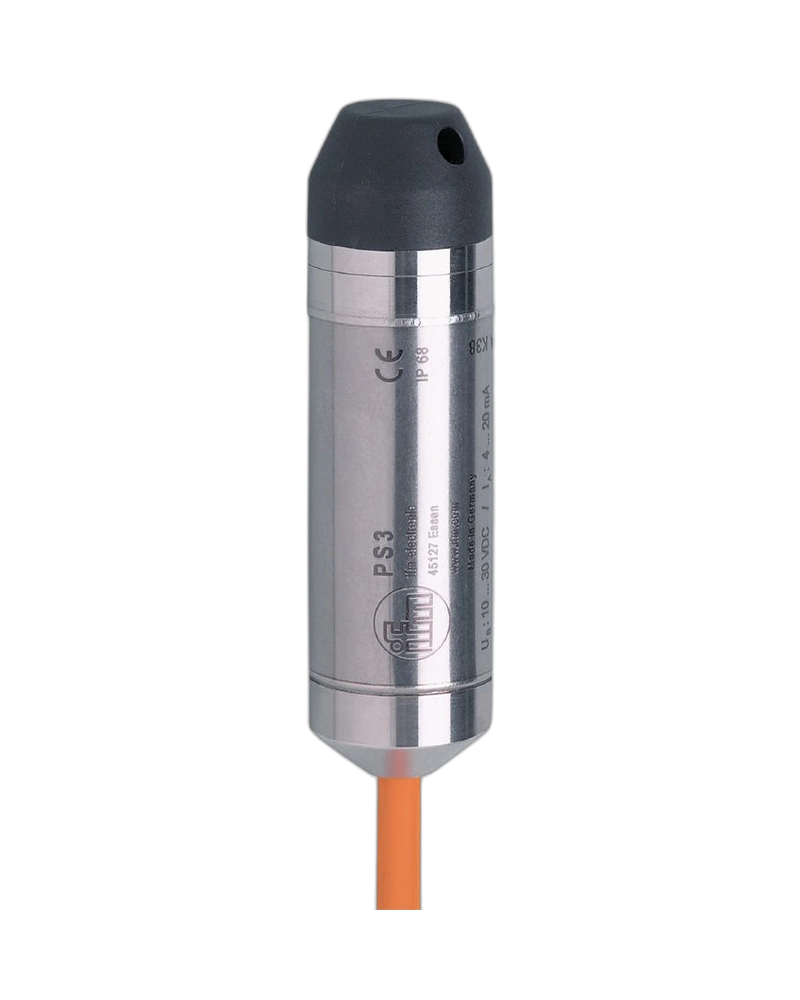

The PS3407 is an IFM hydrostatic submersible pressure transmitter designed for continuous liquid-level measurement. It features a 0.6 bar measuring range and 10 m PUR cable. The transmitter is intended for standard industrial applications involving water and compatible liquids. Its submerged sensing principle provides reliable measurement of liquid head. The device is suitable for tanks, reservoirs, water systems and automated level-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PS3407 measures hydrostatic pressure generated by the liquid column above the sensor. Its 0.6 bar measuring range supports a greater liquid head than the 0.25 bar versions. Continuous pressure measurement provides level information for monitoring and control. The transmitter can be suspended at the required measurement depth. This makes it suitable for automated liquid-level systems.
The PS3407 uses a 10 m PUR cable for submerged installation. PUR construction provides a practical cable solution for standard industrial applications. The cable incorporates pressure compensation for accurate hydrostatic measurement. Its 10 m length allows the transmitter to be installed at greater depths. IFM identifies PS3407 as a standard CE-approved 0.6 bar / 10 m PUR version.
The PS3407 is designed for continuous submerged measurement. Its transmitter body can be positioned inside tanks, wells or reservoirs. The pressure-compensated cable supports stable hydrostatic measurement. The sensor can provide an analogue signal to connected monitoring and control equipment. Its standard industrial construction makes it suitable for general liquid-level applications.
The PS3407 is suitable for water tanks, reservoirs and liquid storage systems. It can be used for pump-control applications based on measured level. The transmitter can also support water-management and wastewater systems. Its 10 m cable is suitable for deeper submerged installations. The product is useful for industrial level monitoring and automation.
0.6 bar measuring range
10 m PUR cable
Hydrostatic measurement
Submersible installation
Standard industrial version
Pressure-compensated cable
Continuous liquid-level measurement
CE-approved product family
Water tanks
Reservoir monitoring
Pump control
Liquid storage
Water management
Wastewater systems
Industrial level measurement
Level alarms
| Specification | PS3407 |
|---|---|
| Product type | Hydrostatic submersible transmitter |
| Model | PS3407 |
| Measuring range | 0...0.6 bar |
| Cable material | PUR |
| Cable length | 10 m |
| Measurement principle | Hydrostatic pressure |
| Application | Liquid level |
| Installation | Submersible |
| Pressure type | Relative |
| Output | Analogue, model-specific |
| Pressure compensation | Internally vented cable |
| Overload pressure | Approx. 4 bar according to IFM family data |
| Cable pull force | Up to 1000 N |
| Approval | CE |
| Media | Compatible liquids |
| Installation depth | Application-dependent |
| Housing | Submersible transmitter |
| Electrical connection | Fixed cable |
| Operating voltage | Refer to datasheet |
| Operating temperature | Refer to datasheet |
| Protection rating | Refer to datasheet |
| Accuracy | Refer to datasheet |
| Response time | Refer to datasheet |
| Accessories | Application-dependent |
| Maintenance | Application-dependent |
