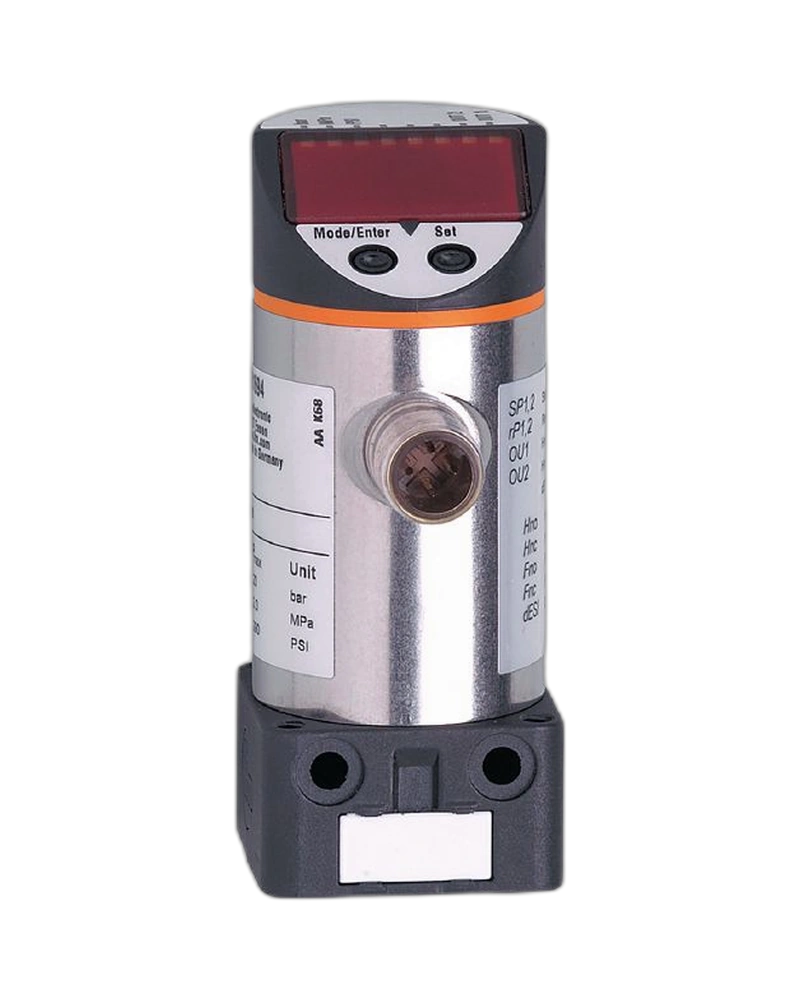

The IFM PNI024 is an industrial pressure sensor with an analogue input for pressure and differential-pressure monitoring. It provides a 0 to 10 bar measuring range for suitable liquids and gases. The device accepts analogue signals from an external pressure transmitter for pressure-difference evaluation. Two digital outputs provide programmable switching functions for alarm and control tasks. Its compact design, integrated display and industrial M12 connection make it suitable for machine and process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PNI024 provides a 0 to 10 bar measuring range for low- and medium-pressure applications. It is suitable for monitoring pressure conditions in industrial equipment. The sensor can evaluate an additional analogue signal from an external transmitter. Programmable switching points allow pressure differences or threshold conditions to be used for machine control. This makes it useful for filter monitoring and pneumatic applications.
The analogue input supports 0 to 10 V and 0/4 to 20 mA signals. This allows the sensor to receive pressure information from an additional pressure transmitter. Two digital outputs can be configured for switching and alarm functions. The sensor can therefore convert pressure information into useful machine-control signals. Its programmable architecture supports different differential-pressure monitoring requirements.
The PNI024 uses a G 1/4 female threaded process connection. Its M12 connector provides secure industrial electrical connection. Gold-plated contacts are intended for industrial applications. The device operates from a 20 to 30 V DC supply. Its compact industrial design allows convenient installation in machine tools and process equipment.
The PNI024 is suitable for filter monitoring and differential-pressure measurement. It can be used in machine tools, hydraulic equipment and industrial automation systems. External pressure transmitters can provide the additional analogue pressure signal. Digital outputs can generate alarms when pressure differences exceed configured limits. This helps support predictive maintenance and machine protection.
0 to 10 bar measuring range
Analogue input
0 to 10 V input
0/4 to 20 mA input
Two digital outputs
Programmable switching points
Integrated display
G 1/4 female connection
M12 connector
Gold-plated contacts
Differential-pressure monitoring
Filter monitoring
Pressure alarm functionality
Industrial liquid and gas compatibility
Compact construction
Filter monitoring
Differential-pressure measurement
Machine tools
Hydraulic systems
Industrial automation
Process equipment
Pressure monitoring
Filter-clogging detection
Maintenance monitoring
Machine protection
| Parameter | Specification |
|---|---|
| Product | PNI024 |
| Product Type | Pressure sensor with analogue input |
| Model | PNI010-RBR14-QFRKG/US/ /V |
| Measuring Range | 0...10 bar |
| Pressure Range | 0...1 MPa |
| Pressure Range | 0...145 psi |
| Pressure Type | Relative |
| Process Connection | G 1/4 female |
| Display | Integrated |
| Digital Outputs | 2 |
| Analogue Input | Yes |
| Voltage Input | 0...10 V |
| Current Input | 0/4...20 mA |
| Input Resistance | Min. 90 kΩ |
| Current Input Load | Max. 300 Ω |
| Analogue Rise Time | 3 ms |
| Operating Voltage | 20...30 V DC |
| Current Consumption | <90 mA |
| Output Current | 2 × 250 mA |
| Wetted Materials | Ceramic/stainless steel/PTFE |
| Contact Material | Gold-plated |
| Application | Industrial liquids and gases |
| Differential Measurement | Yes |
| Filter Monitoring | Yes |
| Switching | Programmable |
| Product Family | PNI02x |
