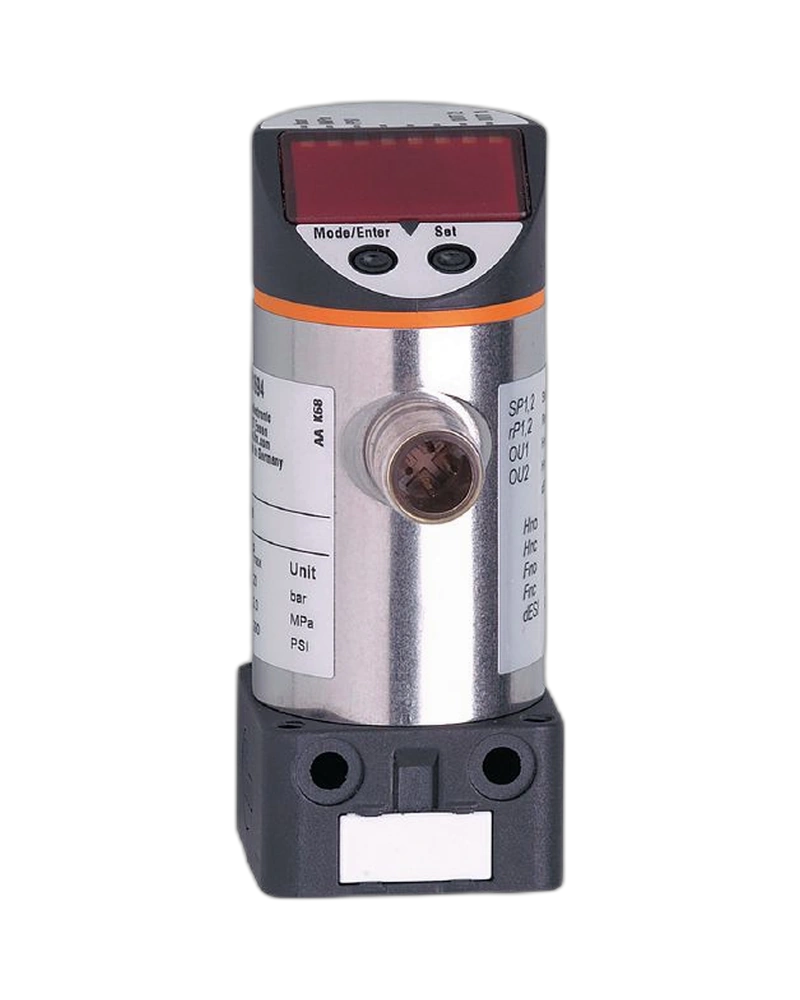

The IFM PNI022 is an industrial pressure sensor with an analogue input designed for pressure and differential-pressure monitoring. It provides a 0 to 100 bar measuring range for industrial liquids and gases. The device provides two digital outputs and accepts analogue signals from an external pressure transmitter. Its integrated display and programmable switching functions allow convenient monitoring and control. The sensor is suitable for filter monitoring, hydraulic systems and machine-tool applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PNI022 provides a 0 to 100 bar pressure range for industrial pressure-monitoring tasks. It can evaluate pressure signals in applications where differential pressure must be determined. The analogue input receives a signal from a compatible pressure transmitter. Programmable switching thresholds allow pressure conditions to be converted into digital control signals. This provides useful monitoring capability for filters and pressure-sensitive machinery.
The sensor accepts 0 to 10 V analogue signals and 0/4 to 20 mA current signals. These signals can be used for evaluating pressure from external measuring devices. Two digital outputs provide programmable switching functions. The sensor can therefore generate control or alarm signals according to pressure conditions. This architecture is particularly useful for differential-pressure and filter-monitoring systems.
The PNI022 features a G 1/4 female threaded process connection. Its M12 connector provides industrial electrical connectivity. Gold-plated contacts support use in industrial applications. The device is designed for liquids and gases within the applicable operating conditions. Its compact construction allows convenient installation in machine and process equipment.
The PNI022 is suitable for monitoring pressure differences across filters and process components. It can be used in machine tools, hydraulic systems and industrial automation. An external pressure transmitter can provide the second pressure signal for differential evaluation. Programmable outputs can trigger maintenance or filter-clogging alarms. Its analogue input architecture provides flexibility for industrial pressure-monitoring systems.
0 to 100 bar measuring range
Analogue pressure input
0 to 10 V input
0/4 to 20 mA input
Two digital outputs
Programmable switching points
Integrated display
G 1/4 female connection
M12 connector
Gold-plated contacts
Differential-pressure evaluation
Filter monitoring
Pressure alarm capability
Industrial liquids and gases
Digital switching functions
Filter monitoring
Hydraulic systems
Machine tools
Differential-pressure monitoring
Industrial automation
Process equipment
Pump systems
Pressure alarms
Filter maintenance
Machine monitoring
| Parameter | Specification |
|---|---|
| Product | PNI022 |
| Product Type | Pressure sensor with analogue input |
| Model | PNI100-SBR14-QFRKG/US/ /V |
| Measuring Range | 0...100 bar |
| Pressure Range | 0...10 MPa |
| Pressure Range | 0...1450 psi |
| Pressure Type | Relative |
| Process Connection | G 1/4 female |
| Display | 4-digit alphanumeric |
| Digital Outputs | 2 |
| Analogue Input | Yes |
| Voltage Input | 0...10 V |
| Current Input | 0/4...20 mA |
| Input Resistance | Min. 90 kΩ |
| Current Input Load | Max. 300 Ω |
| Rise Time | 3 ms |
| Operating Voltage | 20...30 V DC |
| Current Consumption | <90 mA |
| Output Current | 2 × 250 mA |
| Wetted Materials | Ceramic/stainless steel/PTFE |
| Contact Type | Gold-plated |
| Application | Liquids and gases |
| Differential Measurement | Yes |
| Filter Monitoring | Yes |
| Parameterization | Programmable |
| Product Family | PNI02x |
