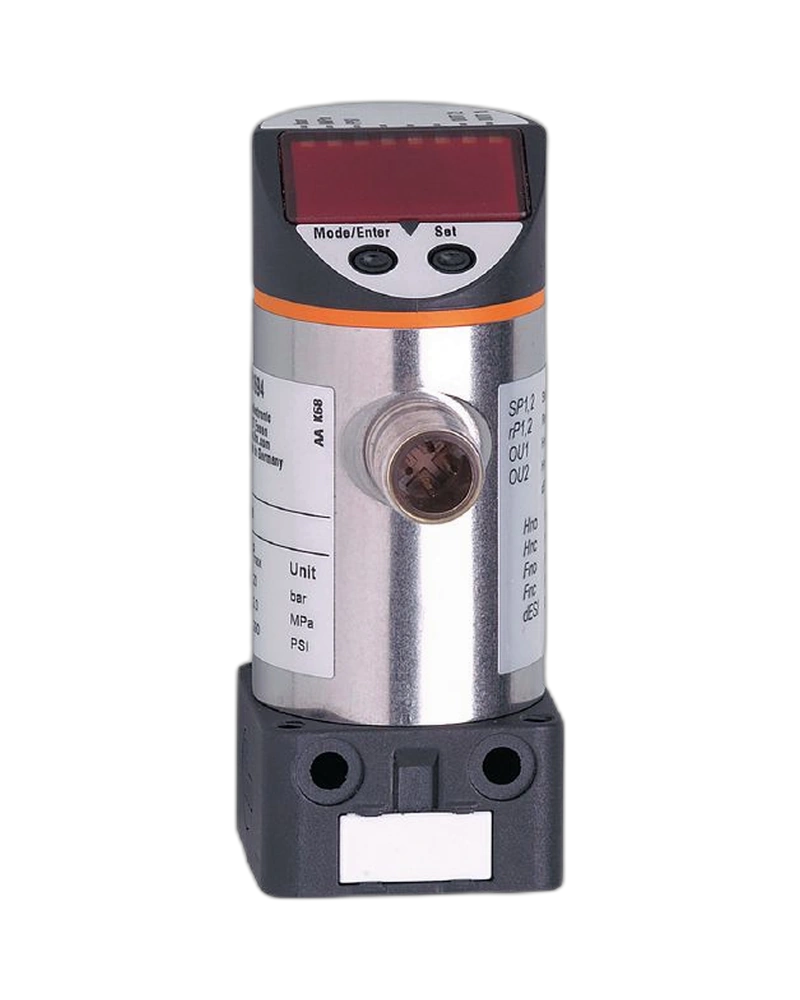

The IFM PN7834 is an electronic pressure sensor with an integrated display for monitoring pneumatic and compressed-air systems. It provides a measuring range of -1 to 10 bar, allowing both vacuum and positive pressure measurement. Two programmable digital outputs provide flexible pressure-dependent switching functions. The four-digit display allows operators to monitor the pressure directly at the installation point. Its compact construction, M12 connection and IP67 protection make it suitable for industrial machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN7834 covers a -1 to 10 bar pressure range for pneumatic and compressed-air applications. It can measure vacuum conditions as well as positive system pressure. The sensor provides configurable switch and reset points for machine-control applications. Switch-point accuracy is specified below ±0.5% of span, with repeatability below ±0.1% under specified conditions. This provides dependable pressure monitoring for industrial automation.
The integrated four-digit alphanumeric display provides clear local pressure indication. Two digital outputs can be programmed for normally open or normally closed operation. Pressure thresholds can be configured according to the machine requirements. The display also provides operating and switching-status information. These functions allow the sensor to combine local visualization with automated pressure control.
The PN7834 uses a G 1/8 internal process connection for integration into compatible pneumatic systems. Its M12 connector provides a standard industrial electrical interface. The sensor operates from 18 to 36 V DC and incorporates protective electrical functions. The housing provides IP67 protection for industrial environments. Its compact design allows installation close to the pressure measurement point.
The PN7834 is suitable for compressed-air networks and pneumatic automation equipment. It can monitor pressure in machines, production lines and pneumatic control systems. The vacuum capability allows it to be used in suction and handling applications. Programmable outputs can provide pressure alarms, machine interlocks and control signals. Its integrated display makes commissioning and maintenance easier.
-1 to 10 bar measuring range
Pressure and vacuum measurement
Four-digit alphanumeric display
Two programmable switching outputs
PNP/NPN electrical design
Normally open / normally closed outputs
Adjustable switching points
Adjustable reset points
Switch-point accuracy below ±0.5%
Repeatability below ±0.1%
G 1/8 internal process connection
M12 electrical connection
18 to 36 V DC operation
Reverse-polarity protection
Overvoltage protection
Short-circuit protection
Integrated watchdog
IP67 protection
Compact industrial housing
Compressed-air networks
Pneumatic automation
Vacuum applications
Machine tools
Industrial machinery
Pressure control
Pneumatic valves
Material handling
Pressure alarms
Machine protection
| Parameter | Specification |
|---|---|
| Product | PN7834 |
| Product Type | Pressure sensor with display |
| Model | PN-010-RBR18-QFRKG/US/ /V |
| Measuring Range | -1...10 bar |
| Pressure Range | -0.1...1 MPa |
| Pressure Range | -14.5...145 psi |
| Pressure Type | Relative pressure / vacuum |
| Application | Compressed air |
| Process Connection | G 1/8 female |
| Display | 4-digit alphanumeric |
| Status Display | LED indicators |
| Digital Outputs | 2 |
| Output Signal | Switching |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC programmable |
| Operating Voltage | 18...36 V DC |
| Current Consumption | <50 mA |
| Output Current | 250 mA |
| Switching Frequency | <170 Hz |
| Short-Circuit Protection | Yes |
| Reverse Polarity | Yes |
| Overvoltage Protection | Yes |
| Switch Point Accuracy | <±0.5% span |
| Repeatability | <±0.1% span |
| Protection Rating | IP67 |
