The IFM PN7699 is an electronic pressure sensor with integrated display designed for monitoring both vacuum and positive pressure conditions. Its -1 to 1 bar measuring range makes it suitable for pneumatic applications involving pressure and vacuum. The sensor provides programmable switching functionality for pressure-dependent machine control. Its integrated display enables convenient local monitoring of measured values. The compact construction and digital configuration capabilities make it suitable for automated pneumatic systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN7699 is designed for applications where pressure can vary from vacuum conditions to positive pressure. Its -1 to 1 bar range provides monitoring across both sides of atmospheric pressure. This makes the sensor suitable for suction, vacuum and pneumatic applications. Configurable switching thresholds can be used for vacuum or pressure control. The device provides a compact solution for combined pressure and vacuum monitoring.
The integrated digital display provides local visualization of pressure and vacuum values. Operators can inspect operating conditions directly at the machine. Programmable switching functions allow pressure-dependent control signals to be generated. Switching thresholds can be configured according to the application. Digital parameterization provides convenient setup and adjustment.

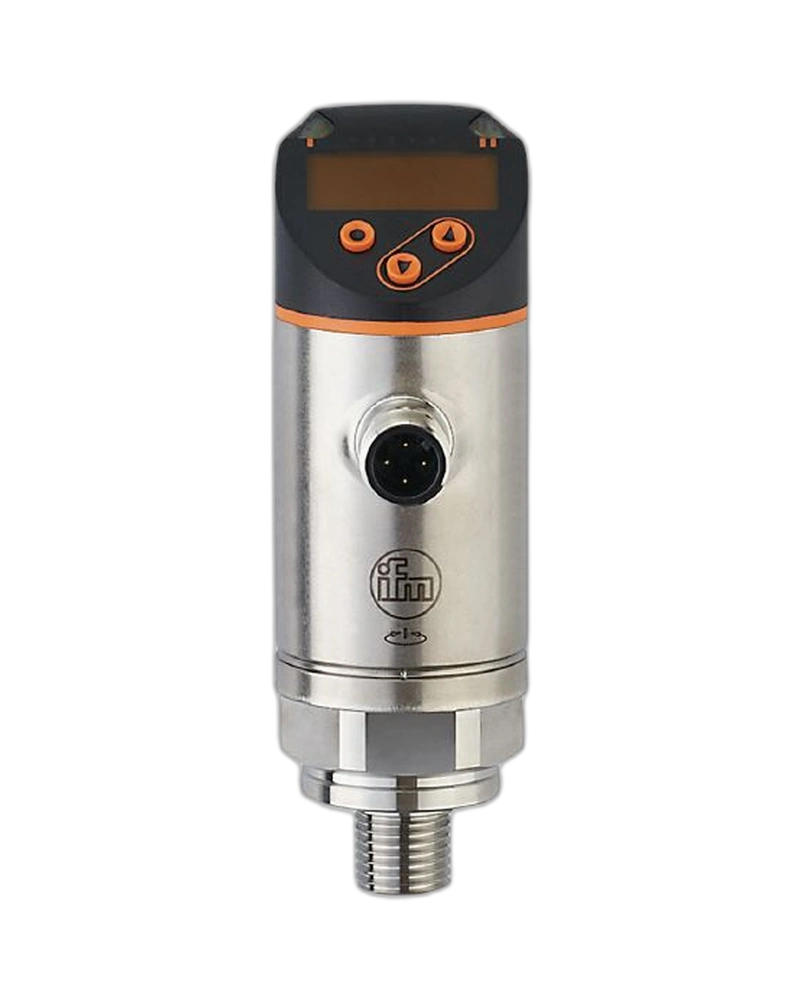

The PN7699 features a compact industrial housing suitable for direct installation. Its REN14 process connection supports compatible pressure and vacuum systems. The electrical interface provides connection to automation equipment. The compact design allows installation near suction cups, pneumatic circuits and pressure lines. Its industrial construction supports continuous machine operation.
The PN7699 is suitable for vacuum handling and pneumatic automation systems. It can monitor suction pressure in gripping equipment and material-handling machinery. It is also suitable for pneumatic circuits where pressure and vacuum conditions must be detected. Switching functions can control valves and machine operations. The integrated display simplifies setup and maintenance.
-1 to 1 bar measuring range
Pressure and vacuum monitoring
Integrated digital display
Programmable switching
Digital parameterization
Diagnostic capability
REN14 process connection
M12 electrical connection
Compact housing
Local pressure indication
Vacuum monitoring
Pressure alarm functionality
Machine-control capability
Pneumatic automation compatibility
Continuous monitoring
Vacuum gripping systems
Pneumatic automation
Suction equipment
Material handling
Industrial robotics
Vacuum generators
Pneumatic machinery
Pressure monitoring
Machine automation
Production equipment
| Parameter | Specification |
|---|---|
| Product | PN7699 |
| Product Type | Pressure sensor with display |
| Model | PN-1-1BREN14-QFRKG/US/ /V |
| Measuring Range | -1...1 bar |
| Measuring Range | -100...100 kPa |
| Measuring Range | -14.5...14.5 psi |
| Pressure Type | Relative |
| Measurement | Pressure and vacuum |
| Display | Digital |
| Switching Function | Programmable |
| Process Connection | REN14 |
| Electrical Connection | M12 |
| Communication | Digital |
| Parameterization | Electronic |
| Diagnostics | Supported |
| Switching Points | Configurable |
| Housing | Compact industrial |
| Installation | Direct |
| Application | Pressure/vacuum |
| Pressure Monitoring | Continuous |
| Local Display | Yes |
| Vacuum Monitoring | Yes |
| Machine Control | Yes |
| Automation Integration | Yes |
| Product Family | PN pressure sensors |
