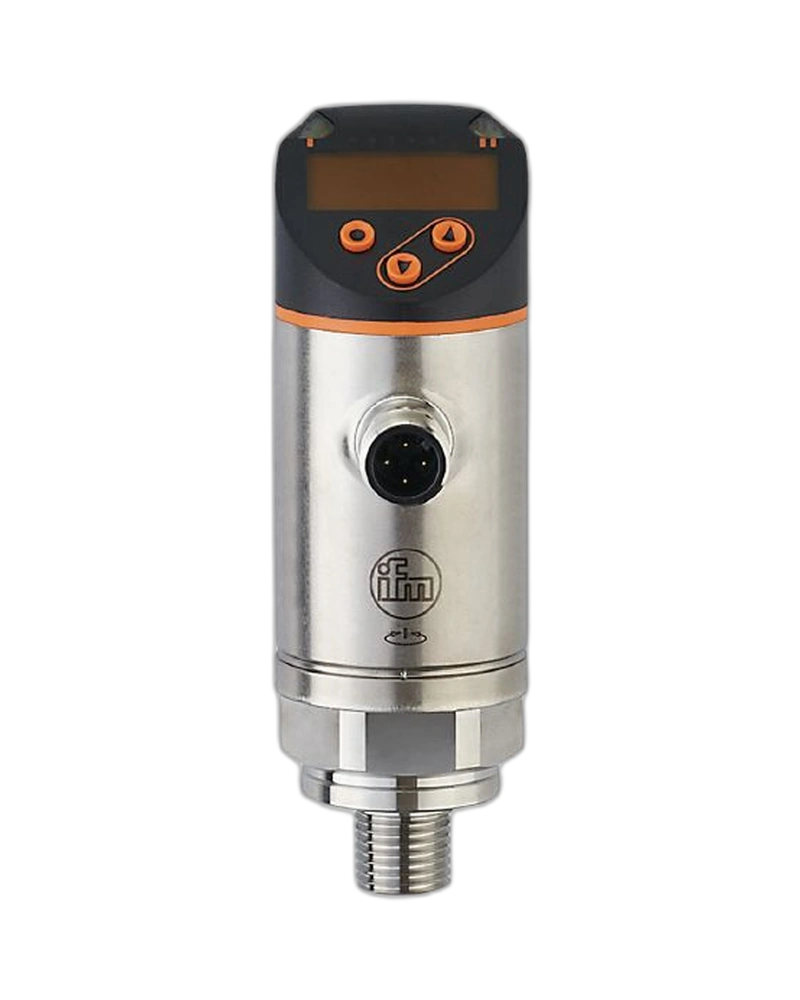

The IFM PN7697 is a compact low-pressure sensor with an integrated digital display for pressure monitoring up to 1 bar. It is designed for applications requiring sensitive monitoring of low pneumatic pressure conditions. Programmable switching functions allow pressure thresholds to be used for machine control and alarms. The REN14 process connection provides compatibility with suitable industrial pressure installations. Its digital configuration and compact construction make it suitable for modern pneumatic automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN7697 provides a 0 to 1 bar measuring range for low-pressure applications. It can monitor small pressure changes in pneumatic and industrial systems. Programmable switching thresholds allow the sensor to react to defined pressure conditions. Local pressure information is provided through the integrated display. The sensor is suitable for applications where compact low-pressure monitoring is required.
The integrated digital display provides convenient local pressure indication. Operators can quickly inspect the measured value during operation or maintenance. Programmable switching functions allow direct pressure-based control. Switching thresholds can be adjusted to suit the connected equipment. Digital configuration supports flexible setup and commissioning.
The PN7697 uses a compact industrial housing suitable for direct machine installation. Its REN14 process connection supports compatible pressure systems. The electrical interface provides secure connection to automation equipment. The sensor can be installed close to the pressure measurement point. Its compact construction is suitable for space-constrained machines.
The PN7697 is suitable for low-pressure pneumatic automation. It can be used for compressed-air circuits, pressure regulators and machine monitoring. The display simplifies local pressure verification. Switching outputs can provide alarms and control functions. Its compact design allows convenient integration into automated equipment.
0 to 1 bar measuring range
Low-pressure measurement
Integrated digital display
Programmable switching functions
Digital parameterization
Diagnostic capability
REN14 process connection
M12 electrical connection
Compact housing
Local pressure indication
Pressure alarm functionality
Machine-control capability
Continuous monitoring
Industrial automation compatibility
Pneumatic application suitability
Low-pressure pneumatic systems
Compressed-air circuits
Pressure regulators
Machine automation
Production machinery
Industrial equipment
Machine tools
Pressure monitoring
Pressure-control systems
Process equipment
| Parameter | Specification |
|---|---|
| Product | PN7697 |
| Product Type | Pressure sensor with display |
| Model | PN-001BREN14-QFRKG/US/ /V |
| Measuring Range | 0...1 bar |
| Measuring Range | 0...100 kPa |
| Measuring Range | 0...14.5 psi |
| Pressure Type | Relative |
| Display | Digital |
| Switching Function | Programmable |
| Process Connection | REN14 |
| Electrical Connection | M12 |
| Communication | Digital |
| Parameterization | Electronic |
| Diagnostics | Supported |
| Switching Points | Configurable |
| Housing | Compact industrial |
| Installation | Direct |
| Application | Low-pressure |
| Pressure Monitoring | Continuous |
| Local Display | Yes |
| Pressure Alarm | Yes |
| Machine Control | Yes |
| Automation Integration | Yes |
| Product Family | PN pressure sensors |
