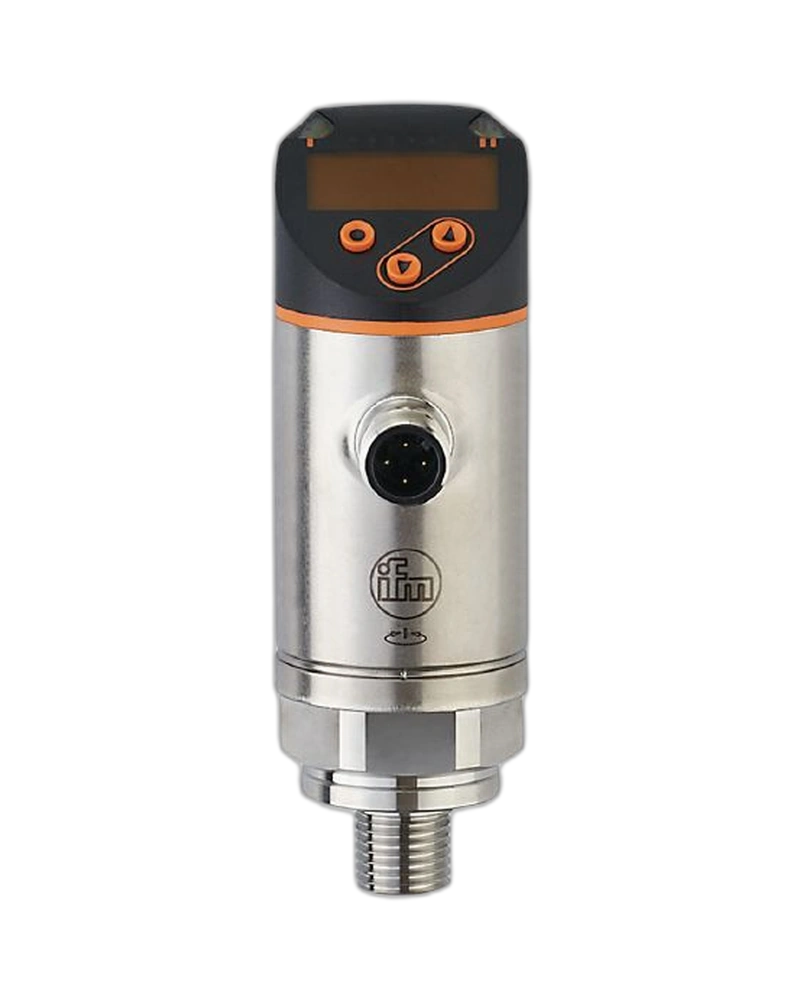

The IFM PN7694 is an electronic pressure sensor with an integrated digital display for monitoring pressure up to 10 bar. It is designed for pneumatic and industrial applications where local indication and pressure-based switching are required. Programmable switching functions allow direct control of connected machine equipment. Its REN14 process connection supports suitable industrial pressure installations. The compact sensor provides a convenient combination of pressure measurement, display and automated control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN7694 is designed for a 0 to 10 bar pressure range. It can be used to monitor pneumatic pressure and general industrial process conditions. Configurable switching thresholds allow pressure conditions to trigger machine functions. The measured pressure can be checked locally using the integrated display. Digital configuration provides flexibility for different automation applications.
The digital display allows operators to view the current pressure at the sensor. It simplifies maintenance and pressure verification during machine operation. Programmable switching outputs can be configured according to the application. Pressure thresholds can be used for alarms, interlocks and control functions. Digital parameterization makes commissioning easier.
The PN7694 uses a compact housing designed for industrial machine installation. Its REN14 process connection provides connection to suitable pressure lines. The electrical connection supports reliable integration with control systems. Its compact construction allows installation close to the process. The industrial housing is suitable for continuous machine operation.
The PN7694 is suitable for pneumatic pressure monitoring. It can be used in compressed-air systems, machine tools and production equipment. The display provides convenient local pressure indication. Programmable switching functions support machine-control and alarm applications. Its compact design is suitable for automated machinery.
0 to 10 bar measuring range
Integrated digital display
Programmable switching
Pressure alarm function
Digital parameterization
Diagnostic capability
REN14 process connection
M12 electrical connection
Compact housing
Local pressure indication
Machine-control functionality
Industrial automation compatibility
Continuous pressure monitoring
Easy commissioning
Industrial pressure measurement
Compressed-air systems
Pneumatic equipment
Machine tools
Production machinery
Industrial automation
Pressure-control systems
Process monitoring
Manufacturing equipment
Machine protection
Pneumatic automation
| Parameter | Specification |
|---|---|
| Product | PN7694 |
| Product Type | Pressure sensor with display |
| Model | PN-010-REN14-QFRKG/US/ /V |
| Measuring Range | 0...10 bar |
| Measuring Range | 0...1 MPa |
| Measuring Range | 0...145 psi |
| Pressure Type | Relative |
| Display | Digital |
| Switching Function | Programmable |
| Process Connection | REN14 |
| Electrical Connection | M12 |
| Communication | Digital |
| Parameterization | Electronic |
| Diagnostics | Supported |
| Switching Points | Configurable |
| Housing | Industrial compact |
| Installation | Direct |
| Application | Pneumatic/industrial |
| Pressure Monitoring | Continuous |
| Local Display | Yes |
| Alarm Function | Yes |
| Machine Control | Yes |
| Automation Integration | Yes |
| Product Family | PN pressure sensors |
