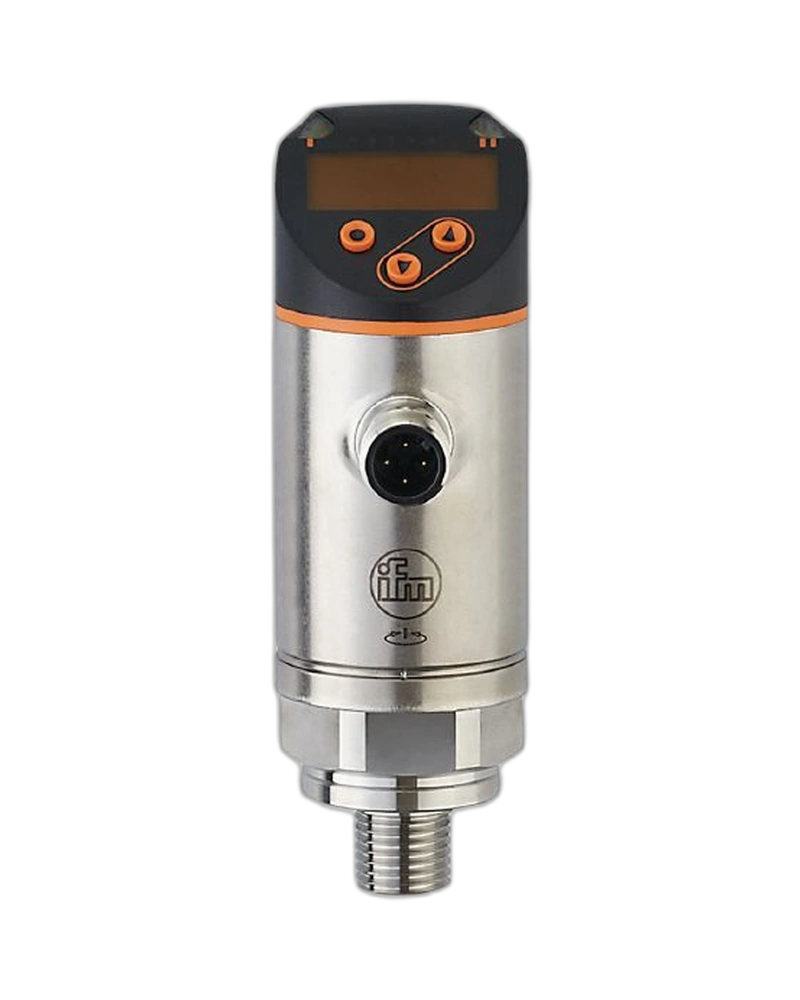

The IFM PN7692 is a digital pressure sensor with an integrated display designed for industrial pressure measurement up to 100 bar. It provides local pressure indication together with programmable switching functions for automated equipment. The sensor is suitable for hydraulic and general industrial pressure-monitoring applications. Its compact construction supports installation directly at the measurement point. Digital parameterization and diagnostic capabilities help simplify commissioning, maintenance and system integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN7692 provides a 0 to 100 bar measuring range suitable for many industrial pressure applications. It can continuously monitor pressure in hydraulic circuits and machine systems. Configurable switching thresholds allow pressure limits to be used for control and alarm functions. Pressure information can be used by connected automation systems for process monitoring. The sensor provides a practical combination of measurement, indication and switching.
The integrated digital display provides clear local pressure indication. Operators can inspect the pressure directly without installing a separate local gauge. Programmable switching functions allow the sensor to control connected machine functions. Switching thresholds can be adapted to the application. Digital configuration provides flexibility during commissioning and maintenance.
The PN7692 is designed with a compact industrial housing. Its SEN14 process connection supports compatible pressure-system installation. The electrical interface provides reliable connection to automation systems. The sensor can be mounted close to the process for direct pressure monitoring. Its industrial construction supports continuous operation in production environments.
The PN7692 is suitable for hydraulic and industrial pressure monitoring. It can be used with pumps, hydraulic actuators and machine pressure circuits. The display simplifies local maintenance and troubleshooting. Programmable outputs can provide pressure alarms and machine-control functions. Its digital capabilities make it suitable for modern automation systems.
0 to 100 bar measuring range
Integrated pressure display
Programmable switching function
Digital parameterization
Diagnostic capability
Local pressure indication
SEN14 process connection
M12 connection
Compact construction
Hydraulic pressure monitoring
Pressure alarm function
Machine-control capability
Industrial automation integration
Continuous measurement
Industrial-duty housing
Hydraulic pressure systems
Pump monitoring
Hydraulic actuators
Machine tools
Industrial automation
Production machinery
Pressure-control systems
Process equipment
Manufacturing systems
Machine monitoring
| Parameter | Specification |
|---|---|
| Product | PN7692 |
| Product Type | Pressure sensor with display |
| Model | PN-100-SEN14-QFRKG/US/ /V |
| Measuring Range | 0...100 bar |
| Measuring Range | 0...10 MPa |
| Measuring Range | 0...1450 psi |
| Pressure Type | Relative |
| Display | Digital |
| Switching Function | Programmable |
| Process Connection | SEN14 |
| Electrical Connection | M12 |
| Communication | Digital |
| Parameterization | Electronic |
| Diagnostics | Supported |
| Switching Points | Configurable |
| Housing | Industrial |
| Installation | Direct/process |
| Application | Industrial pressure |
| Pressure Monitoring | Continuous |
| Local Indication | Yes |
| Alarm Function | Yes |
| Machine Control | Yes |
| Industrial Automation | Yes |
| Product Family | PN pressure sensors |
