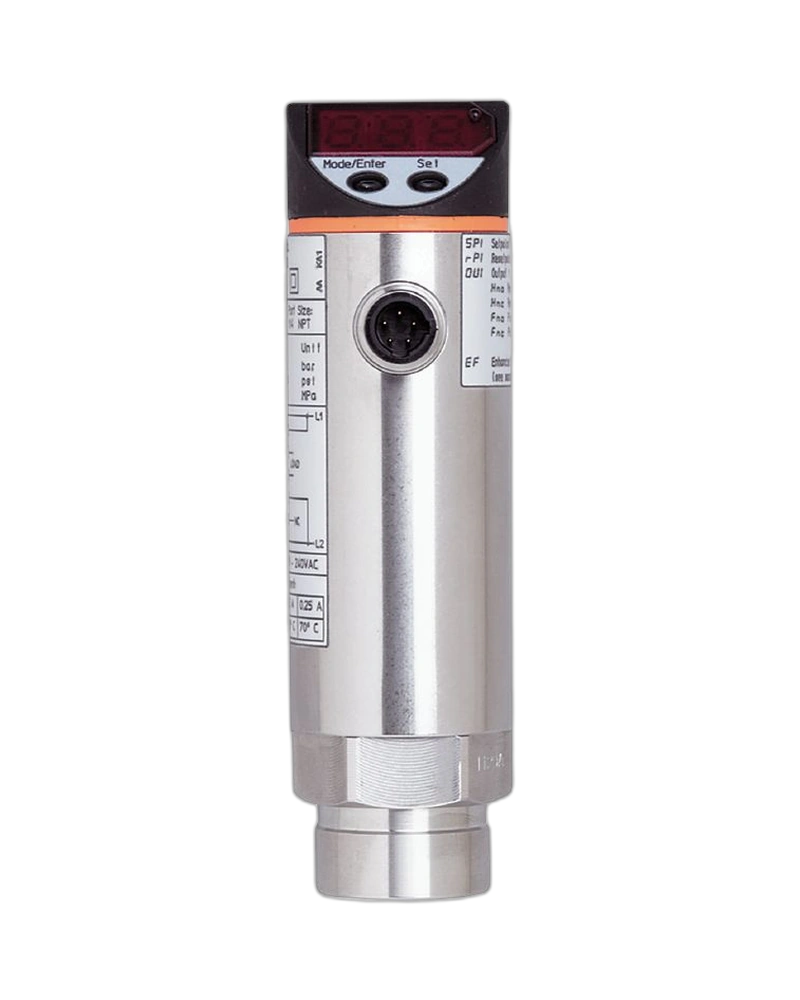

IFM PN4222 is a pressure sensor with display designed for relative-pressure measurement from 0...100 bar. It features a 1/4-inch NPT female process connection, digital display and one switching output for pressure-limit monitoring. Its industrial construction makes it suitable for hydraulic systems, industrial machinery, fluid handling equipment, process monitoring and automated pressure-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN4222 is designed for reliable pressure measurement in industrial systems operating up to 100 bar. Its integrated display provides direct pressure information at the installation point, while the switching output allows pressure conditions to be communicated to control systems. The sensor provides a compact solution for pressure monitoring and machine automation.
PN4222 combines pressure sensing, digital pressure indication and switching control. The 1/4-inch NPT female process connection supports installation into compatible industrial pressure circuits. Its display helps operators monitor current pressure, while the programmable switching function can be used to detect pressure limits and support automated machine responses.
The 0...100 bar range makes PN4222 suitable for general industrial and hydraulic pressure monitoring. It can be used in machinery, process equipment and fluid systems where pressure must be monitored and controlled. The sensor supports local diagnostics and automated pressure-limit detection, helping maintain stable operating conditions.
PN4222 is a practical option for applications requiring 100 bar pressure measurement with integrated display and switching. Its compact design and NPT connection support convenient industrial installation. The combination of direct pressure indication and digital switching functionality provides useful flexibility for machine builders, maintenance teams and automation system integrators.
0...100 bar measuring range
Relative pressure measurement
Integrated digital display
1 digital switching output
1/4-inch NPT female connection
Programmable pressure limit
Industrial pressure monitoring
Suitable for liquids and gases
Compact construction
Machine automation capability
Hydraulic machinery
Industrial pressure monitoring
Fluid handling
Machine automation
Process equipment
Pressure control
Factory automation
Industrial machinery
Pressure-limit monitoring
Hydraulic systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | PN4222 |
| Product Type | Pressure sensor with display |
| Measuring Range | 0...100 bar |
| Pressure Type | Relative pressure |
| Process Connection | 1/4-inch NPT female |
| Application | Industrial applications |
| Media | Liquids and gases |
| Display | 7-segment digital display |
| Output | 1 digital output |
| Pressure Rating | 300 bar |
