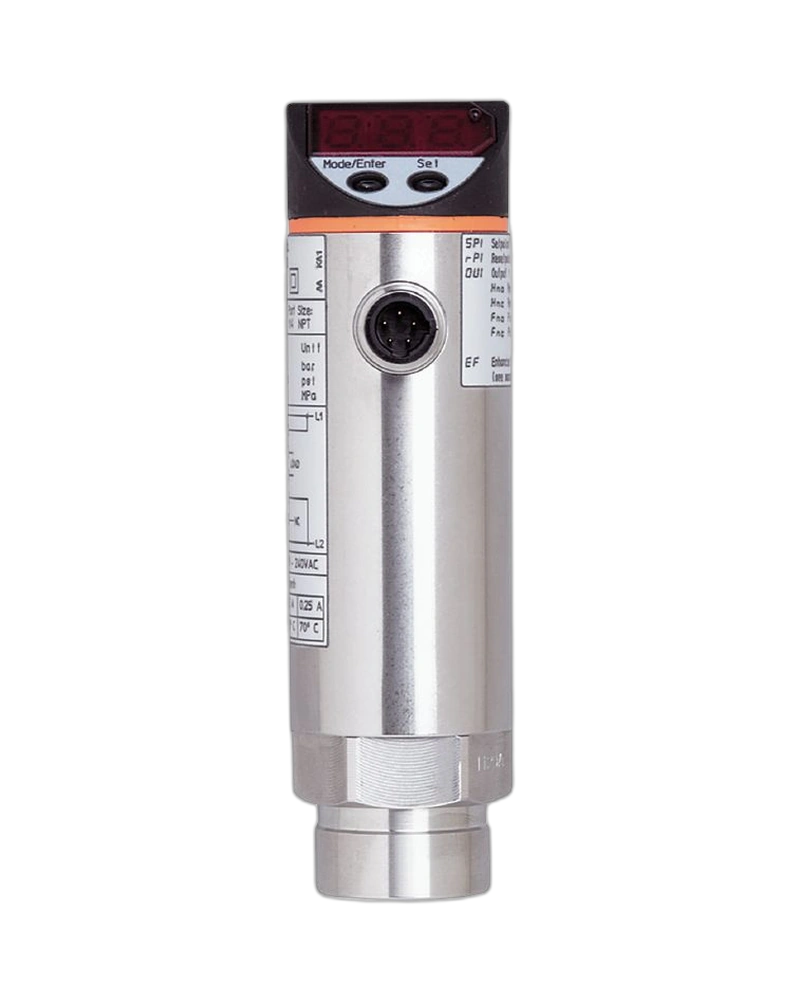

IFM PN4220 is a high-pressure sensor with display designed for relative-pressure measurement from 0...400 bar. It provides one digital switching output and uses a 1/4-inch NPT female process connection. The sensor is designed for industrial pressure monitoring of liquids and gases, making it suitable for hydraulic equipment, machinery, pressure control systems and demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PN4220 is designed for industrial pressure monitoring where reliable high-pressure detection is required. Its 0...400 bar measuring range supports demanding hydraulic and industrial applications. The integrated seven-segment display provides local pressure indication, allowing operators to monitor system conditions directly at the installation point and simplifying machine commissioning and maintenance.
The PN4220 combines pressure sensing, local digital indication and switching functionality in one compact device. Its 1/4-inch NPT female process connection supports compatible pressure installations. The sensor provides one digital output for pressure-limit monitoring and allows the switching point to be configured according to application requirements.
With a 0...400 bar measuring range, PN4220 is suitable for high-pressure industrial machinery and hydraulic systems. It can monitor pressure conditions in equipment handling liquids and gases. The sensor supports pressure-limit detection and machine control, helping automation systems respond to changing pressure conditions and supporting reliable operation.
PN4220 is suitable for applications requiring high-pressure measurement with simple local indication and switching control. Its 400 bar range and industrial design provide useful capability for demanding pressure systems. The NPT process connection makes it suitable for compatible installations, while the integrated display helps operators quickly verify system pressure.
0...400 bar measuring range
Relative pressure measurement
Integrated seven-segment display
1 digital output
1/4-inch NPT female process connection
Programmable switching point
Designed for liquids and gases
Industrial pressure monitoring
High-pressure measurement
Compact pressure sensor
Hydraulic systems
High-pressure machinery
Industrial equipment
Pressure-limit monitoring
Machine automation
Industrial process equipment
Hydraulic power units
Pressure control systems
Liquid pressure monitoring
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | PN4220 |
| Product Type | Pressure sensor with display |
| Measuring Range | 0...400 bar |
| Pressure Type | Relative pressure |
| Measuring Element | Pressure measuring cell |
| Process Connection | 1/4-inch NPT female |
| Application | Industrial applications |
| Media | Liquids and gases |
| Display | 7-segment digital display |
| Output | 1 digital output |
