The nominal sensing distance is 2 mm.
The nominal sensing distance is 2 mm. A switching frequency of 1 kHz.
The thermal drift Sr is < 10%, with repeat accuracy of 5% (UB 24V Ta=23 °C ±5 °C).
The operating voltage is 10 - 30 VDC, with load current of ≤ 100 mA. No-load supply current is ≤ 30 mA and leakage current is limited to ≤ 10 µA.
Maximum ripple is ≤10%. Inductive load protection is Yes. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP 67.

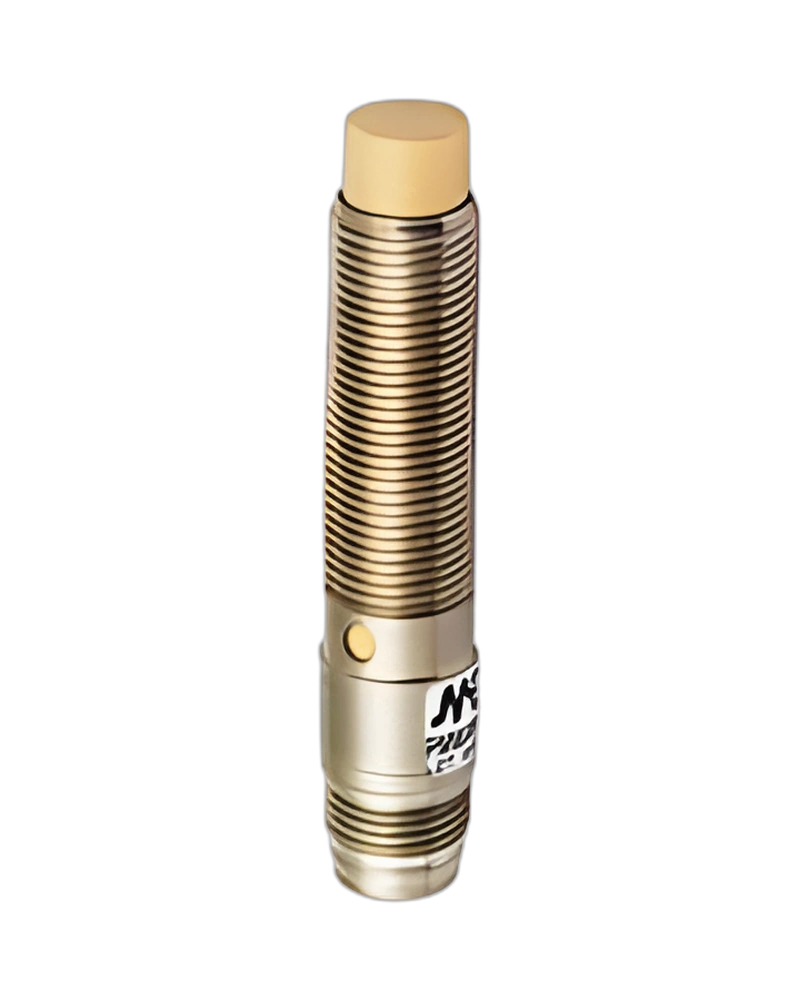

The housing is Nickel-plated brass, while the active head uses PBT. Dimensions are M12 x 1 / L = 73,3 mm and the connection is M12 Connector.
Weight is 29 g.
Tightening torque is 10 nm.
The operating temperature range is -25 °C…+70 °C.
The manufacturer part number is PM3/00-1H. This model is manufactured by M.D. Micro Detectors. Installation is Shielded.
Shielded is Operating temperature:. Time to availability is 100 ms.
For electrical integration, it provides operating voltage 10 - 30 VDC, switching frequency 1 kHz. The physical configuration includes Nickel-plated brass housing, dimensions M12 x 1 / L = 73,3 mm, M12 Connector connection. It is rated IP 67 for an operating temperature range of -25 °C…+70 °C.
| Specification | Details |
|---|---|
| Model | PM3/00-1H |
| Manufacturer part number | PM3/00-1H |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 1 kHz |
| Weight | 29 g |
| Active head material | PBT |
| Housing material | Nickel-plated brass |
| Tightening torque | 10 nm |
| Installation | Shielded |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | M12 x 1 / L = 73,3 mm |
| Connection | M12 Connector |
| Hysteresis | 1 … 20% |
| Nominal sensing distance | 2 mm |
| Operating distance | 0…1,6 mm |
| Standard target | 12x12 mm FE360 |
| Thermal drift Sr | < 10% |
| Repeat accuracy | 5% (UB 24V Ta=23 °C ±5 °C) |
| Degree of protection | IP 67 |
| Time to availability | 100 ms |
| Inductive load protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10 - 30 VDC |
| Load current | ≤ 100 mA |
| No-load supply current | ≤ 30 mA |
| Leakage current | ≤ 10 µA |
