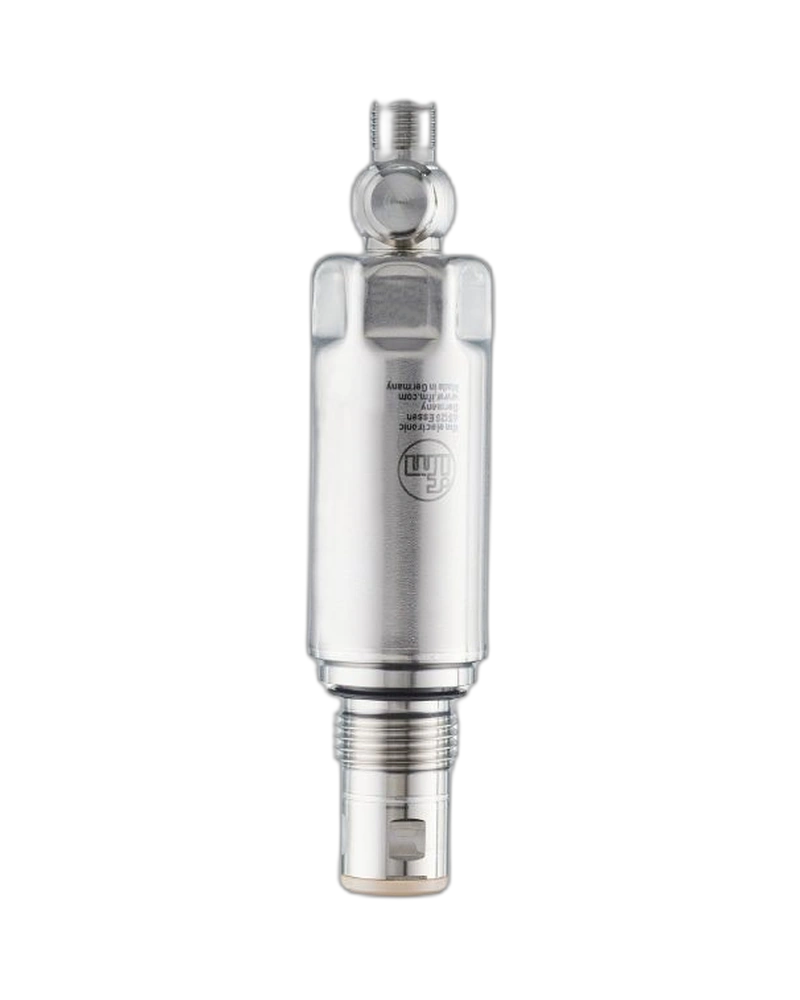

IFM PM1609 is a flush pressure sensor designed for reliable pressure and vacuum monitoring in hygienic and process applications. Its -1 to 1 bar measuring range allows measurement across both vacuum and positive pressure conditions. Analogue and IO-Link connectivity provides flexible integration into process automation, monitoring and industrial control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1609 provides pressure measurement for applications involving both vacuum and positive pressure. Its -1 to 1 bar range is suitable for process systems operating around atmospheric pressure. The flush sensor design supports process-friendly installation while analogue and IO-Link interfaces simplify integration with industrial automation systems.
-1 to 1 bar measuring range
Pressure and vacuum measurement
Flush sensor design
4–20 mA analogue output
IO-Link communication
Suitable for hygienic applications
Reliable process monitoring
Compact installation
Flexible automation integration
Suitable for continuous operation
Vacuum processes
Hygienic equipment
Food processing
Process automation
Pressure monitoring
Vacuum monitoring
Industrial machinery
Process control
PM1609 is a practical choice for applications requiring both vacuum and positive pressure monitoring. Its flush construction is suited to process environments, while the -1 to 1 bar range provides flexible measurement. Analogue and IO-Link connectivity supports modern process automation requirements.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | PM1609 |
| Product Type | Flush pressure sensor |
| Measuring Range | -1...1 bar |
| Relative Pressure Range | -1...1 bar |
| Analogue Output | 4...20 mA |
| Communication | IO-Link |
| Supply Voltage | 18...30 V DC |
| Application | Hygienic and process systems |
| Design | Flush pressure sensor |
