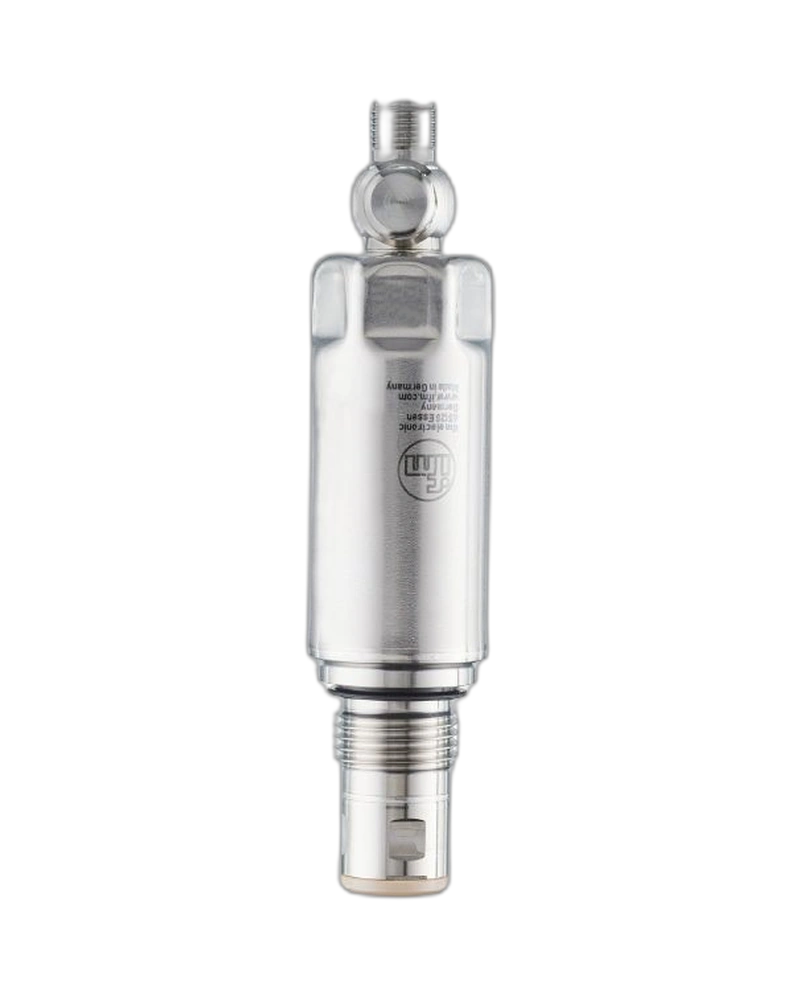

The IFM PM1606 is a low-pressure flush sensor designed for hygienic process measurement. It provides a factory range of 0...2.5 bar and supports digital IO-Link communication. Scalable 4...20 mA output allows connection to conventional automation systems. Its ceramic-capacitive measuring cell supports stable and repeatable pressure monitoring. PM1606 is suitable for low-pressure process control, food processing and automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1606 is designed for low-pressure applications with a factory range of 0...2.5 bar. Its documented relative range extends from -0.125 to 2.5 bar. The sensor provides fine digital resolution through IO-Link. This allows pressure changes to be monitored accurately in automated processes. Its overload capability helps protect the measuring system during pressure fluctuations.
The flush process configuration supports hygienic installations. Stainless-steel construction provides durability in industrial environments. The sensor can be integrated into process piping and machinery. Its design is suitable for cleaning-intensive production systems. The compact form supports practical installation in restricted spaces.
PM1606 supports scalable 4...20 mA output and IO-Link. IO-Link provides digital process values, parameterisation and diagnostics. The sensor can connect to PLCs and modern industrial communication systems. Digital data supports improved monitoring and maintenance. This makes PM1606 suitable for connected process automation.
0...2.5 bar factory range
Ceramic-capacitive measuring cell
Flush sensing
4...20 mA output
IO-Link communication
Fine digital resolution
Stainless-steel construction
Hygienic process design
Digital diagnostics
Parameterisation
PLC integration
Continuous monitoring
Low-pressure process monitoring
Food production
Beverage equipment
Filling machines
Liquid handling
Pump monitoring
Process automation
Hygienic machinery
PLC control
Machine monitoring
Pressure regulation
Industrial instrumentation
| Specification | PM1606 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1606 |
| Factory range | 0...2.5 bar |
| Relative range | -0.125...2.5 bar |
| Measuring cell | Ceramic-capacitive |
| Overload | 20 bar |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal | Scalable |
| Process connection | G 1 |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Application | Hygienic |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Device temperature | IO-Link |
| Installation | Process mounted |
| PLC integration | Supported |
| Automation | Analogue/digital |
| Mounting | Process connection |
| Primary function | Low-pressure measurement |
| Typical use | Process automation |
