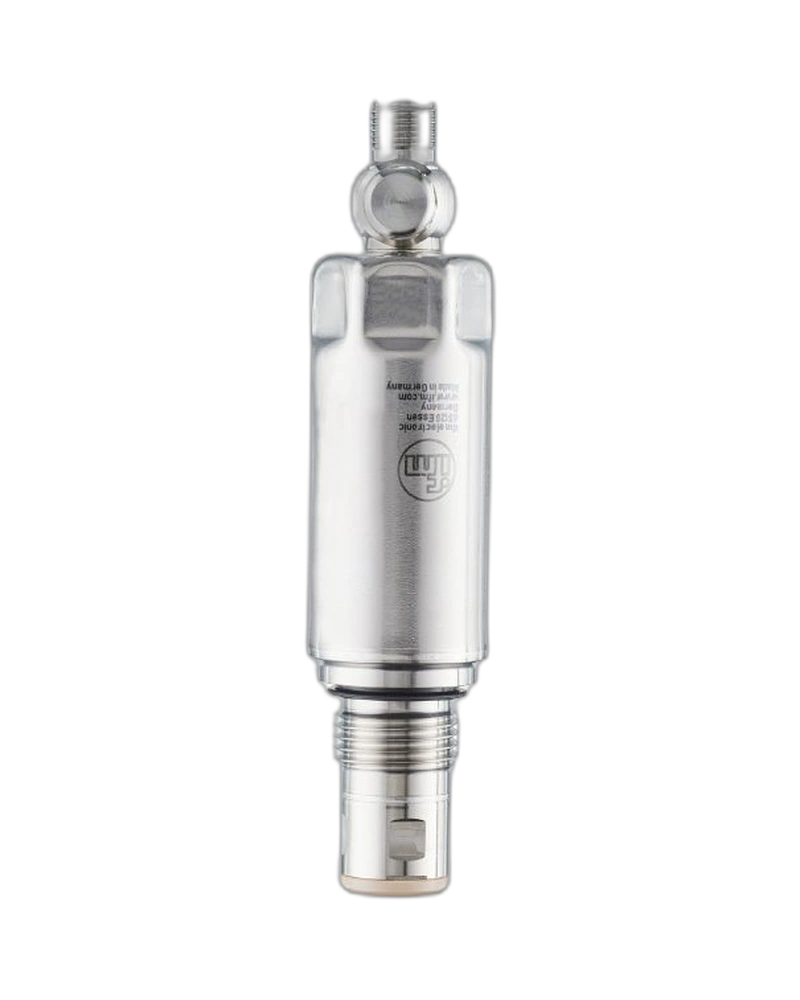

The IFM PM1605 is a flush pressure sensor designed for reliable hygienic process measurement. It provides a factory default range of 0...4 bar and supports scalable analogue output. IO-Link communication enables digital configuration, monitoring and diagnostics. Its ceramic-capacitive measuring cell is designed for stable industrial pressure measurement. PM1605 is suitable for food, beverage, process machinery and automated pressure-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1605 provides a 0...4 bar factory range for low-to-medium pressure applications. Its documented relative range extends from -1 to 4 bar. The ceramic-capacitive cell supports stable measurement under industrial operating conditions. IO-Link provides digital pressure values and configuration options. The sensor is suitable for continuous monitoring and automated process control.
PM1605 is designed for hygienic process applications. Its flush process arrangement supports clean installation. Stainless-steel construction provides mechanical durability. The sensor can be integrated into process lines and production equipment. Its compact design supports reliable operation in industrial machinery.
The sensor provides scalable 4...20 mA output. IO-Link provides digital communication and parameterisation. It can connect to conventional PLCs or intelligent automation systems. Diagnostic information can support maintenance and troubleshooting. The sensor therefore fits both existing and modern automation architectures.
0...4 bar factory range
Ceramic-capacitive measuring cell
4...20 mA output
IO-Link communication
Flush process design
Stainless-steel housing
Digital diagnostics
Parameterisation
Process data access
Hygienic construction
PLC integration
Industrial reliability
Process pressure monitoring
Food and beverage systems
Filling equipment
Pump monitoring
Liquid handling
Production machinery
Hygienic process lines
PLC automation
Pressure control
Machine monitoring
Condition monitoring
Industrial instrumentation
| Specification | PM1605 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1605 |
| Factory range | 0...4 bar |
| Relative range | -1...4 bar |
| Measuring cell | Ceramic-capacitive |
| Overload | 30 bar |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal | Scalable |
| Process connection | G 1 |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Application | Hygienic |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Device temperature | IO-Link |
| Installation | Process mounted |
| PLC integration | Supported |
| Automation | Analogue/digital |
| Mounting | Process connection |
| Primary function | Pressure measurement |
| Typical use | Process control |
