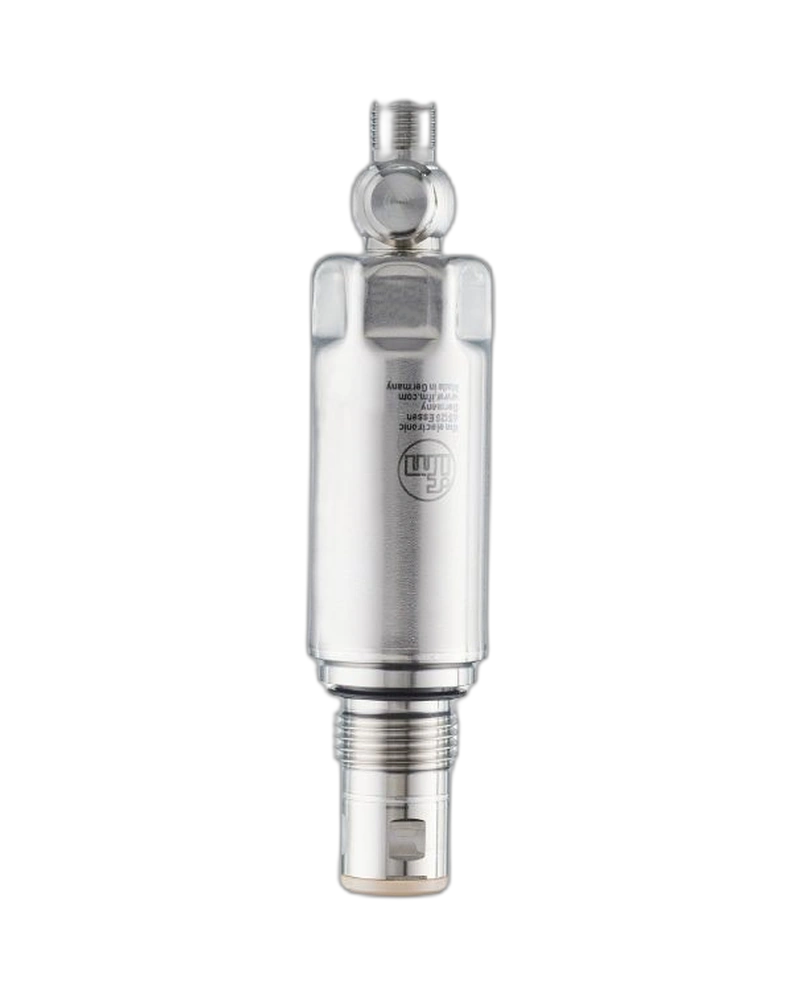

The IFM PM1604 is an electronic pressure sensor designed for hygienic process pressure monitoring. It provides a factory range of 0...10 bar and supports scalable 4...20 mA analogue output. IO-Link communication provides digital parameterisation, process data and diagnostics. Its ceramic-capacitive measuring cell supports robust and stable pressure measurement. PM1604 is suitable for process equipment, automation systems and continuous pressure monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1604 provides pressure measurement up to 10 bar in its factory configuration. Its relative measurement range extends from -1 to 10 bar. The ceramic-capacitive measuring cell supports long-term measurement stability. IO-Link allows the pressure value and device information to be accessed digitally. This makes the sensor suitable for continuous automated process monitoring.
The sensor is designed for hygienic process applications. Its process connection provides secure installation in process equipment. Stainless-steel construction supports mechanical durability. The flush configuration helps maintain a clean process interface. PM1604 can be integrated into production machinery and process lines.
The sensor supports scalable 4...20 mA output. IO-Link provides digital parameterisation and diagnostic functionality. PLC systems can receive pressure information through either analogue or digital integration. Digital data can also support maintenance and process optimisation. This provides flexibility for modern automation systems.
0...10 bar factory range
Ceramic-capacitive measuring cell
4...20 mA output
IO-Link communication
Scalable signal
Hygienic process design
Stainless-steel construction
Digital parameterisation
Diagnostics
Process data access
PLC integration
Continuous pressure monitoring
Process pressure measurement
Food processing
Beverage production
Pumping systems
Filling equipment
Process piping
Machine automation
Hygienic production
PLC systems
Pressure control
Condition monitoring
Industrial instrumentation
| Specification | PM1604 |
|---|---|
| Product type | Electronic pressure sensor |
| Model | PM1604 |
| Factory range | 0...10 bar |
| Relative range | -1...10 bar |
| Measuring cell | Ceramic-capacitive |
| Overload | 50 bar |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal | Scalable |
| Process connection | G 1 |
| Pressure type | Relative |
| Sensing | Electronic |
| Housing | Stainless steel |
| Application | Hygienic |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Device temperature | IO-Link |
| Installation | Process mounted |
| PLC integration | Supported |
| Automation | Analogue/digital |
| Mounting | Process connection |
| Primary function | Pressure monitoring |
| Typical use | Process automation |
