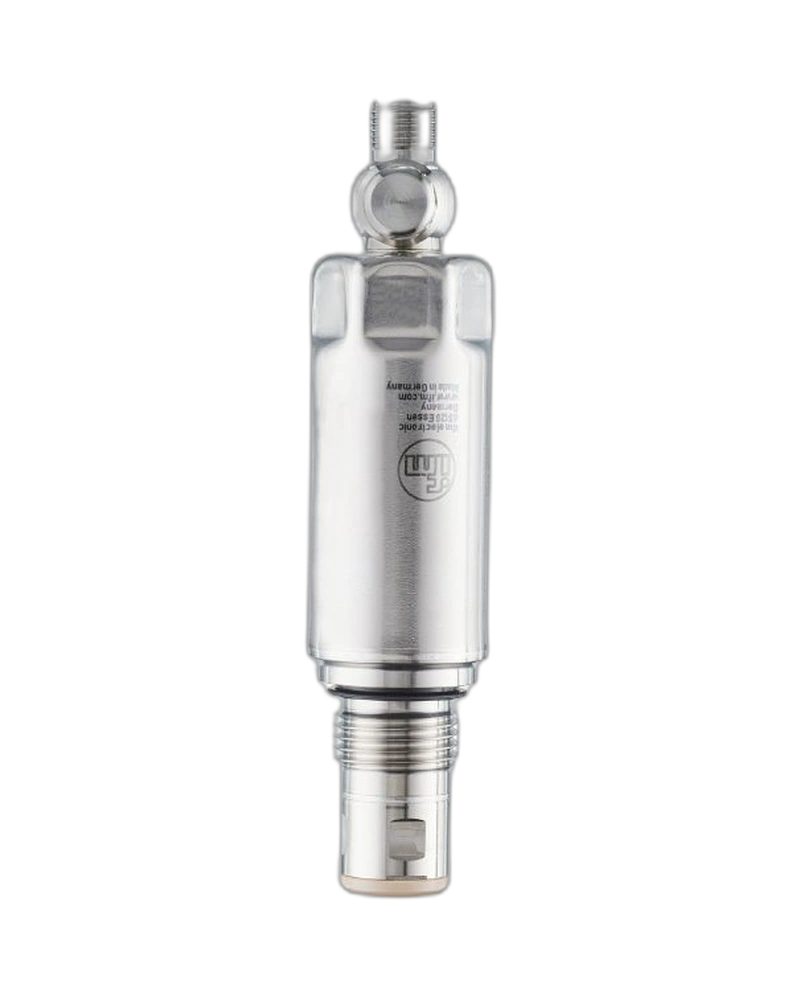

The IFM PM1603 is a flush pressure sensor designed for hygienic process applications. It provides a factory default range of 0...25 bar and supports digital process monitoring. The sensor combines scalable 4...20 mA output with IO-Link communication. Its robust process connection and ceramic measuring technology support reliable industrial measurement. PM1603 is suitable for pressure monitoring, process automation and machine control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1603 is designed for pressure ranges up to 25 bar. The documented relative measurement range extends from -1 to 25 bar. Its ceramic-capacitive measuring cell provides robust pressure measurement. IO-Link enables digital configuration and process-data access. The sensor is suitable for continuous pressure monitoring in automated systems.
The sensor is intended for hygienic process applications. Its process connection supports reliable integration into production equipment. Stainless-steel construction provides durability in industrial environments. The flush design supports clean process installation. This makes the sensor suitable for food, beverage and other hygienic production systems.
PM1603 provides scalable 4...20 mA output for standard control systems. IO-Link provides digital communication and parameterisation. Process data can be integrated into PLC and automation platforms. Device information can also support diagnostics and maintenance. The sensor provides a flexible bridge between analogue and smart automation.
0...25 bar factory range
Ceramic-capacitive measuring cell
4...20 mA output
IO-Link communication
Flush process design
Stainless-steel construction
Digital parameterisation
Process diagnostics
Hygienic application capability
PLC integration
Continuous monitoring
Industrial reliability
Process pressure monitoring
Food production
Beverage equipment
Filling systems
Pumping applications
Process pipelines
Machine automation
Hygienic machinery
PLC control
Pressure regulation
Condition monitoring
Industrial instrumentation
| Specification | PM1603 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1603 |
| Factory range | 0...25 bar |
| Relative range | -1...25 bar |
| Measuring cell | Ceramic-capacitive |
| Overload | 100 bar |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal | Scalable |
| Process connection | G 1 |
| Pressure type | Relative |
| Sensing design | Flush |
| Housing | Stainless steel |
| Application | Hygienic |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Device temperature | IO-Link available |
| Installation | Process mounted |
| PLC compatibility | Supported |
| Automation | Digital/analogue |
| Mounting | Process connection |
| Operating use | Industrial |
| Primary function | Pressure monitoring |
| Typical application | Hygienic process control |
