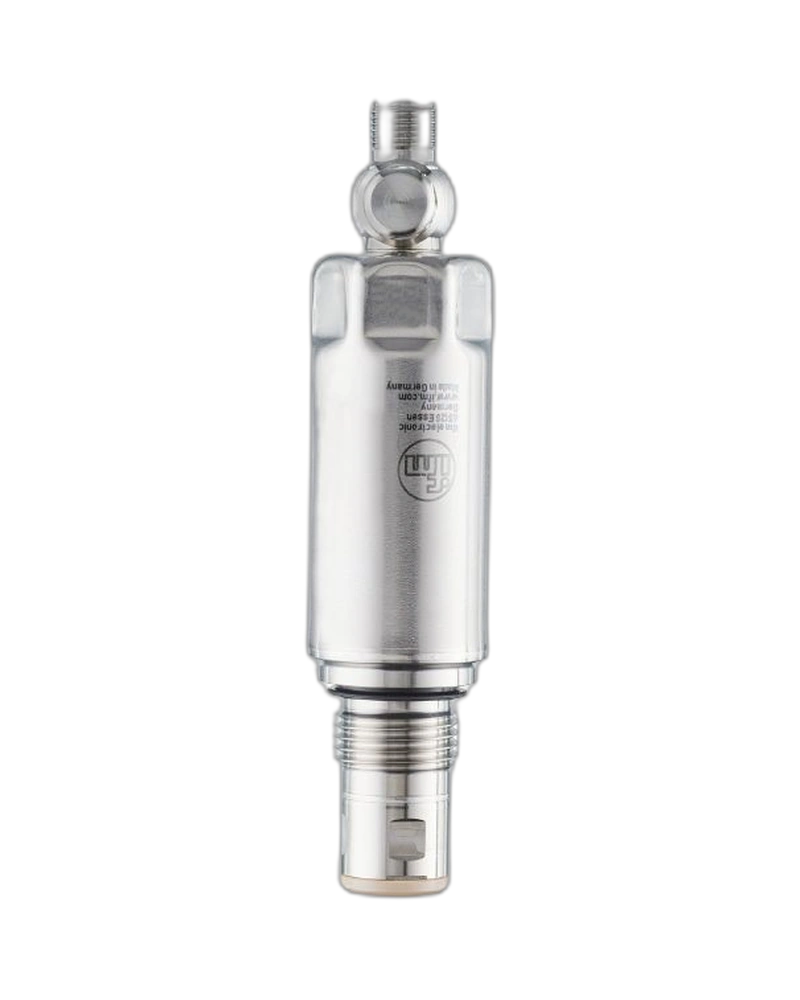

The IFM PM1602 is a high-pressure electronic pressure sensor designed for hygienic process applications. It provides a factory measurement range of 0...100 bar and is part of the PM16 family. The sensor supports 4...20 mA output and IO-Link communication for digital process integration. Its G 1 process connection supports robust installation in demanding process systems. PM1602 is suitable for high-pressure monitoring, process control and industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1602 is designed for high-pressure process applications up to 100 bar. The available IO-Link range extends from -1 to 100 bar in the documented configuration. The sensor provides continuous digital pressure information for automation systems. Its high-pressure capability makes it suitable for demanding process equipment. It can be used for pressure control, monitoring and machine protection.
The PM16 family uses a G 1 process connection configuration. Its design supports hygienic process applications and industrial installation. Stainless-steel construction provides durability for demanding environments. The sensor can be used in process lines, machinery and production systems. The construction supports reliable long-term measurement.
PM1602 supports scalable 4...20 mA output and IO-Link communication. IO-Link enables parameterisation and access to process data. Digital communication helps integrate the sensor into PLC and Industry 4.0 systems. It can also provide device temperature and diagnostic information through IO-Link. This makes PM1602 suitable for intelligent process monitoring.
0...100 bar factory range
High-pressure measurement
G 1 process connection
4...20 mA output
IO-Link communication
Scalable analogue signal
Digital parameterisation
Process diagnostics
Stainless-steel construction
Hygienic process suitability
Device data via IO-Link
Industrial automation integration
High-pressure process monitoring
Food processing
Beverage systems
Pumping equipment
Hydraulic process systems
Process pipelines
Machine protection
PLC automation
Pressure control
Condition monitoring
Hygienic machinery
Industrial instrumentation
| Specification | PM1602 |
|---|---|
| Product type | Electronic pressure sensor |
| Model | PM1602 |
| Product family | PM16 |
| Factory range | 0...100 bar |
| IO-Link/full range | -1...100 bar |
| Overload | 200 bar |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal | Scalable analogue |
| Process connection | G 1 |
| Pressure type | Relative |
| Measuring cell | Ceramic-capacitive |
| Sensing | Electronic |
| Housing | Stainless steel |
| Application | Hygienic/process |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Device temperature | Available via IO-Link |
| Process data | Digital |
| Installation | Process mounted |
| PLC integration | Supported |
| Automation | Industry 4.0 compatible |
| Mounting | Process connection |
| Primary function | Pressure measurement |
| Typical use | High-pressure monitoring |
