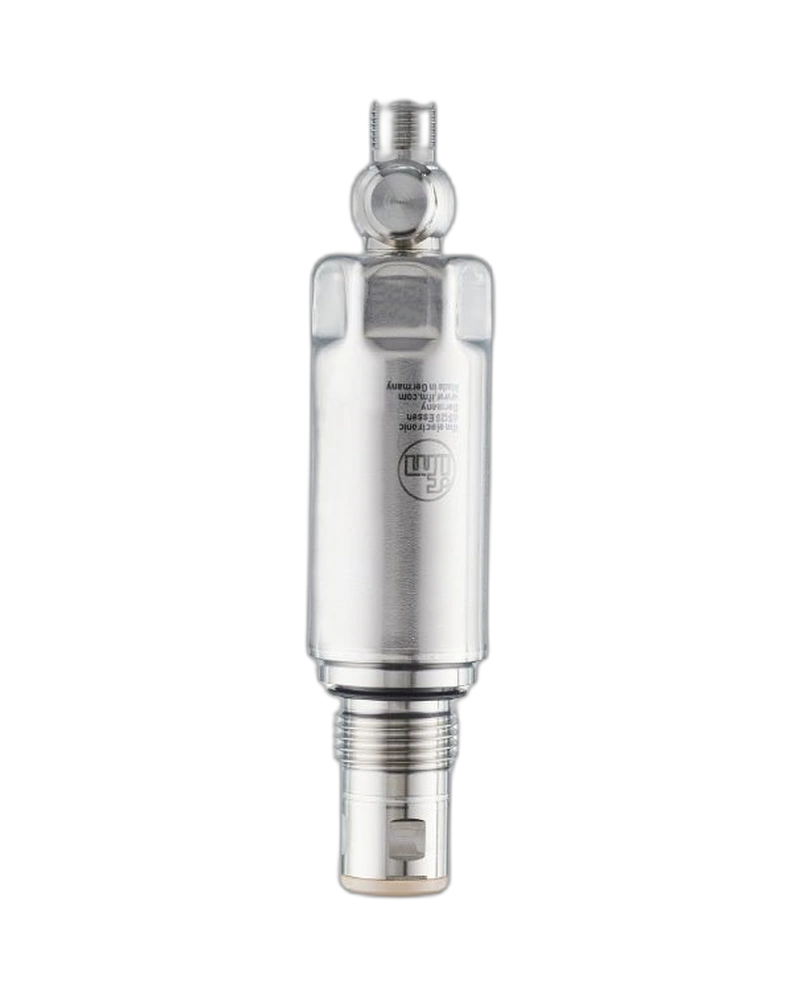

The IFM PM1543 is a high-pressure flush sensor designed for demanding hygienic process applications. Its factory default range is 0...580 psi and the extended digital range supports flexible pressure monitoring. The G 1/2 sealing cone provides a compact process connection. The sensor supports scalable 4...20 mA output and IO-Link communication. PM1543 is suitable for high-pressure process monitoring, machine control and industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1543 is designed for applications requiring higher pressure measurement capability. Its factory range extends to 580 psi with an IO-Link range extending beyond the factory setting. The sensor provides high overload and burst pressure capability. This supports operation in demanding industrial pressure systems. Continuous digital pressure data can be used for control and monitoring.
The G 1/2 sealing cone supports compact process installation. Flush sensing is suitable for hygienic applications and cleaning-intensive production. Stainless-steel construction provides mechanical robustness. The sensor can be installed in process piping and equipment. Its compact configuration supports integration into space-constrained machinery.
PM1543 combines 4...20 mA and IO-Link communication. The analogue signal supports conventional PLC systems. IO-Link provides digital parameterisation, process values and diagnostics. This enables integration with modern automation and monitoring platforms. The sensor can support preventive maintenance and process optimisation.
0...580 psi factory range
High-pressure measurement
G 1/2 sealing cone
Flush sensing
4...20 mA output
IO-Link communication
High overload capability
Stainless-steel construction
Hygienic process design
Digital diagnostics
PLC integration
Industrial reliability
High-pressure process monitoring
Food and beverage plants
Pumping systems
Process pipelines
Filling machinery
Liquid processing
Machine monitoring
Hygienic production
PLC automation
Pressure control
Condition monitoring
Industrial instrumentation
| Specification | PM1543 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1543 |
| Factory range | 0...580 psi |
| Full range | -14.5...580.2 psi |
| IO-Link range | -14.5...609.2 psi |
| Resolution | 0.145 psi |
| Overload | 2900 psi |
| Burst | 4350 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Process connection | G 1/2 sealing cone |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Signal | Scalable |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Installation | Process mounted |
| PLC integration | Supported |
| Application | Hygienic/process |
| Mounting | Process connection |
| Accessory support | Process adapters |
| Primary use | High-pressure monitoring |
