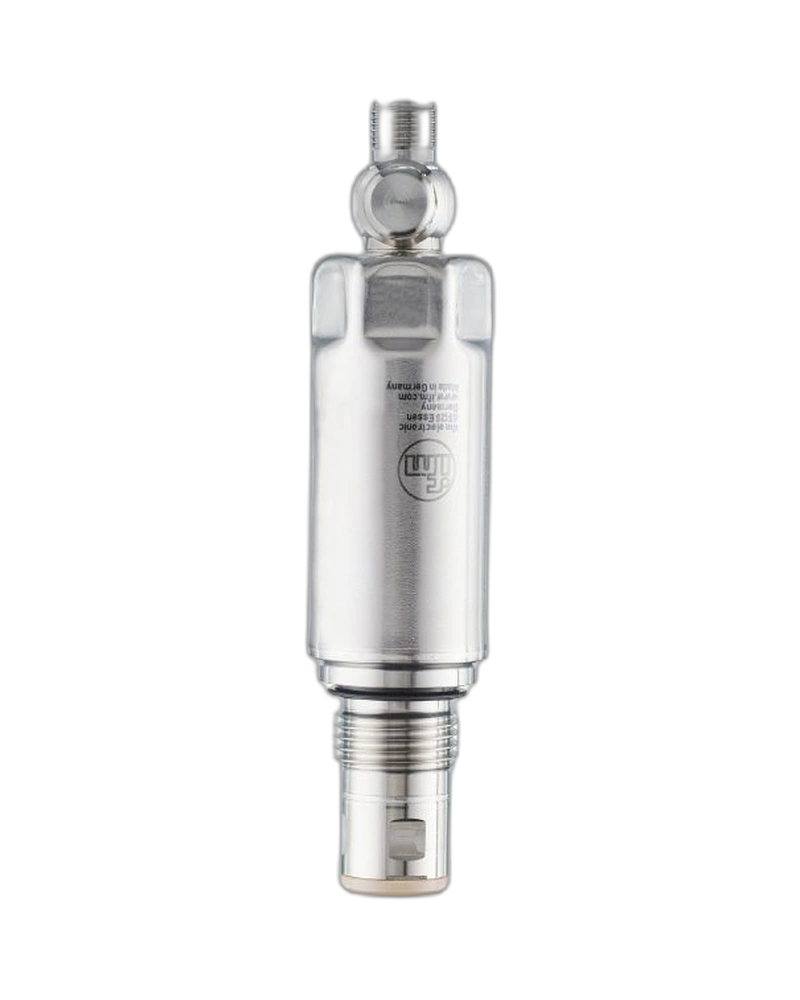

The IFM PM1515 is a flush pressure sensor designed for reliable process pressure monitoring. Its factory default range is 0...87 psi and it supports an extended IO-Link measurement range. The G 1/2 sealing cone provides compact process integration. The sensor supports scalable 4...20 mA output and digital IO-Link communication. PM1515 is suitable for hygienic production, liquid processing and automated pressure control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1515 offers a factory range of 0...87 psi. Its full and IO-Link ranges provide additional flexibility for digital applications. The sensor supports continuous pressure monitoring in production equipment. Its overload and burst capabilities help protect the sensor during transient pressure events. Pressure values can be integrated directly into automated control systems.
The G 1/2 sealing cone supports compact process installation. The flush sensing arrangement is suitable for hygienic applications. Stainless-steel construction provides durability in industrial environments. The sensor is designed for installation in process machinery and piping. Its compact format is useful where space is limited.
The 4...20 mA output allows connection to conventional PLC inputs. IO-Link provides parameterisation, digital process values and diagnostic information. This allows easier commissioning and device configuration. Digital data can also support condition monitoring and maintenance. The sensor can therefore operate within both traditional and modern automation architectures.
0...87 psi factory range
G 1/2 sealing cone
Flush sensing
4...20 mA scalable output
IO-Link communication
Stainless-steel construction
Hygienic process design
Digital diagnostics
Parameterisation
Compact installation
PLC compatibility
Continuous monitoring
Process pressure monitoring
Food processing
Beverage production
Filling equipment
Pump systems
Liquid handling
Process lines
Production machinery
PLC automation
Machine monitoring
Hygienic process control
Industrial instrumentation
| Specification | PM1515 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1515 |
| Factory range | 0...87 psi |
| Full range | -14.5...87 psi |
| IO-Link range | -14.5...91.4 psi |
| Resolution | 0.029 psi |
| Overload | 725 psi |
| Burst | 2900 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Process connection | G 1/2 sealing cone |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Signal | Scalable |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Installation | Process mounted |
| PLC integration | Supported |
| Application | Hygienic |
| Mounting | Process connection |
| Accessory support | Available |
| Primary use | Pressure monitoring |
