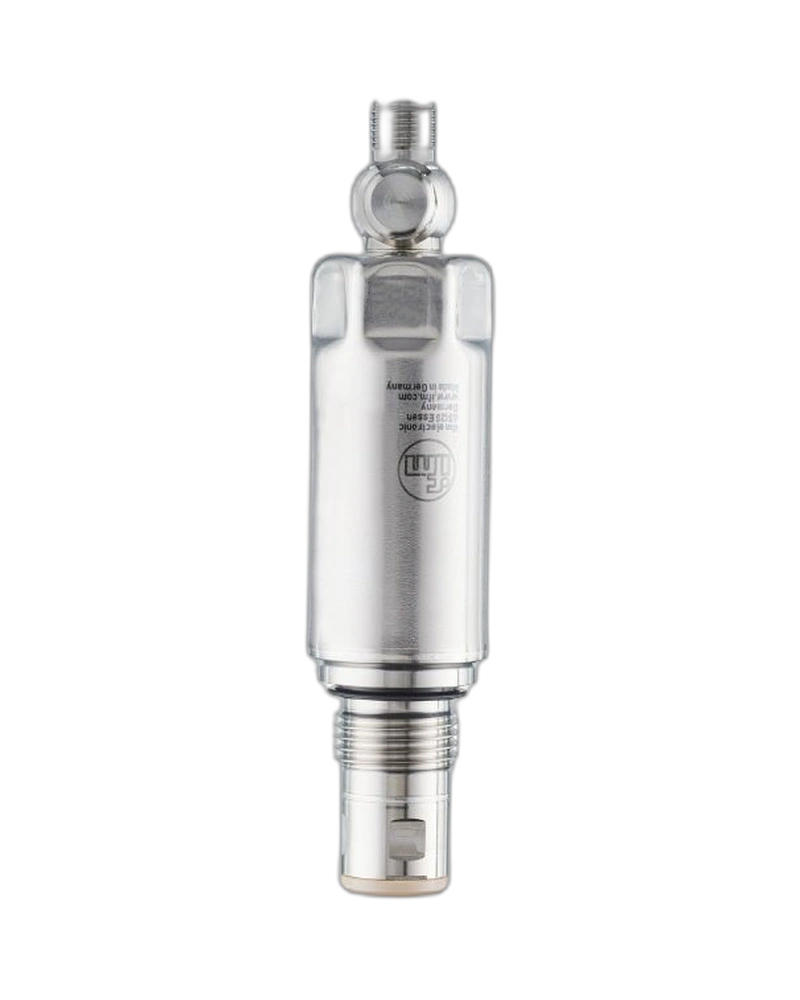

The IFM PM1514 is a flush pressure sensor designed for higher-pressure hygienic process applications. It provides a factory default range of 0...232 psi and an extended IO-Link measurement range. The G 1/2 sealing cone supports compact process installation. Scalable 4...20 mA output provides compatibility with conventional automation equipment. PM1514 combines robust pressure measurement with digital connectivity for modern process control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1514 provides a 0...232 psi factory measurement range. Its full and IO-Link ranges provide additional flexibility for pressure monitoring. The sensor has a high overload capability for demanding process conditions. Digital measurement can be used for control, diagnostics and monitoring. It is suitable for continuous industrial pressure measurement.
The G 1/2 external sealing cone is designed for compact process installation. Flush sensing supports hygienic applications and easier cleaning. Stainless-steel construction provides robust mechanical performance. The sensor can be integrated into smaller process lines and equipment. Its design supports reliable operation in demanding production environments.
The 4...20 mA output supports conventional PLC integration. IO-Link adds digital parameterisation and process data access. Device diagnostics can help identify sensor or process issues. The sensor therefore supports both conventional automation and connected manufacturing. It can be integrated into monitoring and preventive-maintenance systems.
0...232 psi factory range
G 1/2 sealing cone
Flush pressure sensing
4...20 mA output
IO-Link communication
High overload capability
Stainless-steel housing
Hygienic construction
Digital diagnostics
Parameterisation
PLC compatibility
Industrial design
Process pressure monitoring
Food and beverage equipment
Filling machinery
Pumping systems
Liquid processing
Process pipelines
Machine automation
Hygienic production
PLC control
Pressure monitoring
Condition monitoring
Industrial instrumentation
| Specification | PM1514 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1514 |
| Factory range | 0...232 psi |
| Full range | -14.5...232 psi |
| IO-Link range | -14.5...243.7 psi |
| Resolution | 0.073 psi |
| Overload | 1600 psi |
| Burst | 3625 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Process connection | G 1/2 sealing cone |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Signal | Scalable |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Installation | Process mounted |
| PLC integration | Supported |
| Application | Hygienic/process |
| Mounting | Process connection |
| Accessory support | Process adapters |
| Primary use | Pressure measurement |
