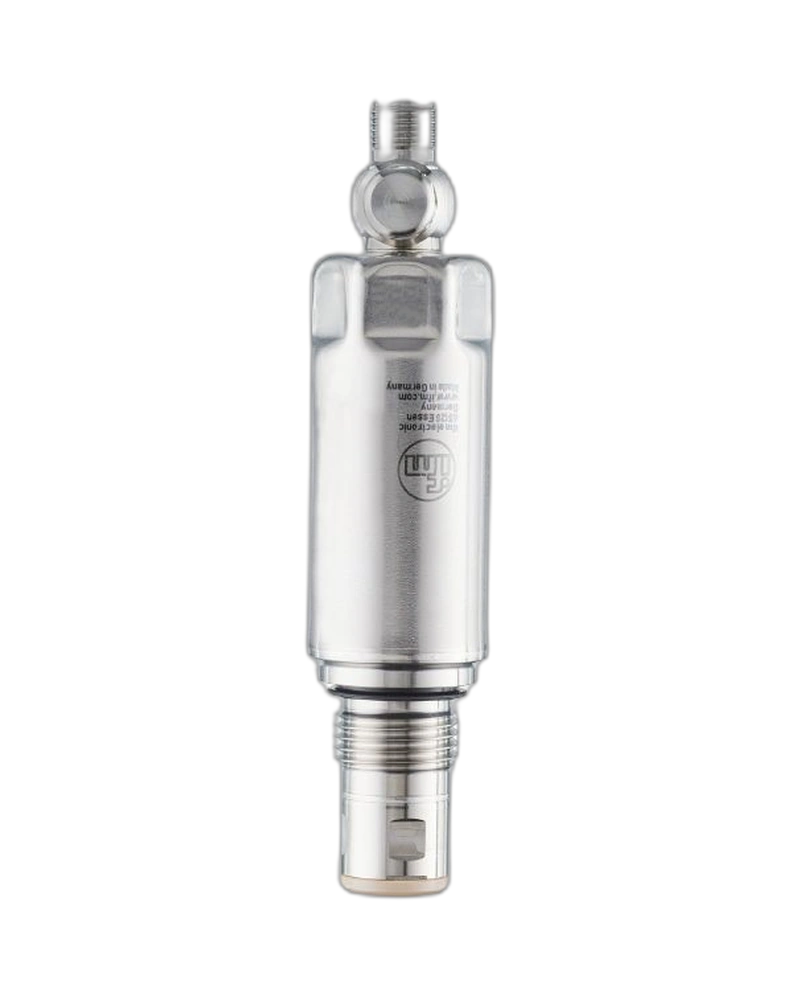

The IFM PM1506 is a compact flush pressure sensor intended for low-pressure process monitoring. Its factory default range is 0...36.26 psi and its digital IO-Link range provides additional measurement flexibility. The G 1/2 external thread sealing cone supports compact process installation. Scalable 4...20 mA output allows connection to conventional control systems. PM1506 is suitable for hygienic machinery, process lines and automated low-pressure applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1506 is suitable for applications requiring sensitive pressure measurement. Its factory range is 0...36.26 psi with a full range extending below zero. IO-Link provides a wider digital range and fine resolution. The sensor can continuously transmit pressure data to control systems. Its overload rating provides protection against transient pressure events.
The G 1/2 sealing cone provides a compact process connection for smaller pipes. Flush sensing supports hygienic process installation. Stainless-steel construction provides resistance to demanding industrial conditions. The sensor can be installed into process machinery with limited available space. Its configuration supports clean and reliable process measurement.
PM1506 provides both 4...20 mA and IO-Link interfaces. The analogue signal supports standard PLC installations. IO-Link provides digital parameterisation and diagnostic information. This allows the sensor to participate in modern automation networks. The combination supports easy system integration and future upgrades.
0...36.26 psi factory range
Low-pressure measurement
G 1/2 sealing cone
Flush sensing
4...20 mA output
IO-Link communication
Fine digital resolution
Stainless-steel construction
Hygienic design
Digital diagnostics
PLC integration
Compact installation
Low-pressure process monitoring
Food processing
Beverage machinery
Filling equipment
Liquid handling
Pump monitoring
Process automation
Production machinery
PLC systems
Machine monitoring
Hygienic lines
Industrial instrumentation
| Specification | PM1506 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1506 |
| Factory range | 0...36.26 psi |
| Full range | -1.82...36.26 psi |
| IO-Link range | -3.62...38.07 psi |
| Resolution | 0.007 psi |
| Overload | 435 psi |
| Burst | 725 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Process connection | G 1/2 sealing cone |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Signal | Scalable |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Installation | Process mounted |
| PLC integration | Supported |
| Application | Hygienic/process |
| Mounting | Process connection |
| Accessory support | Available |
| Primary use | Low-pressure monitoring |
