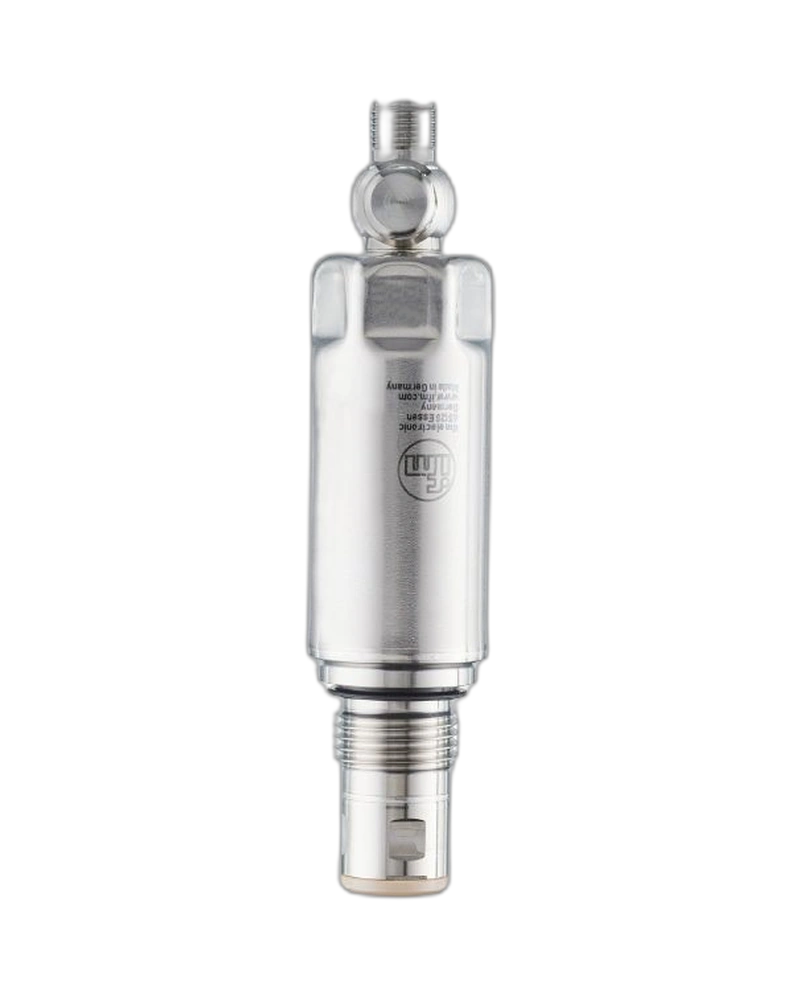

The IFM PM1505 is a compact flush pressure sensor designed for reliable process pressure measurement. Its factory default range is 0...58 psi and it provides an extended measurement range through IO-Link. The G 1/2 external thread sealing cone supports compact process installation. Scalable 4...20 mA output provides compatibility with conventional automation systems. PM1505 is suitable for hygienic production, liquid processing and automated pressure monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1505 is designed for low-to-medium pressure process applications. Its factory range reaches 58 psi and the IO-Link range provides additional measurement flexibility. The sensor offers suitable overload and burst pressure capability for industrial applications. Continuous pressure values can be used for machine control and process monitoring. Its digital interface supports detailed device configuration.
The G 1/2 sealing cone provides a compact process connection. Flush sensing supports hygienic installation and reduces potential contamination areas. Stainless-steel construction provides mechanical durability. The sensor is suitable for production lines and process machinery. Its compact format makes it practical for restricted installation areas.
The 4...20 mA output can be connected to conventional PLC inputs. IO-Link adds digital parameterisation and diagnostic functions. Process values can be accessed by automation systems in real time. Device configuration can be managed digitally. This supports efficient commissioning and modern connected manufacturing.
0...58 psi factory range
G 1/2 process connection
Flush sensing
4...20 mA output
IO-Link interface
Scalable analogue signal
Stainless-steel housing
Hygienic construction
Digital diagnostics
Parameterisation
Compact installation
PLC integration
Process pressure monitoring
Food processing
Beverage systems
Liquid handling
Filling equipment
Pump monitoring
Production machinery
Hygienic process lines
PLC automation
Machine monitoring
Pressure control
Industrial instrumentation
| Specification | PM1505 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1505 |
| Factory range | 0...58 psi |
| Full range | -14.5...58 psi |
| IO-Link range | -14.5...60.9 psi |
| Resolution | 0.015 psi |
| Overload | 580 psi |
| Burst | 1200 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Process connection | G 1/2 sealing cone |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Signal | Scalable |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Installation | Process mounted |
| Automation | PLC compatible |
| Application | Hygienic/process |
| Accessory support | Process adapters |
| Mounting | Process connection |
| Primary use | Pressure monitoring |
