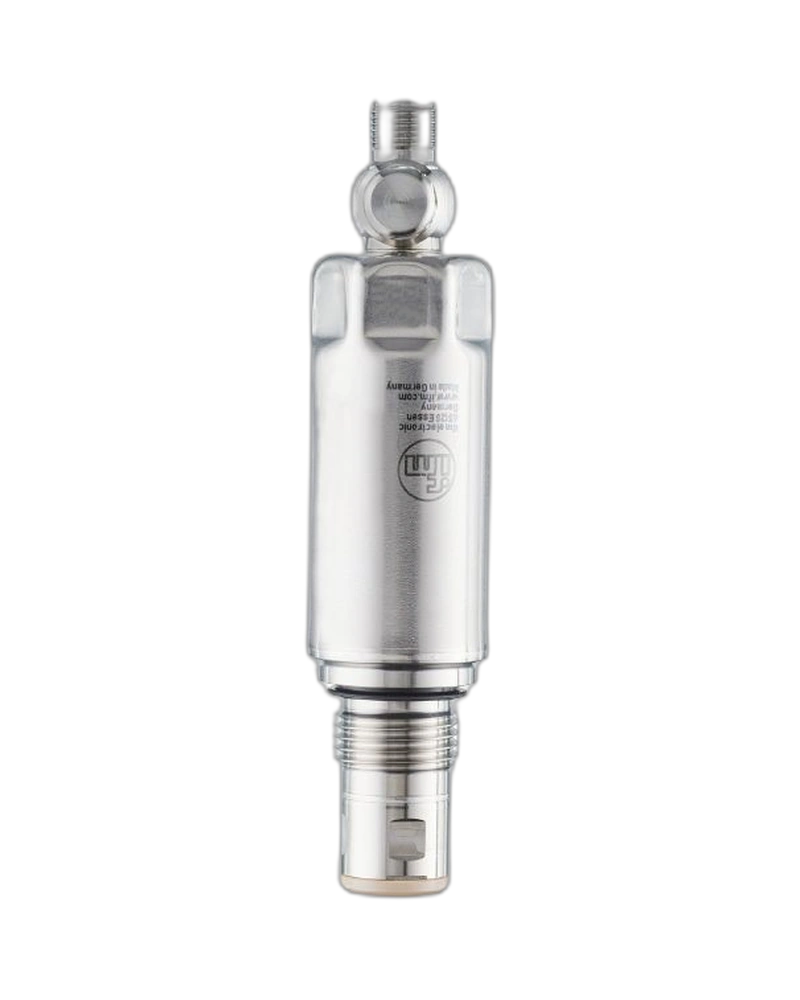

The IFM PM1504 is a compact flush pressure sensor designed for hygienic process applications. It provides a factory default range of 0...145 psi and supports an extended digital measurement range. The G 1/2 sealing cone provides a practical process connection for smaller pipes. Scalable 4...20 mA output and IO-Link communication support flexible automation integration. PM1504 is suitable for continuous pressure monitoring, machine control and process automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1504 is suitable for medium-range process pressure measurement. Its factory range extends to 145 psi with a wider digital range available through IO-Link. The sensor is designed to provide stable pressure values for automation systems. Its overload and burst ratings support reliable operation during pressure peaks. Continuous pressure data can be used for control and monitoring functions.
The G 1/2 external thread sealing cone allows compact installation. The flush sensing design supports hygienic applications and reduces contamination-prone areas. Stainless-steel construction provides mechanical durability. The sensor can be installed in process equipment with limited space. Its design supports efficient integration into production machinery.
PM1504 supports scalable 4...20 mA output for conventional PLC systems. IO-Link provides digital configuration, process values and diagnostics. This enables easier commissioning and monitoring. The sensor can support both traditional automation and Industry 4.0 architectures. Digital data also helps with preventive maintenance and device management.
0...145 psi factory range
G 1/2 sealing cone
Flush sensing design
4...20 mA output
IO-Link communication
Scalable analogue signal
Stainless-steel construction
Hygienic process design
Digital parameterisation
Diagnostic capability
Compact installation
PLC compatible
Process pressure monitoring
Food and beverage equipment
Small process pipes
Filling systems
Pump monitoring
Liquid processing
Production machinery
Hygienic automation
PLC control
Machine monitoring
Process instrumentation
Industrial automation
| Specification | PM1504 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1504 |
| Product family | PM15 |
| Factory range | 0...145 psi |
| Full range | -14.5...145 psi |
| IO-Link range | -14.5...152.3 psi |
| Resolution | 0.029 psi |
| Overload | 1100 psi |
| Burst | 2538 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Process connection | G 1/2 sealing cone |
| Pressure type | Relative |
| Sensing | Flush |
| Housing | Stainless steel |
| Signal | Scalable |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Installation | Process mounted |
| Automation | PLC compatible |
| Application | Hygienic |
| Accessory support | Process adapters |
| Primary use | Pressure measurement |
| Mounting | Process connection |
