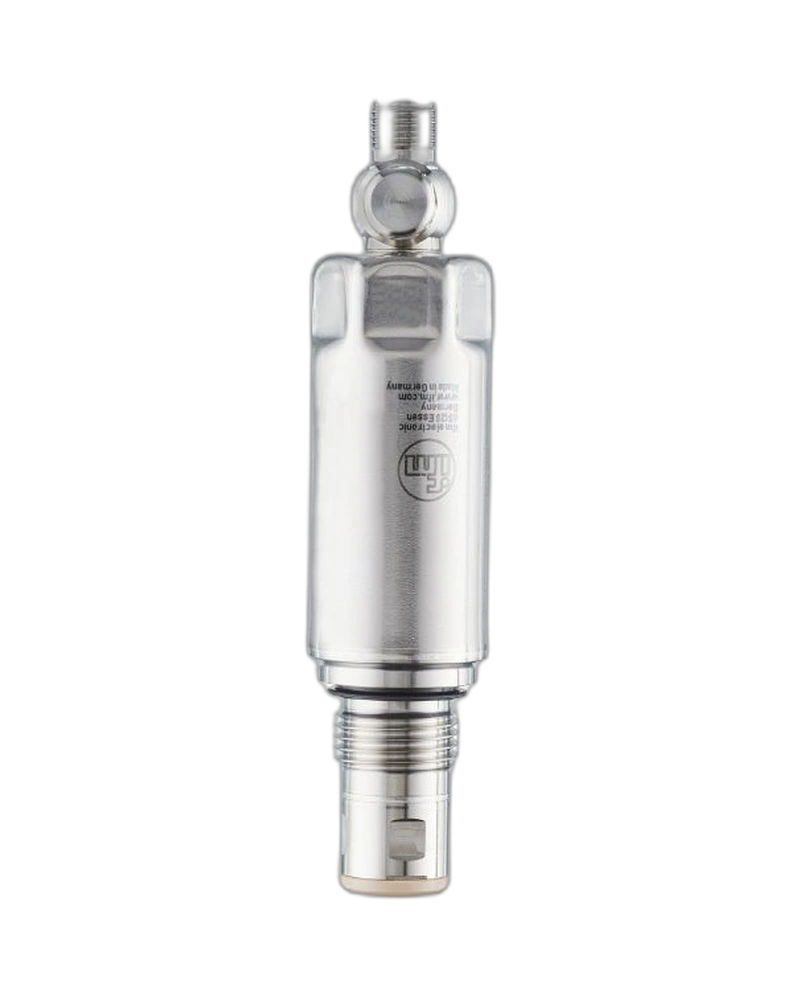

The IFM PM1503 is a flush pressure sensor with a G 1/2 external thread sealing cone designed for hygienic and process applications. Its factory default pressure range is 0...362.6 psi. The sensor provides scalable 4...20 mA output and IO-Link communication for flexible automation integration. Its compact G 1/2 process connection makes it suitable for smaller process pipes and equipment. PM1503 provides reliable pressure measurement with digital configuration and diagnostic capability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1503 provides a 0...362.6 psi factory range with an extended full range. IO-Link allows digital monitoring across the wider measurement capability. The sensor offers an overload rating of approximately 2300 psi and a burst rating of 3600 psi. This makes it suitable for demanding pressure applications. The measurement output can be integrated into both conventional and intelligent automation systems.
The PM15 family uses a G 1/2 external thread sealing cone. This compact process connection is particularly useful for smaller pipes and installations. The flush sensing arrangement supports hygienic process requirements. The stainless-steel design provides robust industrial performance. A range of process adapters and accessories is available for system integration.
The sensor supports scalable 4...20 mA output and IO-Link. IO-Link enables digital parameterisation and access to process information. It can be integrated with PLCs and automation controllers. Digital communication also supports device diagnostics and configuration. This makes PM1503 suitable for connected industrial process systems.
0...362.6 psi factory range
G 1/2 sealing cone
Flush pressure sensing
4...20 mA scalable output
IO-Link communication
High overload resistance
Stainless-steel housing
Hygienic process design
Digital parameterisation
Process diagnostics
Compact installation
PLC integration
Hygienic process monitoring
Food processing
Beverage production
Small-diameter process pipes
Filling machinery
Pump systems
Process control
Production automation
Liquid pressure measurement
PLC systems
Machine monitoring
Industrial instrumentation
| Specification | PM1503 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1503 |
| Product family | PM15 |
| Factory range | 0...362.6 psi |
| Full range | -14.5...362.6 psi |
| IO-Link range | -14.5...384.6 psi |
| Resolution | 0.073 psi |
| Overload | 2300 psi |
| Burst | 3600 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal | Scalable analogue |
| Process connection | G 1/2 external thread sealing cone |
| Pressure type | Relative |
| Sensing design | Flush |
| Housing | Stainless steel |
| Application | Hygienic/process |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available |
| Installation | Process mounted |
| PLC integration | Supported |
| Accessory support | Process adapters |
| Typical environment | Industrial |
| Primary use | Process pressure monitoring |
