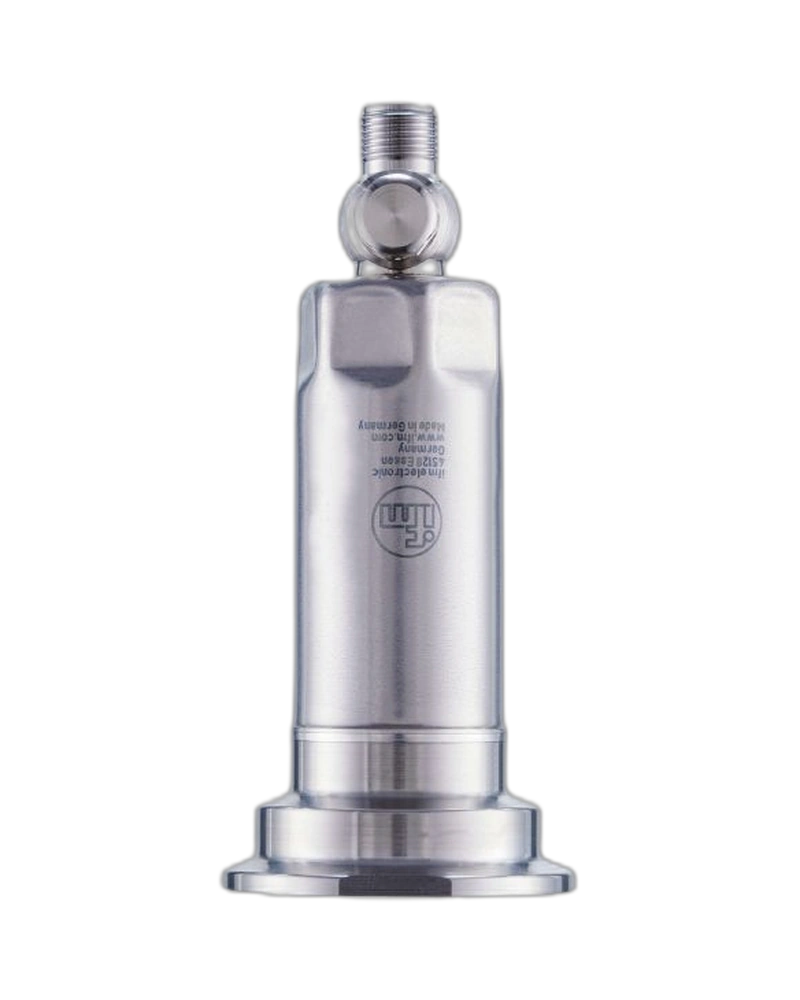

The IFM PM1143 is a high-range flush pressure sensor designed for demanding process pressure applications. It provides a factory default range of 0...580 psi and supports an extended measurement range through IO-Link. The sensor provides scalable 4...20 mA output for conventional automation systems. Its robust sensing design supports continuous industrial pressure monitoring. PM1143 is suitable for higher-pressure hygienic process applications requiring reliable measurement and digital connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1143 provides a factory range of 0...580 psi. Its extended measurement range allows digital systems to monitor pressure beyond the factory setting. The sensor provides an overload rating of 1800 psi and a burst rating of 2175 psi. These characteristics make it suitable for demanding pressure environments. It can provide continuous feedback for process control and machine monitoring.
The flush sensing design supports hygienic process installation. Stainless-steel construction provides mechanical strength and corrosion resistance. The sensor can be installed into process equipment where pressure and cleaning conditions are demanding. Its compact configuration allows integration into production machinery. The design supports long-term measurement reliability.
PM1143 supports scalable 4...20 mA output and IO-Link communication. IO-Link provides digital parameterisation and access to process information. The sensor can connect to PLCs and industrial automation systems. Digital communication also supports diagnostics and configuration management. This makes the device suitable for modern process-control architectures.
0...580 psi factory range
High-pressure measurement
Flush sensing design
4...20 mA scalable output
IO-Link communication
1800 psi overload rating
2175 psi burst rating
Stainless-steel construction
Digital parameterisation
Process diagnostics
PLC integration
Industrial reliability
High-pressure process monitoring
Food processing equipment
Beverage plants
Pumping systems
Process pipelines
Filling equipment
Production machinery
Hygienic process systems
Machine protection
PLC automation
Pressure control
Industrial instrumentation
| Specification | PM1143 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1143 |
| Factory range | 0...580 psi |
| Full range | -14.6...580 psi |
| IO-Link range | -14.5...609 psi |
| Resolution | 0.145 psi |
| Overload pressure | 1800 psi |
| Burst pressure | 2175 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal type | Scalable |
| Pressure type | Relative |
| Measuring principle | Electronic |
| Sensing design | Flush |
| Housing | Stainless steel |
| Process suitability | Hygienic |
| Installation | Process mounted |
| Parameterisation | Digital |
| Diagnostics | IO-Link |
| Data transmission | Analogue/digital |
| PLC compatibility | Yes |
| Mounting | Process connection |
| Operating environment | Industrial |
| Primary application | High-pressure measurement |
| Automation | Supported |
