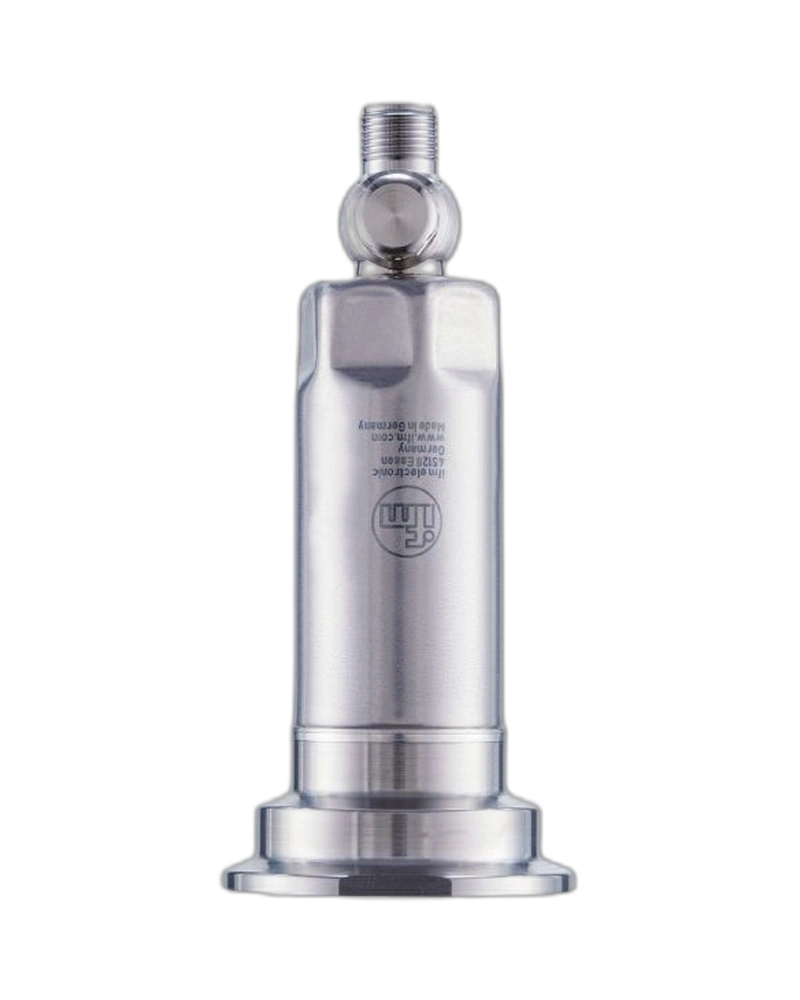

The IFM PM1117 is a low-range flush pressure sensor designed for precise monitoring of pressure in hygienic process systems. Its factory default range is 0...23.21 psi and its digital range extends beyond this value. The sensor combines scalable 4...20 mA output with IO-Link communication. Its flush process design supports hygienic installation and efficient cleaning. PM1117 is suitable for low-pressure process monitoring and automated control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1117 is intended for applications where relatively small pressure changes need to be detected. Its factory range is 0...23.21 psi with fine IO-Link resolution. The sensor can digitally provide a wider measurement range. Its overload and burst ratings provide additional protection during pressure fluctuations. This makes it suitable for continuous low-pressure process measurement.
The flush sensing configuration supports hygienic process integration. The stainless-steel construction provides durability for industrial installations. The sensing surface helps minimise areas where process material could collect. The sensor can be incorporated into process equipment and production machinery. Its design supports applications where cleanliness and repeatable measurement are important.
The scalable 4...20 mA output allows easy connection to standard PLC inputs. IO-Link provides digital configuration, measurement and diagnostic information. This allows process engineers to monitor pressure and device status centrally. The sensor can therefore support conventional automation as well as smart manufacturing systems. Its dual-interface design provides flexibility during system upgrades.
0...23.21 psi factory range
Fine low-pressure measurement
Flush process design
4...20 mA scalable output
IO-Link communication
Digital parameterisation
Diagnostic information
Stainless-steel construction
Hygienic installation
Overload protection
PLC compatibility
Continuous pressure monitoring
Low-pressure process monitoring
Food and beverage systems
Filling equipment
Process lines
Liquid handling
Pump monitoring
Production machinery
Hygienic automation
PLC systems
Machine condition monitoring
Process control
Industrial instrumentation
| Specification | PM1117 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1117 |
| Factory range | 0...23.21 psi |
| Full range | -1.45...23.21 psi |
| IO-Link range | -2.61...24.37 psi |
| Resolution | 0.005 psi |
| Overload pressure | 215 psi |
| Burst pressure | 580 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal type | Scalable analogue |
| Pressure type | Relative |
| Sensing principle | Electronic |
| Sensing design | Flush |
| Housing | Stainless steel |
| Process suitability | Hygienic |
| Installation | Process mounted |
| Parameterisation | Digital |
| Diagnostics | IO-Link |
| Data access | Digital |
| PLC interface | Analogue/IO-Link |
| Mounting | Process connection |
| Operating use | Industrial |
| Primary use | Low-pressure measurement |
| Automation | Supported |
