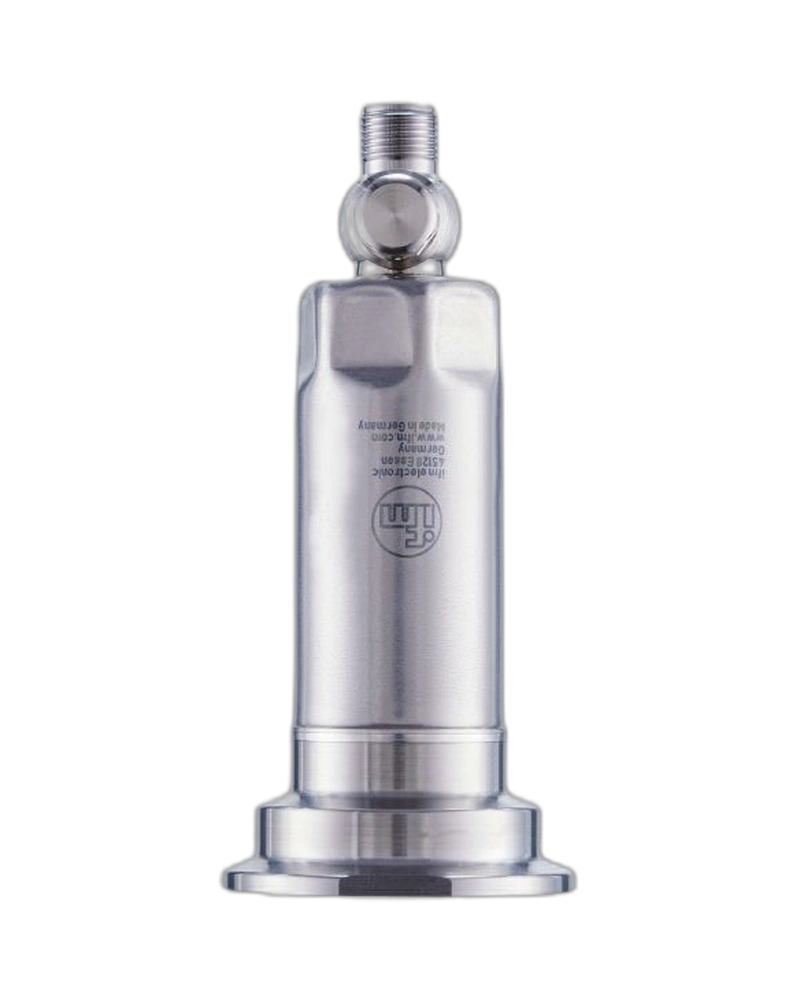

The IFM PM1115 is a flush pressure sensor designed for dependable pressure monitoring in hygienic industrial processes. Its factory default range is 0...87 psi, providing a practical measurement range for many process applications. The sensor offers scalable 4...20 mA analogue output together with IO-Link communication. Its flush sensing configuration supports hygienic installation and efficient cleaning. PM1115 provides a flexible solution for pressure monitoring, automation and process control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1115 provides a factory range of 0...87 psi and an extended digital measurement range. Its resolution supports accurate monitoring of pressure variations in automated processes. The overload and burst ratings provide protection against temporary pressure peaks. This makes the sensor suitable for continuous process monitoring. IO-Link allows the measurement data to be accessed digitally by control systems.
The flush sensor design is suitable for hygienic process equipment. Stainless-steel construction supports durability and resistance to industrial operating conditions. The sensing surface is designed to minimise contamination-prone areas. Installation is suitable for process lines, machines and hygienic production systems. The compact form supports practical integration into automated equipment.
PM1115 provides scalable 4...20 mA output for conventional control systems. IO-Link adds digital communication, configuration and diagnostic functions. Engineers can use digital process data for automation and monitoring. The interface supports integration with PLCs and intelligent automation systems. This makes PM1115 suitable for both traditional and Industry 4.0 installations.
0...87 psi factory range
Flush pressure sensing
4...20 mA output
IO-Link interface
Scalable signal
Stainless-steel housing
Hygienic process design
Digital diagnostics
Parameterisation
Continuous pressure measurement
PLC integration
Industrial construction
Hygienic process lines
Food production
Beverage processing
Filling machines
Pumping systems
Liquid pressure monitoring
Process automation
Machine monitoring
PLC applications
Production equipment
Tank systems
Industrial instrumentation
| Specification | PM1115 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1115 |
| Product family | PM11 |
| Factory range | 0...87 psi |
| Full range | -14.5...87 psi |
| IO-Link range | -14.5...91.4 psi |
| Resolution | 0.030 psi |
| Overload pressure | 435 psi |
| Burst pressure | 1450 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Signal | Scalable analogue |
| Pressure type | Relative |
| Sensor principle | Electronic |
| Sensing arrangement | Flush |
| Housing | Stainless steel |
| Process suitability | Hygienic |
| Installation | Process mounted |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Process data | Available digitally |
| Automation interface | Analogue/IO-Link |
| Mounting | Process connection |
| Application | Industrial |
| Primary function | Pressure monitoring |
