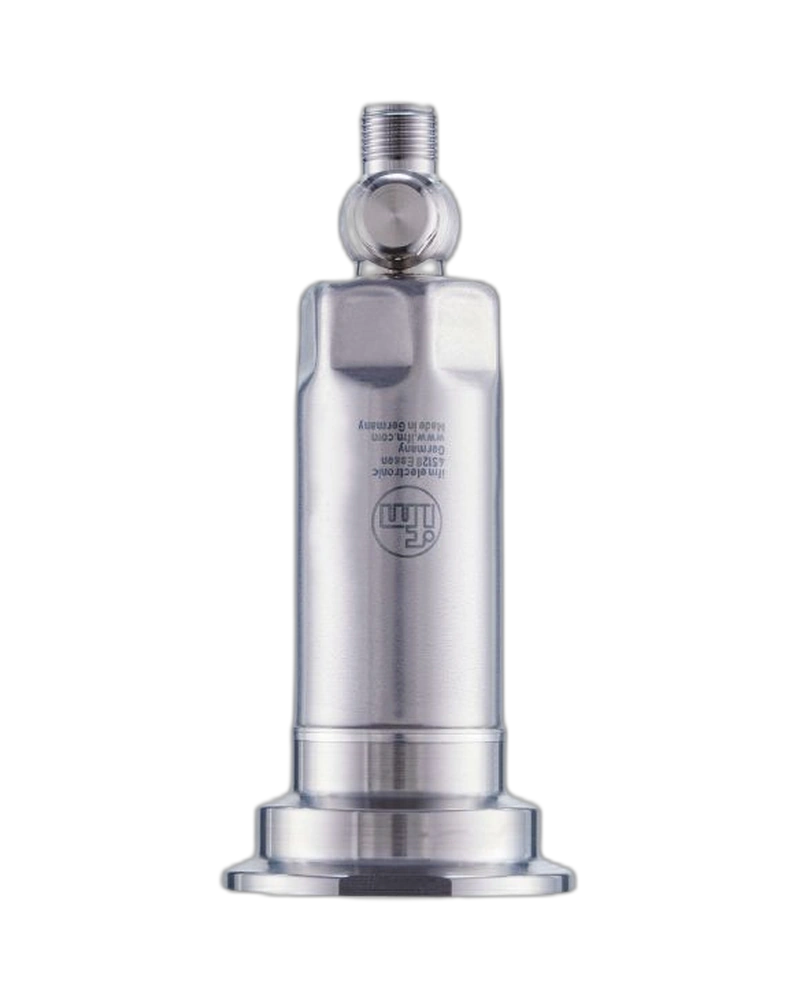

The IFM PM1108 is a compact flush pressure sensor designed for precise low-pressure monitoring. Its factory default range is 0...100 inHâ‚‚O, making it suitable for applications where pressure changes are relatively small. The sensor provides scalable 4...20 mA output and IO-Link communication. Its flush process design supports hygienic installation and easier cleaning. PM1108 is well suited to automated pressure monitoring in modern process equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1108 is optimised for low-pressure applications requiring sensitive measurement. The factory default range is 0...100 inHâ‚‚O, while the full range extends below zero for flexible pressure monitoring. IO-Link provides a wider digital measurement range and fine resolution. This makes the sensor useful for controlled low-pressure processes. The design supports stable measurement and reliable automation feedback.
The flush sensing design helps minimise areas where process media can accumulate. Its stainless-steel construction supports demanding industrial and hygienic environments. The compact sensor body allows straightforward integration into process equipment. It is suitable for systems requiring regular cleaning and reliable pressure measurement. The construction is designed for long-term industrial operation.
PM1108 can communicate through both analogue and IO-Link interfaces. IO-Link enables parameterisation, digital process values and diagnostic information. The analogue output allows straightforward connection to conventional PLC systems. This dual-interface capability helps integrate the sensor into existing and modern automation architectures. It is suitable for continuous pressure monitoring and process control.
Flush pressure measurement
0...100 inHâ‚‚O factory range
Scalable 4...20 mA output
IO-Link communication
Fine low-pressure resolution
Stainless-steel construction
Hygienic process design
Digital parameterisation
Process-value transmission
Diagnostic capabilities
Compact installation
Industrial automation compatibility
Low-pressure process monitoring
Food processing equipment
Beverage production systems
Filling machines
Packaging machinery
Process piping
Tank pressure monitoring
Pneumatic process monitoring
PLC automation
Machine condition monitoring
Hygienic production lines
Industrial instrumentation
| Specification | PM1108 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1108 |
| Product family | PM11 |
| Factory range | 0...100 inHâ‚‚O |
| Full range | -5...100 inHâ‚‚O |
| IO-Link range | -10...105.4 inHâ‚‚O |
| IO-Link resolution | 0.02 inHâ‚‚O |
| Overload pressure | 73 psi |
| Burst pressure | 435 psi |
| Output | 4...20 mA |
| Communication | IO-Link |
| Output configuration | Scalable |
| Pressure type | Relative |
| Measuring principle | Electronic |
| Process design | Flush |
| Housing | Stainless steel |
| Application area | Hygienic/process |
| Installation | Process connection |
| Parameterisation | IO-Link |
| Diagnostics | Digital |
| Signal | Analogue/digital |
| Pressure monitoring | Continuous |
| Automation | PLC compatible |
| Typical environment | Industrial |
| Typical application | Low-pressure measurement |
