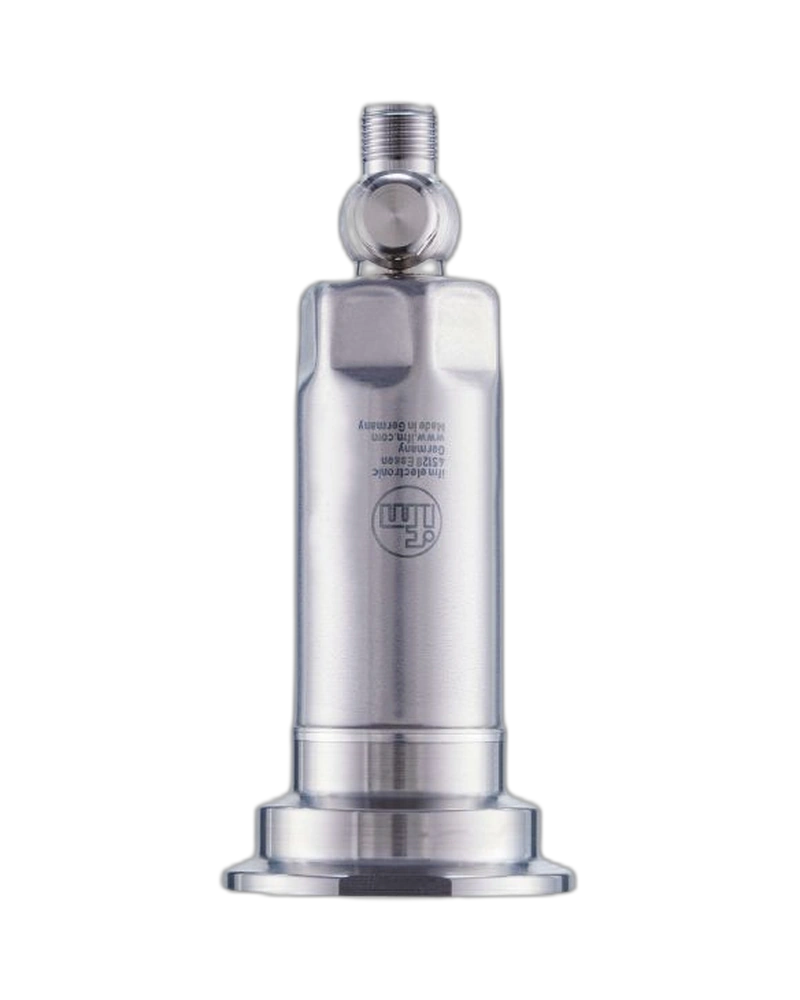

The IFM PM1107 is a flush pressure sensor designed for reliable pressure monitoring in hygienic and process applications. It provides accurate pressure measurement with a compact stainless-steel construction. The sensor supports scalable 4...20 mA analogue output and IO-Link communication for modern automation systems. Its flush sensing design helps reduce contamination and supports easy cleaning. PM1107 is suitable for applications requiring dependable low-pressure measurement and digital diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PM1107 is designed for low-pressure measurement where stable and repeatable readings are important. Its factory default measuring range is 0...14.5 psi, with an extended full measuring range available for flexible configuration. IO-Link provides additional digital parameterisation and process data access. The sensor is suitable for monitoring pressure in process lines, equipment and hygienic machinery. Its overload capability provides additional protection against pressure peaks during operation.
The sensor uses a flush pressure-sensing arrangement intended for hygienic process environments. Stainless-steel construction provides mechanical robustness and corrosion resistance for industrial installations. The design supports reliable operation in demanding cleaning and production conditions. Its compact form factor allows integration where installation space is limited. The sensor is designed for continuous industrial pressure monitoring and automation feedback.
PM1107 can be integrated into PLC and control systems through analogue and IO-Link interfaces. IO-Link enables digital communication, parameterisation and additional diagnostic information. It can be used for monitoring low pressure in process equipment and production systems. The sensor is appropriate for food, beverage and hygienic manufacturing environments. It can also support machine monitoring and process-control applications.
Flush pressure-sensing design
0...14.5 psi factory default range
Scalable 4...20 mA analogue output
IO-Link communication
Low-pressure measurement capability
Compact stainless-steel construction
Digital parameterisation
Process-value monitoring
Diagnostic data through IO-Link
Suitable for hygienic applications
Overload protection
Industrial automation integration
Hygienic process pressure monitoring
Food and beverage equipment
Process piping
Liquid pressure monitoring
Machine pressure monitoring
Low-pressure process control
Filling and dosing equipment
Production machinery
PLC-based automation
Condition monitoring
Process-line monitoring
Industrial instrumentation
| Specification | PM1107 |
|---|---|
| Product type | Flush pressure sensor |
| Model | PM1107 |
| Product family | PM11 |
| Factory range | 0...14.5 psi |
| Full range | -0.73...14.5 psi |
| IO-Link range | -1.45...15.23 psi |
| IO-Link resolution | 0.003 psi |
| Overload pressure | 145 psi |
| Burst pressure | 435 psi |
| Output | 4...20 mA |
| Output type | Scalable analogue |
| Communication | IO-Link |
| Measuring principle | Electronic pressure measurement |
| Process design | Flush-mounted |
| Application | Hygienic/process |
| Housing | Stainless steel |
| Process connection | Integrated hygienic process connection |
| Installation | Process-line installation |
| Parameterisation | IO-Link |
| Diagnostics | IO-Link supported |
| Pressure type | Relative pressure |
| Signal transmission | Analogue/digital |
| Mounting | Process connection |
| Operating environment | Industrial |
| Typical use | Low-pressure monitoring |
