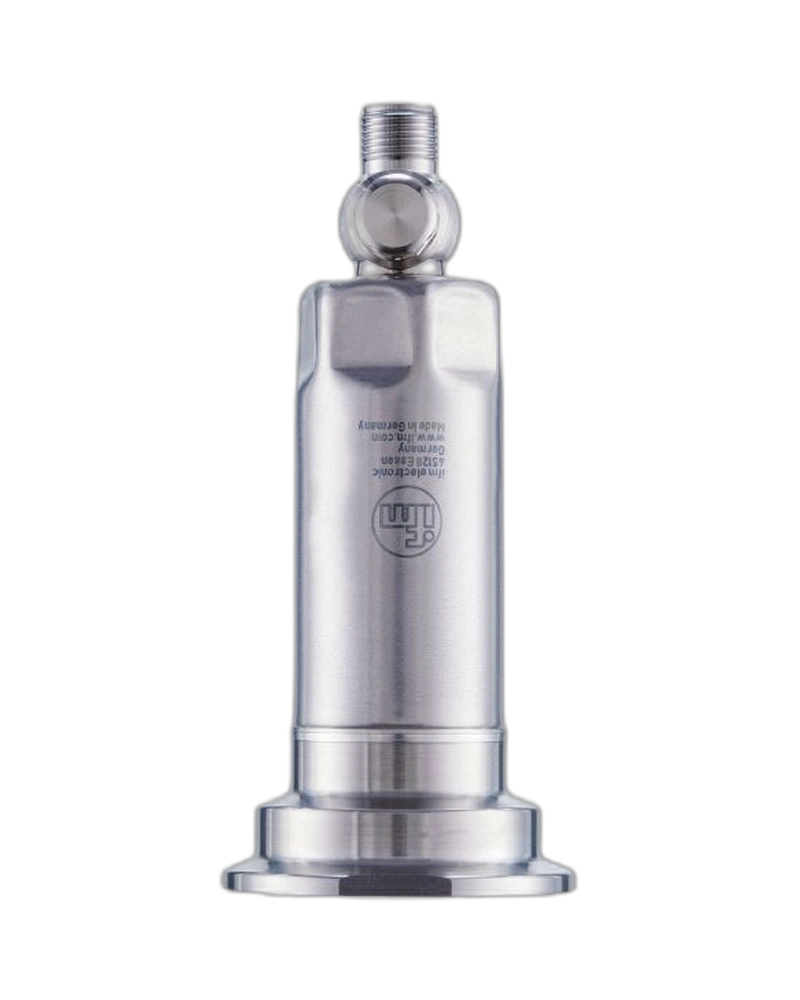

The IFM PM1104 is a flush pressure sensor designed for reliable pressure measurement in hygienic and demanding process applications. It features a robust stainless-steel housing and a hygienic flush design that helps minimize dead spaces at the measuring point. The sensor measures relative pressure and vacuum across a range of -1 to 10 bar, making it suitable for a wide variety of process conditions. It provides a scalable 4...20 mA analogue output together with IO-Link communication for convenient integration into automation systems. The PM1104 is particularly suitable for food and beverage applications requiring high temperature resistance, reliable measurement and resistance to intensive cleaning processes.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PM1104 is designed for hygienic pressure measurement where a clean and unobstructed process interface is important. Its flush measuring design helps reduce dead spaces around the pressure-sensing surface, supporting applications where process cleanliness is essential. The construction is particularly suitable for food and beverage processing equipment and other sanitary process installations. The sensor is designed to withstand intensive cleaning conditions and aggressive cleaning agents used in industrial environments. This combination of flush construction and robust materials allows dependable pressure monitoring in demanding automated processes.
The PM1104 provides a measuring range of -1...10 bar, corresponding to approximately -14.5...145 psi, -100...1000 kPa or -0.1...1 MPa. This range allows the sensor to monitor both vacuum conditions and positive process pressure within a single device. The analogue start and end points can be configured within specified limits to adapt the output signal to different process requirements. The analogue output is scalable in fine increments, allowing suitable measurement spans to be selected during commissioning. This flexibility makes the sensor useful for different pressure monitoring and control applications.
The PM1104 incorporates a robust stainless-steel housing intended for demanding food and beverage and process environments. Its construction is designed to tolerate high-pressure cleaning and aggressive cleaning agents, helping maintain reliable operation during regular sanitation procedures. The sensor also offers high temperature resistance, with the specified medium temperature range extending up to 150 °C. High protection ratings of IP67, IP68 and IP69K support reliable operation in environments exposed to moisture, water jets and intensive cleaning. These characteristics make the sensor well suited for hygienic industrial installations.
The PM1104 combines a scalable 4...20 mA analogue output with IO-Link communication for flexible industrial integration. The analogue signal can be configured according to the required pressure measurement span, while IO-Link provides digital communication for parameterization and process data exchange. The sensor includes one analogue output and one digital output, with the digital channel supporting IO-Link. It operates from 18...30 V DC and incorporates reverse-polarity, short-circuit and overload protection. This makes the PM1104 suitable for modern automation architectures where both conventional analogue signals and digital sensor communication are required.
Hygienic flush-mounted pressure measuring design
Measuring range from -1 to 10 bar
Suitable for relative pressure and vacuum measurement
Scalable 4...20 mA analogue current output
IO-Link communication for parameterization and diagnostics
Robust stainless-steel housing
Designed for food and beverage process applications
High resistance to high-pressure cleaning
Resistant to aggressive cleaning agents
High medium temperature capability up to 150 °C
IP67, IP68 and IP69K protection ratings
Clamp DN25...DN40 process connection
High measurement repeatability
Integrated reverse-polarity protection
Short-circuit and overload protection
Integrated watchdog function
Food and beverage processing equipment
Hygienic pressure monitoring systems
Process automation installations
Liquid processing and transfer systems
Pressure monitoring in filling machinery
Pump and process-line monitoring
Vacuum monitoring applications
Dosing and batching equipment
Sanitary process skids
Automated production systems
CIP-compatible process installations
Industrial fluid pressure monitoring
| Specification | PM1104 Details |
|---|---|
| Product Type | Flush pressure sensor |
| Manufacturer | IFM |
| Model | PM1104 |
| Order Code | PM-010-REZ01-E-ZVG/US |
| Product Family | PM |
| Sensor Category | Pressure sensor |
| Application | Flush transmitter for process technology |
| Measuring Principle | Electronic pressure measurement |
| Measuring Cell | Flush pressure measuring cell |
| Pressure Type | Relative pressure / vacuum |
| Measuring Range | -1...10 bar |
| Measuring Range | -14.5...145 psi |
| Measuring Range | -100...1000 kPa |
| Measuring Range | -0.1...1 MPa |
| Analogue Output | 4...20 mA, scalable |
| Digital Communication | IO-Link |
| Number of Outputs | 1 analogue + 1 digital |
| Analogue Start Point | -1...8 bar |
| Analogue End Point | 1...10 bar |
| Output Setting Increment | 0.005 bar |
| Factory Analogue Setting | ASP 0 bar / AEP 10 bar |
| Operating Voltage | 18...30 V DC |
| 2-Wire Current Consumption | 3.5...21.5 mA |
| 3-Wire Current Consumption | <45 mA |
| Power-On Delay, 2-Wire | 1 s |
| Power-On Delay, 3-Wire | 0.5 s |
| Maximum Analogue Load | 700 Ω at 24 V DC |
| Process Connection | Clamp DN25...DN40 |
| Process Connection Size | 1...1.5 inch |
| Connection Standard | DIN 32676 / ISO 2852 |
| Electrical Connection | Connector |
| Housing Material | Stainless steel |
| Medium Temperature | -25...150 °C |
| Ambient Temperature | -25...80 °C |
| Storage Temperature | -40...100 °C |
| Protection Rating | IP67 / IP68 / IP69K |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Integrated Watchdog | Yes |
| Minimum Insulation Resistance | 100 MΩ at 500 V DC |
| Repeatability | < ±0.1% of span |
| Characteristics Deviation | < ±0.2% of span |
| Linearity Deviation | < ±0.15% of span |
| Hysteresis Deviation | < ±0.15% of span |
| Long-Term Stability | < ±0.1% of span/year |
| Temperature Coefficient | Model-dependent across specified temperature ranges |
| Main Installation Type | Flush process installation |
| Main Application Environment | Hygienic industrial process environment |
