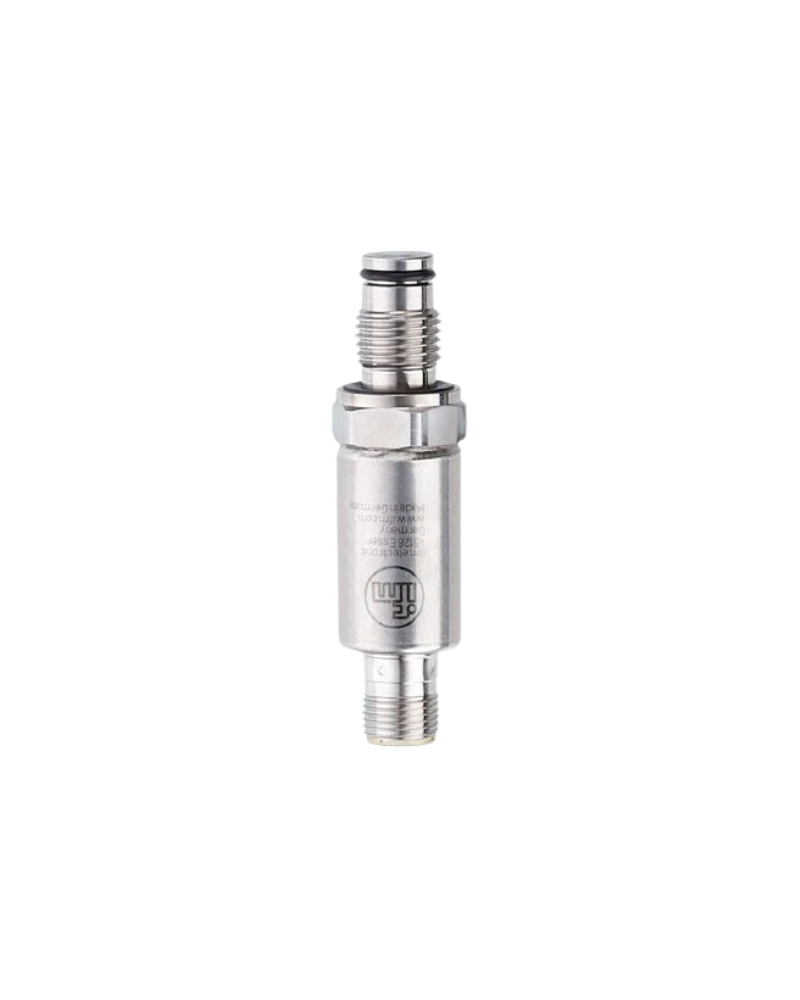

The IFM PL5412 is a flush pressure transmitter designed for reliable relative pressure measurement in demanding industrial and mobile applications. It provides a 0 to 160 bar measuring range with a precise 4 to 20 mA analogue output for direct integration with PLCs and control systems. Its thin-film measuring cell with diaphragm seal technology is suitable for liquids, gases, viscous media and liquids containing suspended particles. The compact stainless-steel housing offers high resistance to shock, vibration and harsh operating conditions. With IP67 and IP69K protection, the PL5412 delivers dependable pressure measurement where space is limited and robust construction is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PL5412 is designed as a flush pressure transmitter for industrial applications where the measuring element needs to be positioned close to the process medium. Its thin-film measuring cell uses diaphragm seal technology to support reliable pressure detection in different types of industrial media. The transmitter measures relative pressure over a 0 to 160 bar range and provides a linear 4 to 20 mA output signal. This configuration makes the device suitable for continuous pressure monitoring and integration into automated control systems. The flush-mount design is particularly useful for compact machinery and installations with restricted mounting space.
The PL5412 supports a measuring range of 0 to 160 bar, 0 to 2320 psi and 0 to 16 MPa, allowing it to handle high-pressure industrial applications. It has a static pressure rating of 400 bar and a minimum bursting pressure of 1100 bar, providing substantial pressure resistance. The transmitter also offers vacuum resistance down to -1000 mbar, extending its suitability to systems where pressure conditions can vary significantly. Repeatability is specified at less than ±0.05 % of span, while linearity deviation is less than ±0.1 % BFSL or ±0.2 % LS.
The transmitter uses a compact cylindrical housing manufactured from stainless steel 630/17-4 PH, stainless steel 316L and PEI materials. Wetted components are made from stainless steel and FKM, helping the device withstand demanding industrial media. The PL5412 operates in ambient temperatures from -25 to 90 °C, while the medium temperature range is -20 to 90 °C. IP67 and IP69K protection provides resistance against dust, water and high-pressure cleaning environments. Its resistance to 50 g shock and 20 g vibration from 10 to 2000 Hz makes it appropriate for machinery and mobile applications.
The PL5412 operates from an 8.5 to 36 V DC supply and provides one 4 to 20 mA analogue current output. Its M12 A-coded connector offers a standardized electrical interface for industrial automation systems. Reverse polarity, short-circuit and overload protection improve operational reliability during installation and operation. The analogue output has a step response time of approximately 2 ms, allowing pressure changes to be transmitted rapidly to connected controllers. The transmitter can therefore be integrated with PLC analogue input modules, process controllers, monitoring equipment and industrial data acquisition systems.
0 to 160 bar relative pressure measuring range
4 to 20 mA analogue current output
Thin-film measuring cell with diaphragm seal technology
Flush-mountable design for industrial applications
G 1/4 external threaded process connection
Compact cylindrical stainless-steel housing
IP67 and IP69K protection rating
High resistance to shock and vibration
Excellent repeatability with low linearity deviation
400 bar static pressure rating
1100 bar minimum bursting pressure
Vacuum resistance down to -1000 mbar
Fast 2 ms analogue output response
8.5 to 36 V DC operating voltage
Reverse polarity protection
Short-circuit protection
Overload protection
Minimum 60 million pressure cycles at 1.2 times nominal pressure
M12 A-coded electrical connection
Suitable for viscous media and liquids containing suspended particles
Industrial hydraulic pressure monitoring
Industrial pneumatic pressure monitoring
Mobile machinery pressure measurement
Machine and equipment pressure monitoring
Process pressure monitoring
Hydraulic system monitoring
Pressure monitoring of liquids and gases
Measurement of viscous industrial media
Applications involving suspended-particle liquids
Automated manufacturing machinery
PLC-based pressure monitoring systems
Industrial process control systems
Compact machinery installations
High-pressure equipment monitoring
Applications exposed to mechanical vibration and shock
| Specification | Details |
|---|---|
| Product Model | PL5412 |
| Product Type | Flush pressure transmitter |
| Order Code | PL-160-SEG14-A-ZVG/US/ /W |
| Brand | IFM |
| Product Family | PL pressure transmitters |
| Pressure Type | Relative pressure |
| Measuring Principle | Thin-film measuring cell with diaphragm seal technique |
| Measuring Range | 0...160 bar |
| Measuring Range | 0...2320 psi |
| Measuring Range | 0...16 MPa |
| Number of Analogue Outputs | 1 |
| Output Signal | Analogue signal |
| Analogue Current Output | 4...20 mA |
| Operating Voltage | 8.5...36 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Power-On Delay Time | 0.1 s |
| Process Connection | G 1/4 external thread |
| Process Connection Standard | DIN EN ISO 1179-2 |
| Medium | Liquids and gases |
| Suitable Media | Viscous media and liquids with suspended particles |
| Medium Temperature | -20...90 °C |
| Ambient Temperature | -25...90 °C |
| Storage Temperature | -25...100 °C |
| Pressure Rating | 400 bar / 5800 psi / 40 MPa |
| Minimum Bursting Pressure | 1100 bar / 15950 psi / 110 MPa |
| Vacuum Resistance | -1000 mbar / -0.1 MPa |
| Repeatability | < ±0.05 % of span |
| Characteristics Deviation | < ±0.5 % of span |
| Linearity Deviation | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis Deviation | < ±0.2 % of span |
| Long-Term Stability | < ±0.1 % of span per 6 months |
| Zero-Point Temperature Coefficient | < ±0.2 % of span / 10 K |
| Span Temperature Coefficient | < ±0.15 % of span / 10 K |
| Analogue Output Response Time | 2 ms |
| Protection Rating | IP67 / IP69K |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10...2000 Hz |
| Housing Design | Cylindrical |
| Housing Diameter | 19 mm |
| Housing Length | 73.8 mm |
| Weight | 65 g |
| Housing Materials | Stainless steel 630 / 17-4 PH, stainless steel 316L, PEI |
| Wetted Materials | Stainless steel 630 / 17-4 PH, stainless steel 316L, FKM |
| Process Seal | FKM |
| Recommended Tightening Torque | 25...35 Nm |
| Pressure Transmission Fluid | NEOBEE, food-grade and FDA compliant |
| Electrical Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Minimum Pressure Cycles | 60 million at 1.2 × nominal pressure |
| Minimum Insulation Resistance | 100 MΩ at 500 V DC |
| EMC Standards | DIN EN 61000-6-2, DIN EN 61000-6-3 |
| UL Approval | J046 / E174189 |
| MTTF | 787 years |
| Pack Quantity | 1 piece |
