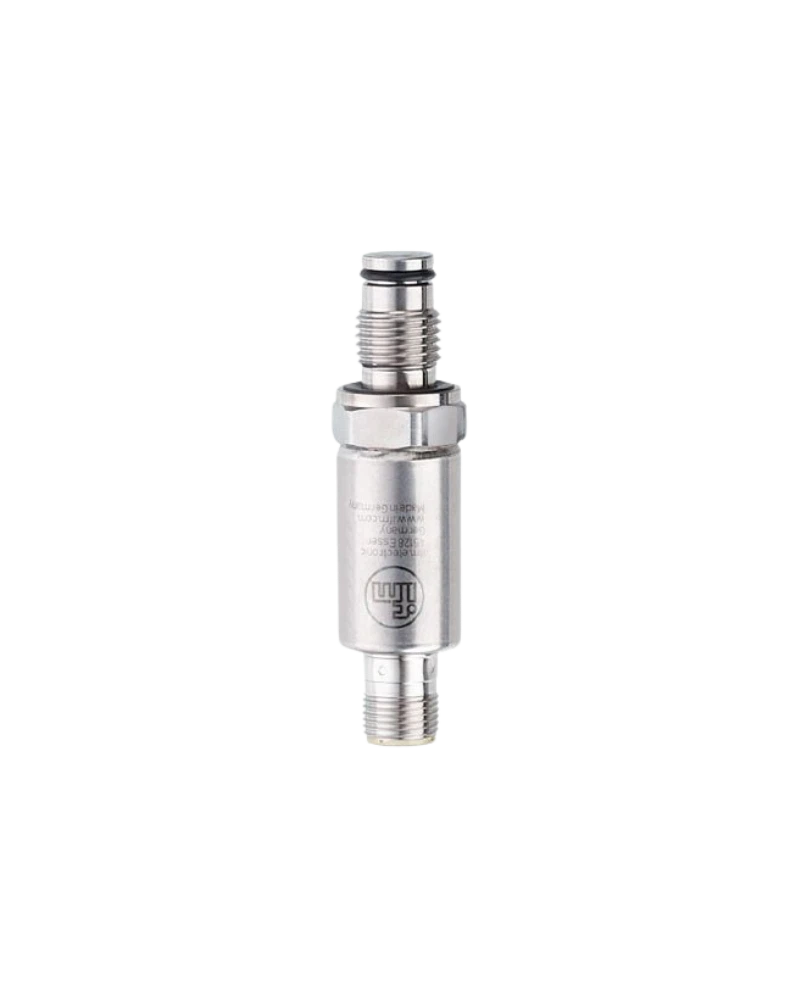

The IFM PL5402 is a compact flush pressure transmitter designed for reliable relative pressure measurement in industrial and mobile applications. It provides a 0 to 100 bar measuring range with a 4 to 20 mA analogue output for continuous pressure transmission to PLCs and automation controllers. Its thin-film measuring cell with diaphragm seal technology is suitable for liquids, gases, viscous media and liquids containing suspended particles. The robust stainless-steel housing provides high resistance to mechanical shock and vibration while maintaining reliable measurement performance. With IP67 and IP69K protection, the PL5402 is well suited for demanding installations where compact dimensions and dependable pressure monitoring are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PL5402 is designed for flush mounting in industrial pressure measurement systems where the sensing element can be positioned close to the process medium. Its thin-film measuring cell with diaphragm seal technology enables reliable detection of relative system pressure in different industrial media. The transmitter offers a measuring range of 0 to 100 bar, equivalent to 0 to 1450 psi or 0 to 10 MPa. Its flush design makes it particularly useful for applications involving viscous media and liquids containing suspended particles. The compact construction also allows installation in systems where mounting space is restricted.
The PL5402 provides a continuous 4 to 20 mA analogue current output, allowing the measured pressure to be transmitted directly to industrial control systems. Its specified repeatability is better than ±0.05 % of span, while the linearity deviation is below ±0.1 % BFSL or ±0.2 % LS. The transmitter has a characteristic deviation below ±0.5 % of span and a hysteresis deviation below ±0.2 %. With a fast analogue output step response time of approximately 2 ms, the sensor can respond rapidly to changes in system pressure.
The PL5402 is built with a compact stainless-steel housing intended for demanding industrial environments. It provides IP67 and IP69K protection and can operate in ambient temperatures from -25 to 90 °C. The permitted medium temperature is -20 to 90 °C, making it suitable for a broad range of industrial processes. The transmitter is tested for shock resistance up to 50 g for 11 ms and vibration resistance up to 20 g from 10 to 2000 Hz. Its pressure rating is 250 bar, with a minimum bursting pressure of 1000 bar, providing strong mechanical resistance for high-pressure applications.
The PL5402 operates from an 8.5 to 36 V DC supply and uses an M12 connector with A coding for electrical connection. The G 1/4 external threaded process connection supports straightforward integration with compatible pressure systems. The housing uses stainless steel 17-4 PH/630, 316L stainless steel and PEI, while wetted parts use stainless steel and FKM materials. The device has a compact approximately 19 mm diameter housing and a length of 73.8 mm, making it suitable for restricted installation spaces. Reverse polarity, short-circuit and overload protection further support reliable operation in industrial automation systems.
0 to 100 bar relative pressure measuring range
4 to 20 mA analogue current output
Thin-film measuring cell with diaphragm seal technology
Flush-mountable construction
G 1/4 external threaded process connection
Compact stainless-steel housing
IP67 and IP69K protection rating
High shock resistance up to 50 g
High vibration resistance up to 20 g
250 bar static pressure rating
1000 bar minimum bursting pressure
Fast 2 ms analogue output response
Excellent repeatability below ±0.05 % of span
Low linearity deviation
Low hysteresis deviation
8.5 to 36 V DC operating voltage
Reverse polarity protection
Short-circuit protection
Overload protection
Minimum 60 million pressure cycles at 1.2 times nominal pressure
M12 A-coded electrical connection
Suitable for viscous media
Suitable for liquids containing suspended particles
Compact design for restricted installation spaces
Industrial system pressure monitoring
Mobile machinery pressure monitoring
Hydraulic pressure measurement
Pneumatic system pressure monitoring
Machine and equipment pressure measurement
Process pressure monitoring
Measurement of liquids and gases
Measurement of viscous industrial media
Measurement of liquids containing suspended particles
Automated manufacturing machinery
Industrial process control systems
PLC-based pressure monitoring
Hydraulic equipment monitoring
Mobile hydraulic systems
Compact pressure measurement installations
High-pressure machinery and equipment
| Specification | Details |
|---|---|
| Product Model | PL5402 |
| Product Type | Flush pressure transmitter |
| Manufacturer | IFM |
| Order Code | PL-100-SEG14-A-ZVG/US/ /W |
| Product Family | PL54 pressure transmitters |
| Pressure Type | Relative pressure |
| Measuring Principle | Thin-film measuring cell with diaphragm seal technique |
| Measuring Range | 0...100 bar |
| Measuring Range | 0...1450 psi |
| Measuring Range | 0...10 MPa |
| Number of Analogue Outputs | 1 |
| Output Signal | Analogue signal |
| Analogue Current Output | 4...20 mA |
| Operating Voltage | 8.5...36 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Power-On Delay Time | 0.1 s |
| Process Connection | G 1/4 external thread |
| Process Connection Standard | DIN EN ISO 1179-2 |
| Process Connection Seal | FKM |
| Medium | Liquids and gases |
| Suitable Media | Viscous media and liquids with suspended particles |
| Medium Temperature | -20...90 °C |
| Ambient Temperature | -25...90 °C |
| Storage Temperature | -25...100 °C |
| Pressure Rating | 250 bar / 3626 psi / 25 MPa |
| Minimum Bursting Pressure | 1000 bar / 14500 psi / 100 MPa |
| Vacuum Resistance | -1000 mbar / -0.1 MPa |
| Repeatability | < ±0.05 % of span |
| Characteristics Deviation | < ±0.5 % of span |
| Linearity Deviation | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis Deviation | < ±0.2 % of span |
| Long-Term Stability | < ±0.1 % of span per 6 months |
| Zero-Point Temperature Coefficient | < ±0.25 % of span / 10 K |
| Span Temperature Coefficient | < ±0.15 % of span / 10 K |
| Analogue Output Response Time | 2 ms |
| Protection Rating | IP67 / IP69K |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10...2000 Hz |
| Housing Design | Compact cylindrical |
| Housing Diameter | 19 mm |
| Housing Length | 73.8 mm |
| Weight | Approximately 66 g |
| Housing Materials | 17-4 PH / 630 stainless steel, 316L stainless steel, PEI |
| Wetted Materials | 17-4 PH / 630 stainless steel, 316L stainless steel, FKM |
| Recommended Tightening Torque | 25...35 Nm |
| Pressure Transmission Fluid | NEOBEE, food-grade and FDA compliant |
| Electrical Connection | 1 × M12 connector |
| Connector Coding | A-coded |
| Minimum Pressure Cycles | 60 million at 1.2 × nominal pressure |
| Minimum Insulation Resistance | 100 MΩ at 500 V DC |
| EMC Standards | DIN EN 61000-6-2 / DIN EN 61000-6-3 |
| Shock Test Standard | DIN EN 60068-2-27 |
| Vibration Test Standard | DIN EN 60068-2-6 |
| UL Approval | J045 / E174189 |
| MTTF | 787 years |
| Pack Quantity | 1 piece |
