The nominal sensing distance is 8 mm.
The nominal sensing distance is 8 mm. A switching frequency of 300 Hz.
The thermal drift Sr is < 10%, with repeat accuracy of 5% (UB 24V Ta=23 °C ±5 °C).
The operating voltage is 10 - 30 VDC, with load current of ≤ 100 mA. No-load supply current is ≤ 30 mA and leakage current is limited to ≤ 10 µA.
Maximum ripple is ≤10%. Inductive load protection is Yes. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP 67.
The housing is Nickel-plated brass, while the active head uses PBT. Dimensions are M18 x 1 / L = 68 mm and the connection is 2 m PVC Cable.
Weight is 130 g.
Tightening torque is 25 nm.
The operating temperature range is -25 °C…+70 °C.

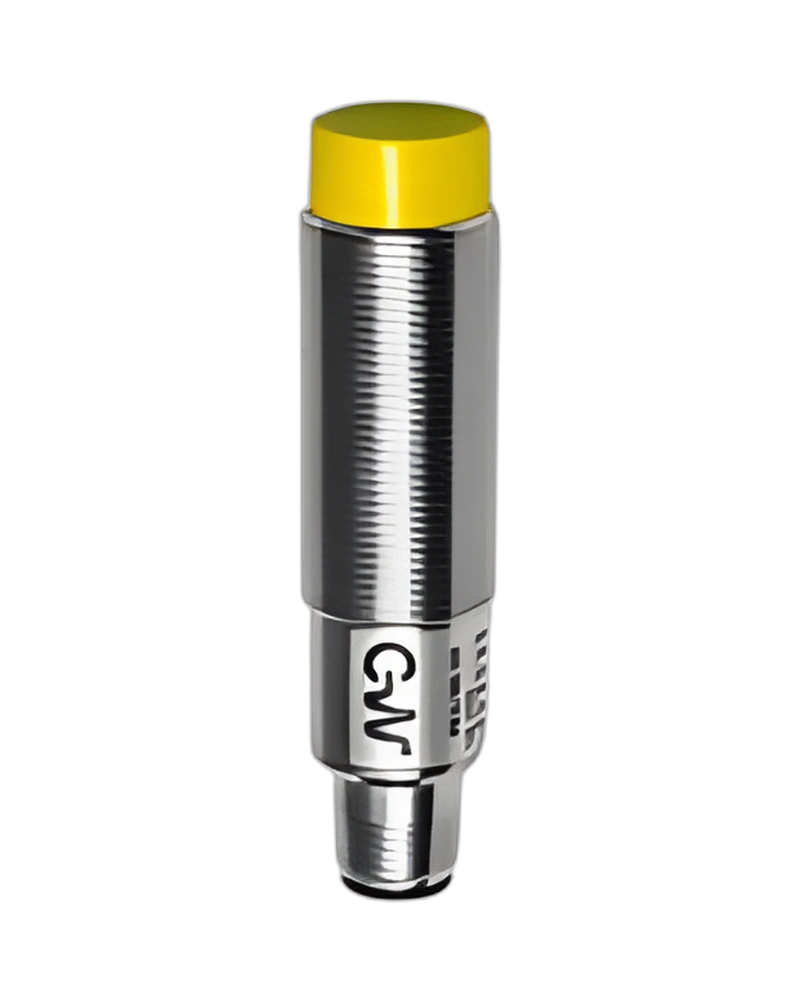

The manufacturer part number is PK3/00-2A. This model is manufactured by M.D. Micro Detectors. Installation is Unshielded.
Unshielded is Operating temperature:. Time to availability is 100 ms.
For electrical integration, it provides operating voltage 10 - 30 VDC, switching frequency 300 Hz. The physical configuration includes Nickel-plated brass housing, dimensions M18 x 1 / L = 68 mm, 2 m PVC Cable connection. It is rated IP 67 for an operating temperature range of -25 °C…+70 °C.
| Specification | Details |
|---|---|
| Model | PK3/00-2A |
| Manufacturer part number | PK3/00-2A |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 300 Hz |
| Weight | 130 g |
| Active head material | PBT |
| Housing material | Nickel-plated brass |
| Tightening torque | 25 nm |
| Installation | Unshielded |
| Operating temperature | -25 °C…+70 °C |
| Dimensions | M18 x 1 / L = 68 mm |
| Connection | 2 m PVC Cable |
| Hysteresis | 1 … 20% |
| Nominal sensing distance | 8 mm |
| Operating distance | 0…6,5 mm |
| Standard target | 24x24 mm FE360 |
| Thermal drift Sr | < 10% |
| Repeat accuracy | 5% (UB 24V Ta=23 °C ±5 °C) |
| Degree of protection | IP 67 |
| Time to availability | 100 ms |
| Inductive load protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10 - 30 VDC |
| Load current | ≤ 100 mA |
| No-load supply current | ≤ 30 mA |
| Leakage current | ≤ 10 µA |
