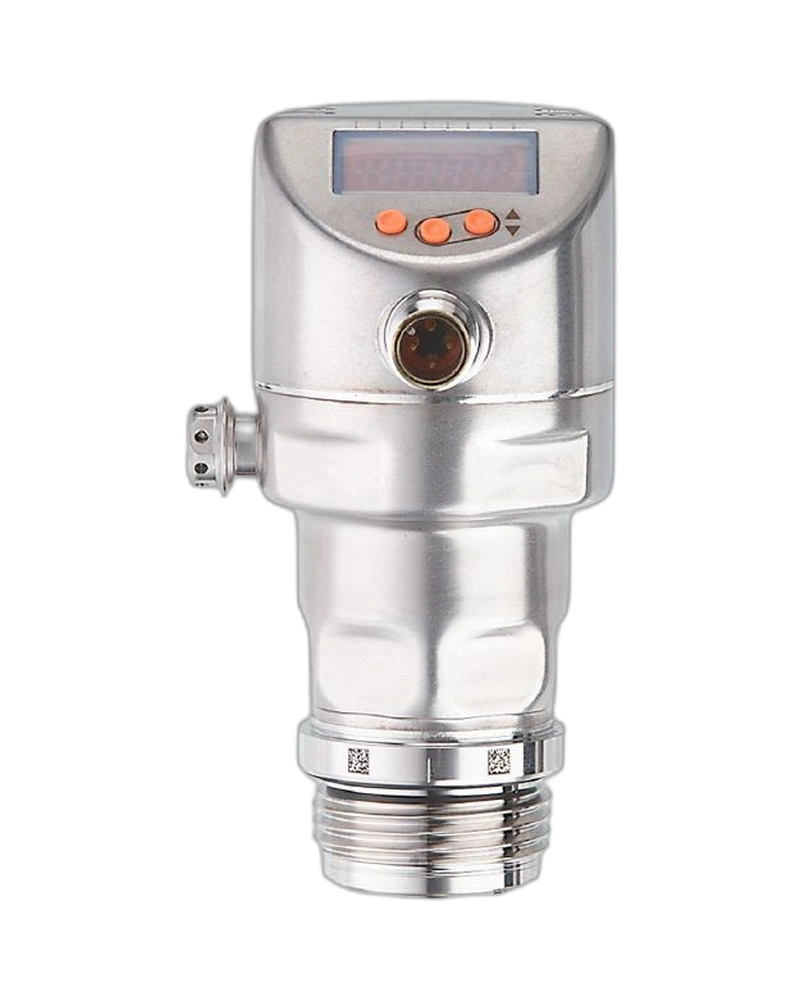

The IFM PI1818 is a low-pressure flush sensor with integrated display designed for accurate monitoring of sensitive process pressure conditions. Its hygienic flush design and robust construction support demanding applications. Analogue, digital and IO-Link communication provide flexible integration with automation systems, making it suitable for food processing, beverage production, fluid handling and hygienic process equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PI1818 is designed for sensitive low-pressure measurement with local display functionality. Its flush process interface supports hygienic applications where cleanability and reliable measurement are important.
The PI1818 provides a -50...400 mbar measuring range. It combines an integrated display with analogue and digital outputs and IO-Link communication. Configurable switching functions allow the sensor to be used directly for pressure-based process control.
The PI1818 provides clear local pressure indication while supporting digital automation. Its sensitive pressure range allows small changes to be monitored, while the flush construction supports cleanable installations. IO-Link provides convenient parameterisation and diagnostics.
The sensor is suitable for low-pressure monitoring in food processing, beverage equipment, fluid handling, filling systems and hygienic machinery. It is useful where accurate low-pressure measurement and local indication are required.
Integrated display
-50...400 mbar measuring range
Analogue output
Two digital outputs
IO-Link communication
Hygienic flush construction
Stainless-steel housing
Sensitive pressure measurement
Configurable switching outputs
Automation compatibility
Low-pressure monitoring
Food processing
Beverage systems
Fluid handling
Filling equipment
Hygienic machinery
Process automation
Pressure control
Industrial monitoring
| Specification | Details |
|---|---|
| Product code | PI1818 |
| Model | PI-,40BREA01-MFRKG/US/ /P |
| Product type | Flush pressure sensor with display |
| Brand | IFM |
| Measuring range | -50...400 mbar |
| Analogue output | 4...20 mA |
| Digital outputs | 2 |
| Communication | IO-Link |
| Display | Integrated |
| Design | Hygienic flush |
