The nominal sensing distance is 8 mm.
The nominal sensing distance is 8 mm. A switching frequency of 2 kHz.
The thermal drift Sr is < 10%, with repeat accuracy of 5% (UB 24V Ta=23 °C ±5 °C).
The output type is PNP. The output function is NO+NC.
The operating voltage is 10 - 30 VDC, with load current of ≤ 200 mA. No-load supply current is ≤ 15 mA and leakage current is limited to ≤ 15 µA.
Maximum ripple is ≤10%. Inductive load protection is Yes. Short-circuit protection is Yes (Automatic reset). Reverse polarity protection is Yes.

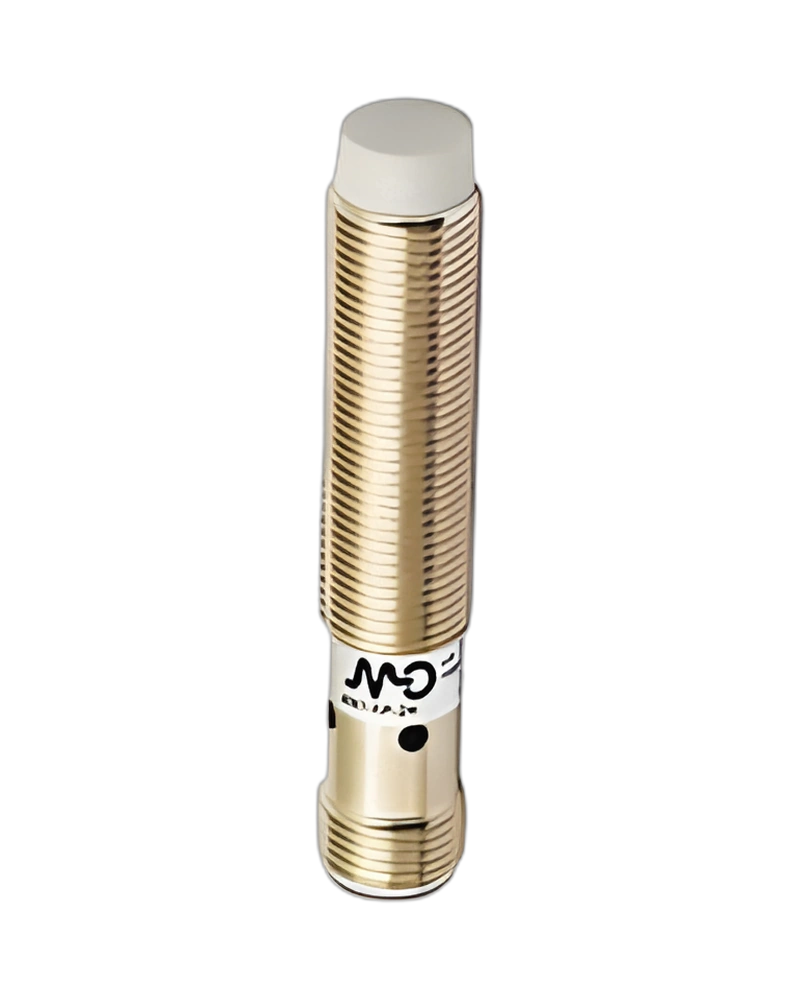

The housing is Stainless steel AISI316L, while the active head uses PPS. Dimensions are M12 x 1 / L = 64,6 mm and the connection is M12 Connector.
Weight is 30 g.
Tightening torque is 25 nm.
The manufacturer part number is PFM1/BP-4H. This model is manufactured by M.D. Micro Detectors. Installation is Unshielded.
Unshielded is Operating temperature:. Time to availability is 50 ms.
For electrical integration, it provides output type PNP, operating voltage 10 - 30 VDC, switching frequency 2 kHz. The physical configuration includes Stainless steel AISI316L housing, dimensions M12 x 1 / L = 64,6 mm, M12 Connector connection.
| Specification | Details |
|---|---|
| Model | PFM1/BP-4H |
| Manufacturer part number | PFM1/BP-4H |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Output function | NO+NC |
| Switching frequency | 2 kHz |
| Weight | 30 g |
| Active head material | PPS |
| Housing material | Stainless steel AISI316L |
| Tightening torque | 25 nm |
| Installation | Unshielded |
| Dimensions | M12 x 1 / L = 64,6 mm |
| Connection | M12 Connector |
| Hysteresis | 1 … 20% |
| Nominal sensing distance | 8 mm |
| Operating distance | 0…6,5 mm |
| Standard target | 24x24 mm FE360 |
| Thermal drift Sr | < 10% |
| Repeat accuracy | 5% (UB 24V Ta=23 °C ±5 °C) |
| Time to availability | 50 ms |
| Inductive load protection | Yes |
| Short-circuit protection | Yes (Automatic reset) |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10 - 30 VDC |
| Load current | ≤ 200 mA |
| No-load supply current | ≤ 15 mA |
| Leakage current | ≤ 15 µA |
