Continuous Valve Position Monitoring

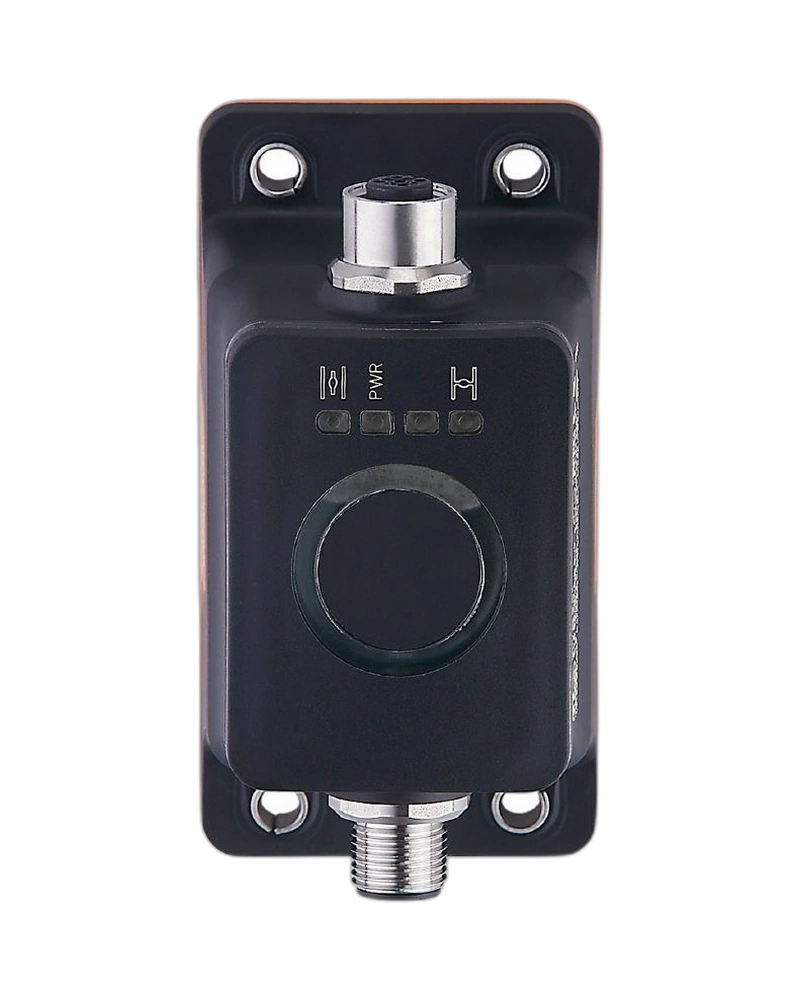

The MVQ201 continuously detects the rotary position of the connected valve actuator. Its 360° detection zone provides complete angular monitoring of the actuator movement. Position detection has ±1° accuracy, 0.1° resolution and 0.1° repeatability. The sensor can therefore provide detailed feedback rather than only a basic open or closed signal. This makes it suitable for automated valve monitoring and control systems.

Integrated Solenoid Control

The MVQ201 combines valve position feedback with direct solenoid-valve control. Two solenoid outputs can control compatible mono-stable or bi-stable valves. Each solenoid output supports up to 200 mA and includes short-circuit and overload protection. This arrangement reduces the amount of separate wiring required between the control system and local valve. It is especially useful for decentralised valve automation installations.

IO-Link and Commissioning

IO-Link provides parameterisation, process-data communication and diagnostic information through the sensor. The device uses COM2 communication at 38.4 kBaud. Automatic teach-in and PLC teach-in modes simplify configuration of the valve's open and closed positions. The sensor also provides a flashing function for easier device identification during commissioning. These functions make the MVQ201 suitable for digitally connected process automation systems.

Key Features

Continuous rotary valve position feedback

360° absolute angle detection

±1° position accuracy

0.1° position resolution

0.1° repeatability

IO-Link communication

COM2 38.4 kBaud

PNP electrical design

2 configurable NO/NC switching outputs

1 digital input

2 solenoid-valve outputs

200 mA solenoid output current

10…30 V DC supply

Short-circuit protection

Overload protection

Reverse-polarity protection

Two M12 connectors

95 × 50 × 57 mm housing

Automatic teach-in

PLC teach-in

Device identification flashing

PA rectangular housing

Industrial valve monitoring

Applications

Rotary valve position feedback

Ball valve monitoring

Butterfly valve monitoring

Pneumatic actuator monitoring

Solenoid valve control

Process automation

Chemical processing

Food and beverage machinery

Pharmaceutical equipment

Industrial valve systems

Factory automation

Decentralised automation

Reduced Wiring

The MVQ201 combines position feedback and solenoid control in one device. Its two M12 interfaces allow direct connection to the IO-Link network and local valve hardware. This reduces the need to route separate control cables back to a central cabinet. The integrated outputs also simplify local actuator control. The result is a cleaner and more decentralised valve installation.

Maintenance and Commissioning

Automatic and PLC teach-in functions reduce manual configuration work during commissioning. The device can learn the valve's open and closed positions through defined procedures. IO-Link provides access to device parameters and operating information. The flashing identification function helps technicians locate the correct sensor on equipment. These functions support faster commissioning and easier service operations.
